$275.99
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
- Model: USW-WAN
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

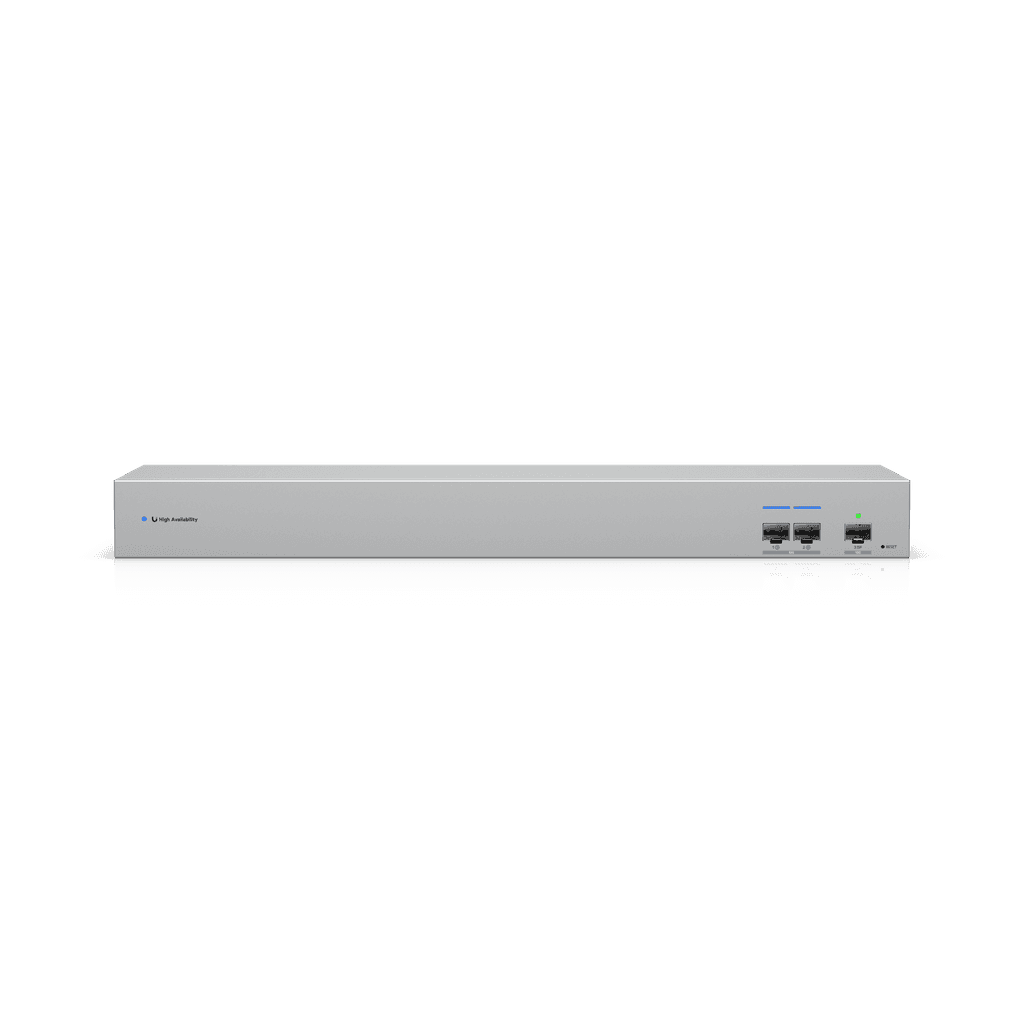

Ubiquiti UniFi WAN Switch (USW-WAN) — Authorized Ubiquiti Dealer in Texas
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Texas Technology Group has supported businesses in Galveston and across Texas since 2002. We recommend the UniFi WAN Switch for scaling from a small office to a multi-floor building, and for powering access points, cameras and VoIP phones over PoE. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Combine with Shadow Mode High Availability to ensure uninterrupted connectivity
- (1) 10G SFP+ ISP uplink and (2) 10G SFP+ downlink ports
- (2) AC inputs for power redundancy
- (1) GbE port for management with UniFi Network
- *Use an additional USW-WAN switch for ISP failover deployments.USW-WAN-EU
UniFi WAN Switch (USW-WAN) Specifications
| Overview | |
|---|---|
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10G SFP+ | 3 (10G/1G) |
| Redundancy | (2) AC inputs |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Hardware | |
| Max. Power Consumption | 13W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Weight | Without mounting brackets: 2.2 kg (4.85 lb) With mounting brackets: 2.3 kg (5.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ± 16kV, contact: ± 22kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 03715-25-08356 |
| Software | |
| UniFi Network | Version 9.1.119 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Corpus Christi, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi WAN Switch at my business in Galveston?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the USW-WAN covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: WAN Switches.
Additional information
| Weight | 7.05 lbs |
|---|
