$660.99
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
- Model: USW-PRO-HD-24
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

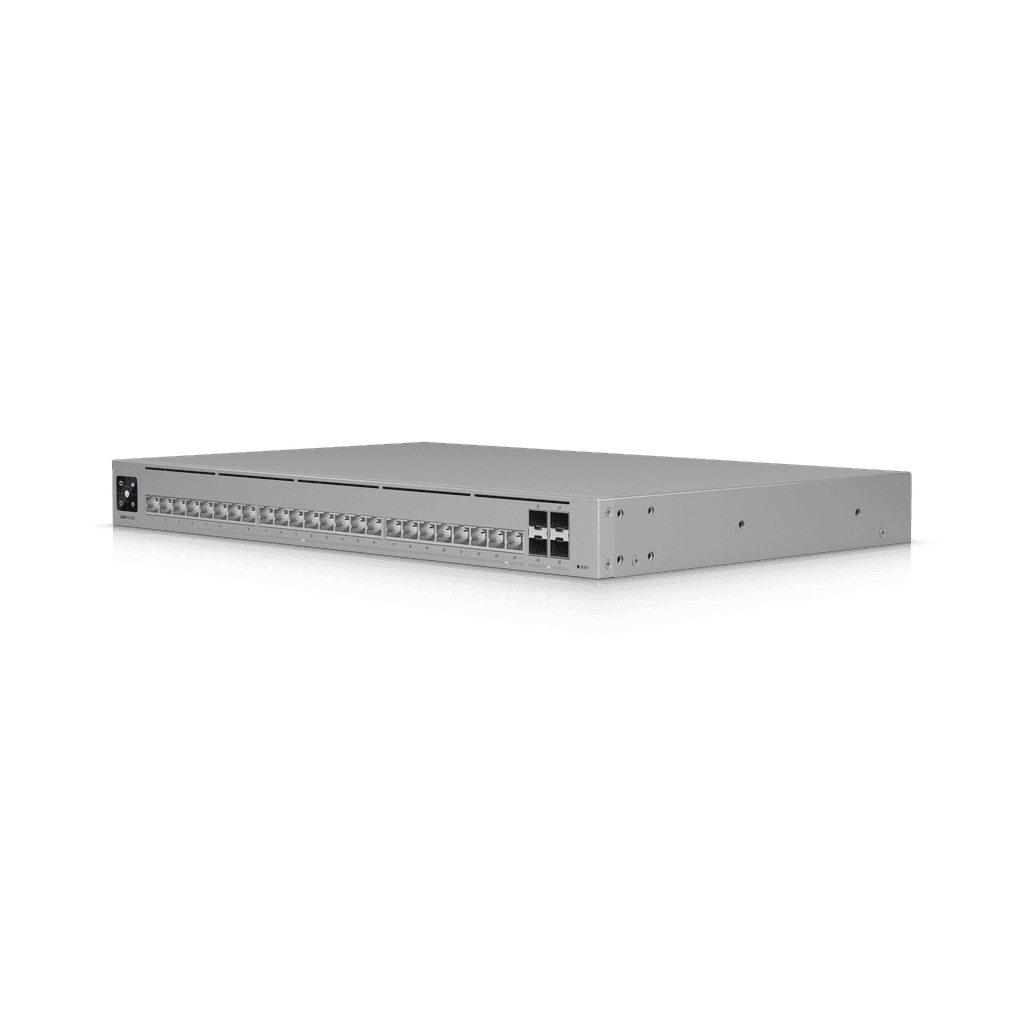

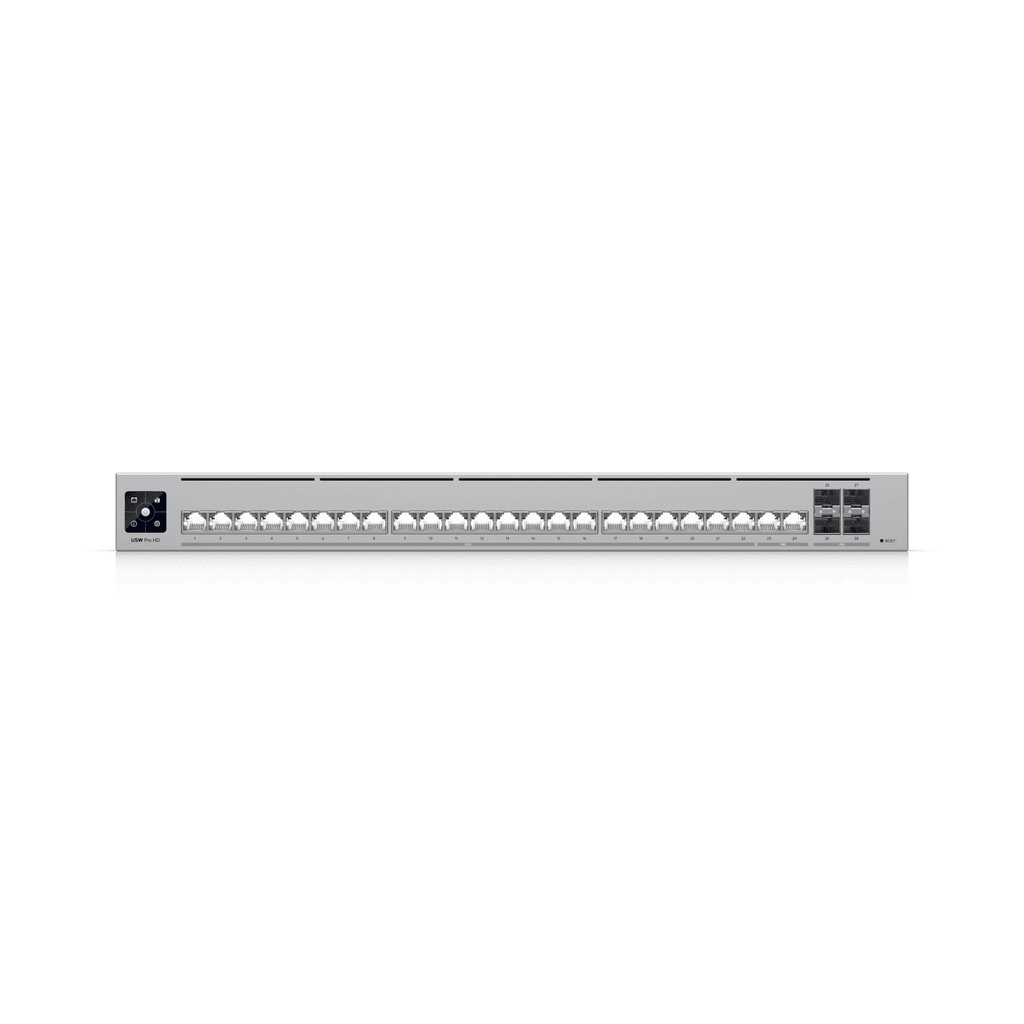

Ubiquiti UniFi Switch Pro HD 24 (USW-PRO-HD-24) — Authorized Ubiquiti Dealer in Texas
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
Texas Technology Group has supported businesses in Corpus Christi and across Texas since 2002. We recommend the UniFi Switch Pro HD 24 for scaling from a small office to a multi-floor building, and for powering access points, cameras and VoIP phones over PoE. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (22) 2.5 GbE, (2) 10 GbE ports
- (4) 10G SFP+ ports
- DC power backup ready**
- *Pair with UniFi Etherlighting Patch Cables for optimal brightness.**Requires UniFi RPS.
UniFi Switch Pro HD 24 (USW-PRO-HD-24) Specifications
| Overview | |
|---|---|
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| 2.5 GbE RJ45 | 22 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 2 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 4 (10G/1G) |
| Redundancy | DC Power Backup (With UniFi RPS) |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
| Hardware | |
| Max. Power Consumption | 60W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 205 BTU/hr |
| Weight | Without mounting brackets: 4.2 kg (9.2 lb) With mounting brackets: 4.3 kg (9.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 03853-25-08356 |
| Software | |
| UniFi Network | Version 9.0.114 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving El Paso, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Switch Pro HD 24 at my business in Corpus Christi?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the USW-PRO-HD-24 covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Pro Max & Pro XG Switches.
Additional information
| Weight | 11.75 lbs |
|---|
