$218.99
5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.
- Model: UDB-PRO-SECTOR
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

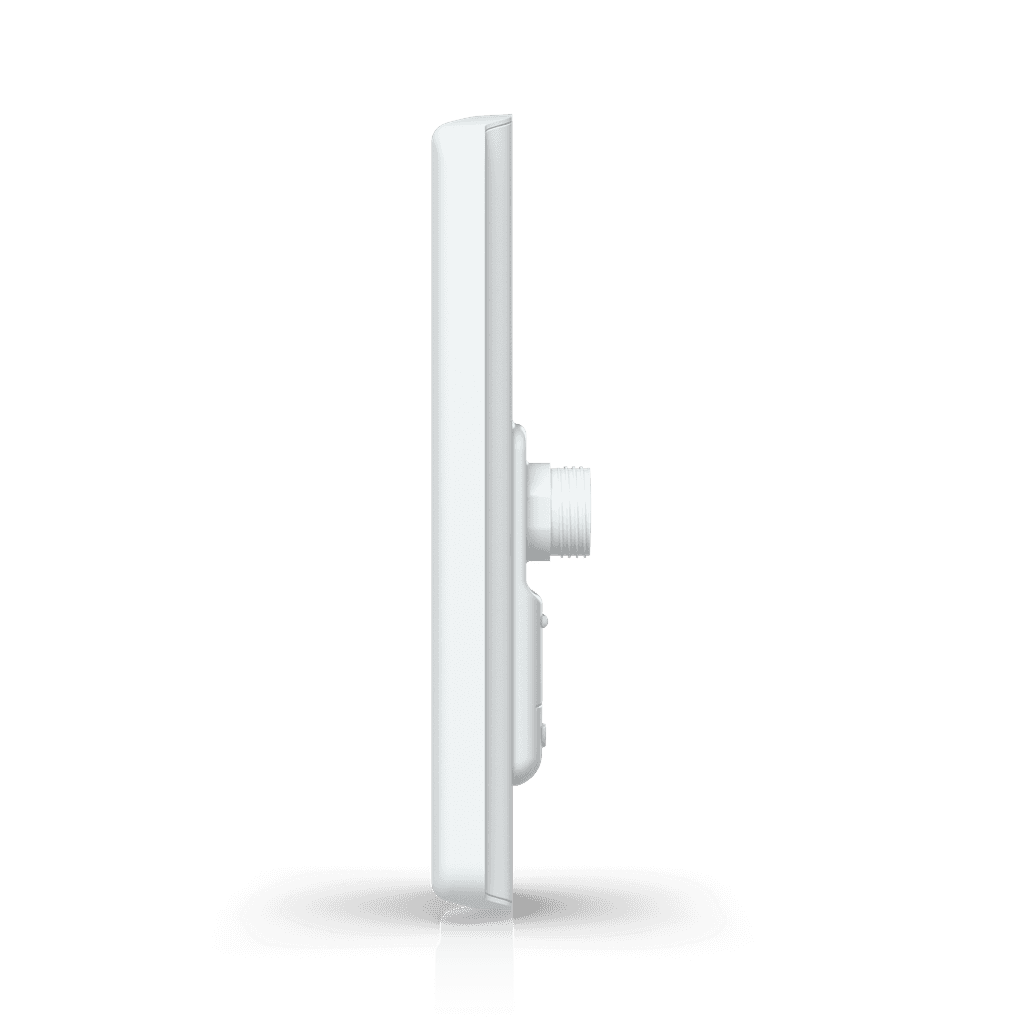

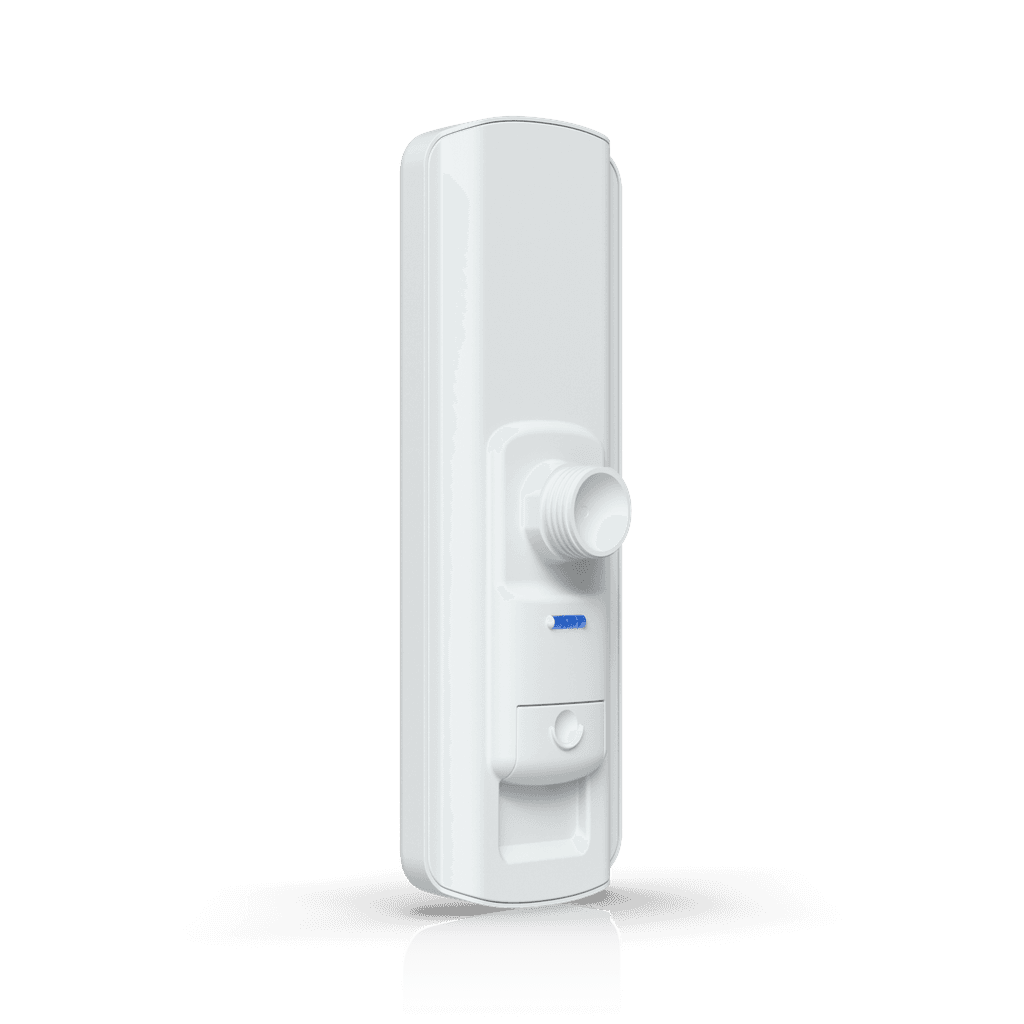

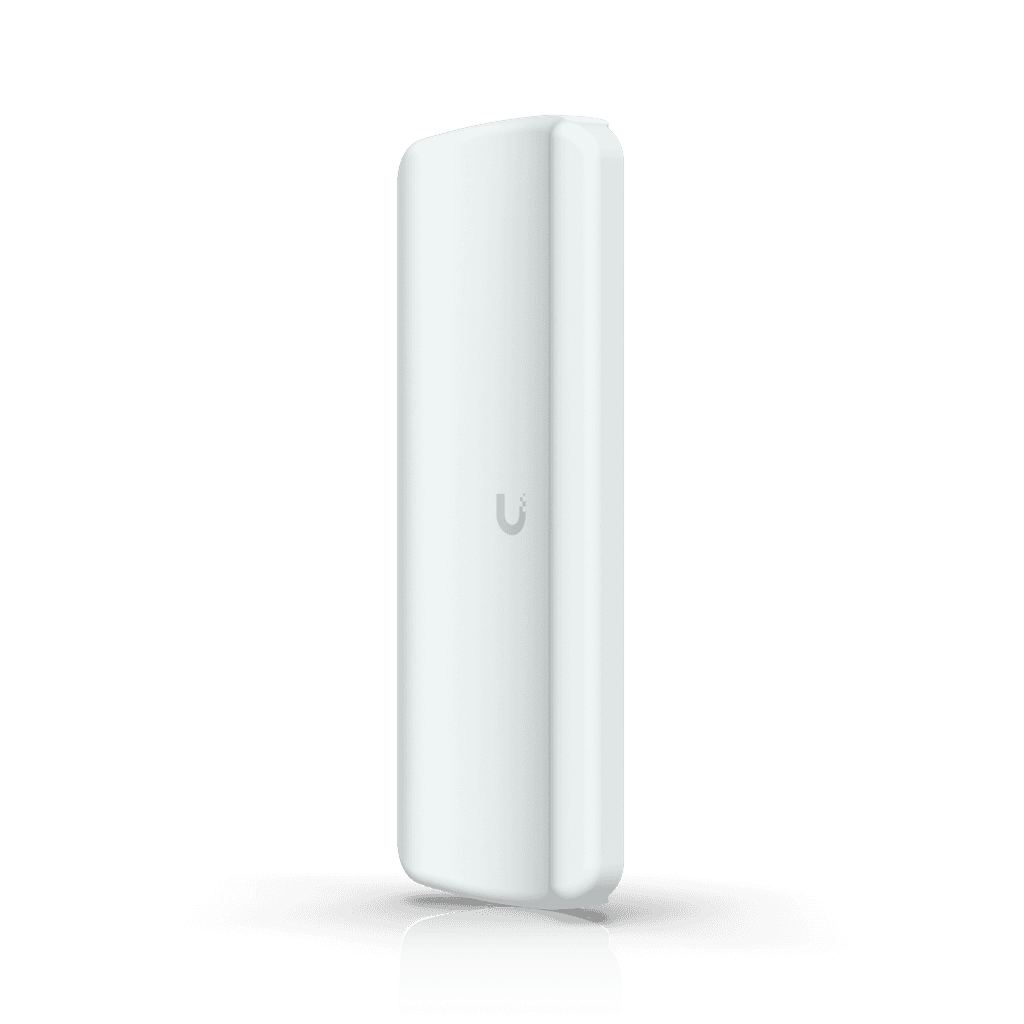

Ubiquiti UniFi Device Bridge Pro Sector (UDB-PRO-SECTOR) — Authorized Ubiquiti Dealer in Texas
5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.
Texas Technology Group has supported businesses in Plano and across Texas since 2002. We recommend the UniFi Device Bridge Pro Sector for fast, reliable WiFi across offices, clinics and conference rooms, and for seamless roaming between rooms and floors. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Enables Point-to-Multi-Point (PtMP connectivity) with 50+ UDB-Pro clients
- 90° sector coverage
- Powered using PoE
- Pole mounting
- Weatherproof (outdoor exposed)
UniFi Device Bridge Pro Sector (UDB-PRO-SECTOR) Specifications
| Overview | |
|---|---|
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| 5 GHz | 2 x 2 |
| 5 GHz | 400 Mbps (BW40) |
| 5 GHz | 17 dBi |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 400 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet WiFi |
| Channel Bandwidth | 20/40 MHz |
| Wind Loading | 128.2N at 200 km/h |
| Weight | Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9—2.4" (24—60 mm) |
| Button | (1) Factory reset |
| System | Power, Ethernet |
| Certifications | CE, FCC, IC, Anatel: 05978-25-08356 |
| Operating Frequency | US/CA: U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz Worldwide: |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Corpus Christi, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Device Bridge Pro Sector at my business in Plano?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UDB-PRO-SECTOR covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: WiFi Bridging.
Additional information
| Weight | 2.70 lbs |
|---|
