$307.99
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/5/10 GbE support.
- Model: U7-PRO-XG-WALL
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

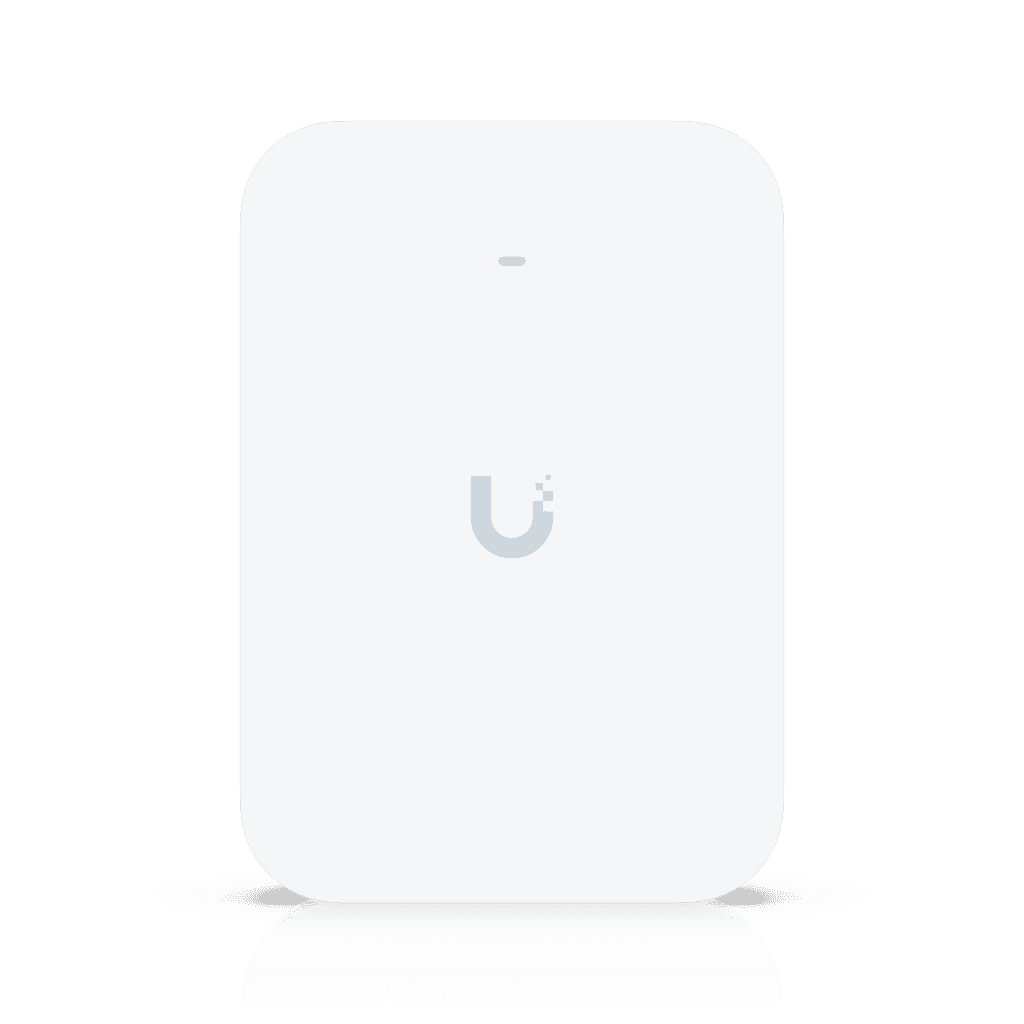

Ubiquiti UniFi Access Point U7 Pro XG Wall — Authorized Ubiquiti Dealer in Texas
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/5/10 GbE support.
Texas Technology Group has supported businesses in Katy and across Texas since 2002. We recommend the UniFi Access Point U7 Pro XG Wall for high-density spaces like waiting rooms, classrooms and event venues, and for guest WiFi isolated from your business network. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Yes
- 2.40 GHz, 5 GHz, 6 GHz
- MIMO Technology
- Multi User MIMO
- 1 x Network (RJ-45)
- 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, 5 Gigabit Ethernet
- 22 W
UniFi Access Point U7 Pro XG Wall (U7-PRO-XG-WALL) Specifications
| WiFi7 | WiFi 7 |
|---|---|
| Radio/Antenna | 6 GHz Radio |
| Overview | |
| Dimensions | 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'') |
| WiFi Standard | WiFi 7 (With 6 GHz support) |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Wall |
| Power Method | PoE+ |
| Performance | |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | 6 dBi |
| 5 GHz | 6 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 505 g (1.1 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| System | W/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| UniFi Network | Version 10.0 and later |
| Mobile App | iOS™ version 10.29.3 and later Android™ version 10.31.1 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Katy, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Access Point U7 Pro XG Wall at my business in Katy?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the U7-PRO-XG-WALL covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: In-Wall WiFi.
Additional information
| Weight | 1.60 lbs |
|---|
