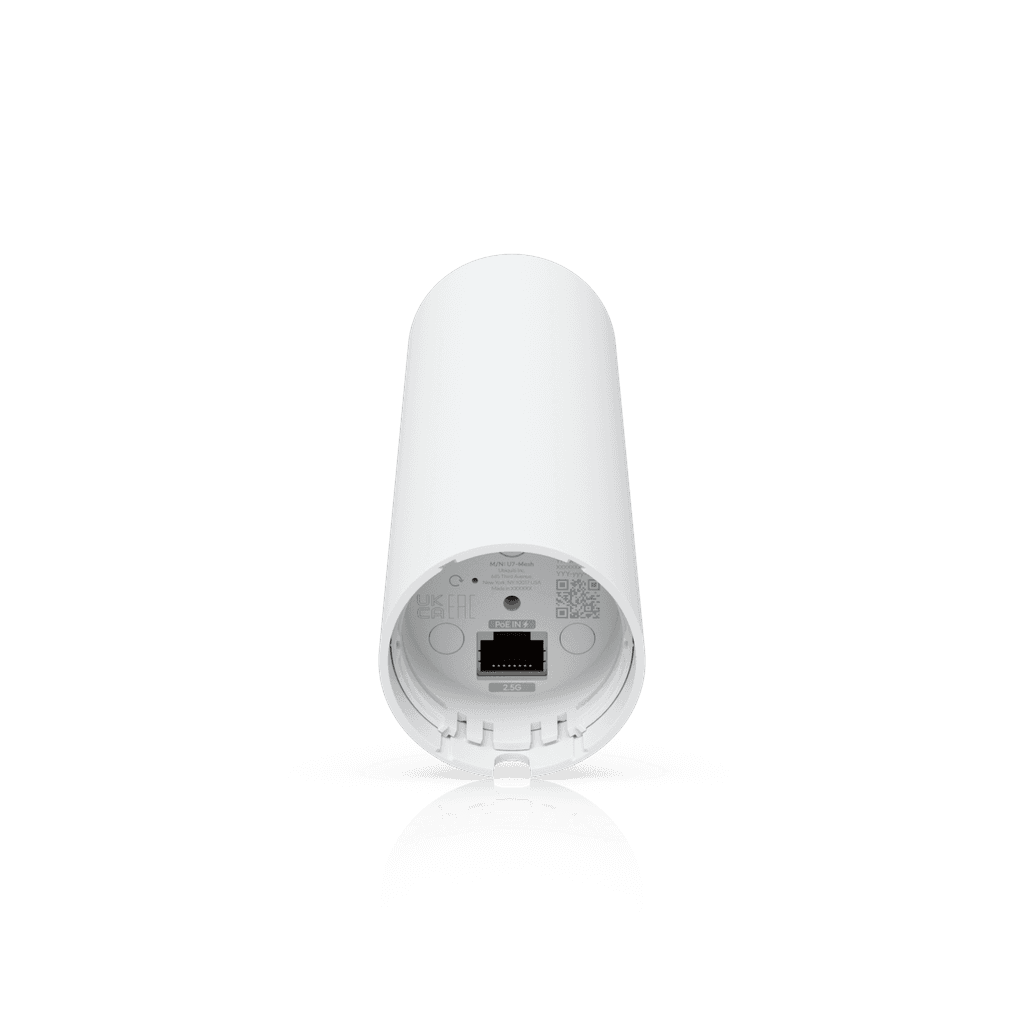

Ubiquiti UniFi Access Point U7 Mesh — Authorized Ubiquiti Dealer in Texas
Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.
Texas Technology Group has supported businesses in Corpus Christi and across Texas since 2002. We recommend the UniFi Access Point U7 Mesh for guest WiFi isolated from your business network, and for fast, reliable WiFi across offices, clinics and conference rooms. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Indoor/Outdoor
- Yes
- 2.40 GHz, 5 GHz
- Internal
- MIMO Technology
- Multi User MIMO
- 1 x Network (RJ-45)
UniFi Access Point U7 Mesh (U7-MESH) Specifications
| WiFi7 | WiFi 7 |
|---|---|
| Radio/Antenna | Omnidirectional |
| Overview | |
| Dimensions | ⌀48.5 x 159.5 mm (⌀1.9 x 6.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE (Cables with shorter boots are recommended) |
| Mounting | Wall, Pole, Table stand (Mounts included) |
| Weatherproofing | IPX6 (Installed with the outdoor mount) |
| Power Method | PoE |
| Performance | |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.3 Gbps (BW240) (Depends on regulatory region) |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | Omnidirectional: 6 dBi Directional: 10 dBi |
| 2.4 GHz | 3 dBi |
| 5 GHz | 24 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| System | R/G/B/W |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| UniFi Network | Version 10.1.85 and later |
| Mobile App | UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later |
