$99.99
An optional mesh antenna for AC Mesh.
- Model: UMA-D
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

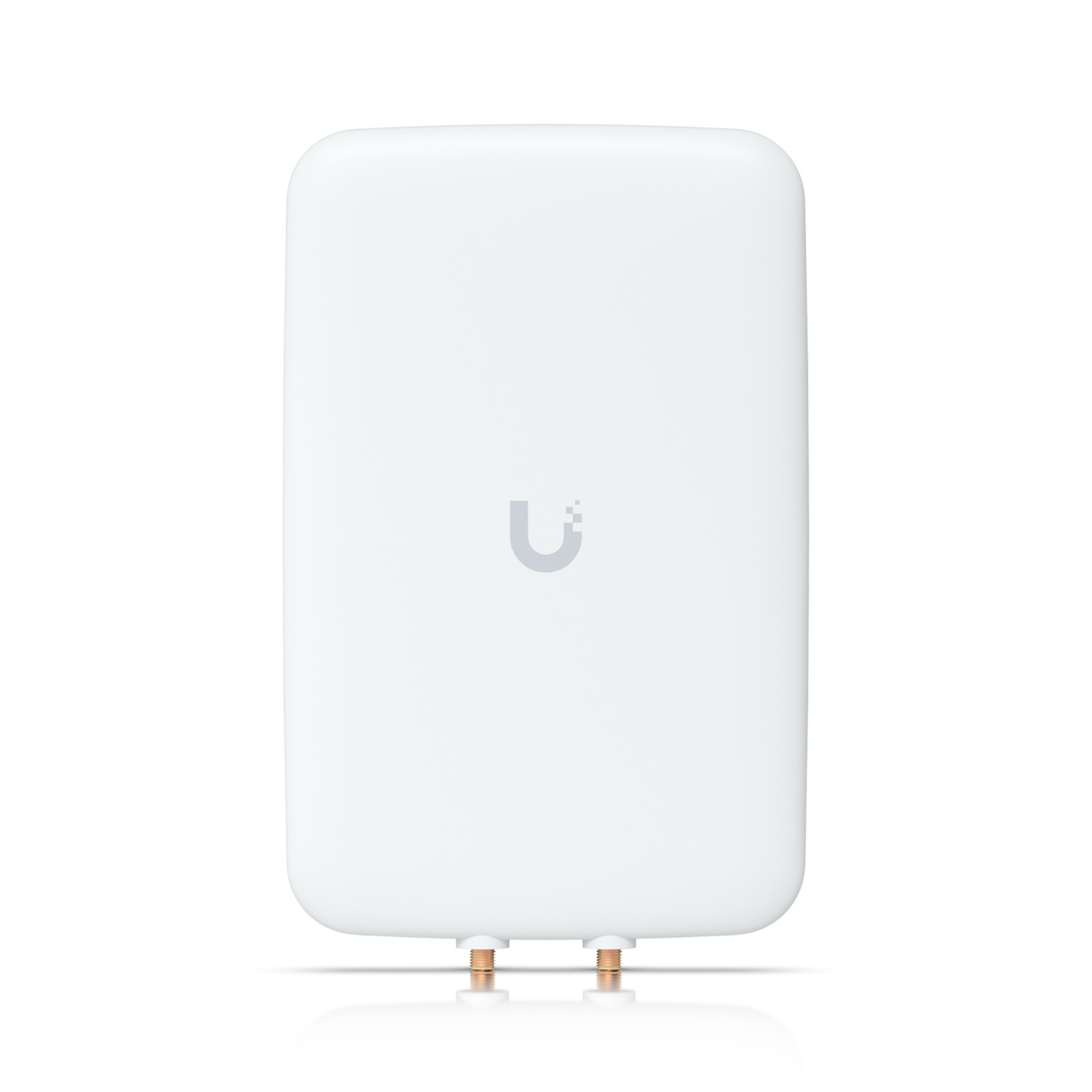

Ubiquiti UniFi AC Mesh Dual-Band Antenna (UMA-D) — Authorized Ubiquiti Dealer in Texas
An optional mesh antenna for AC Mesh.
Texas Technology Group has supported businesses in Fort Worth and across Texas since 2002. We recommend the UniFi AC Mesh Dual-Band Antenna for keeping spare parts on hand for fast repairs, and for completing a clean, professional UniFi installation. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Outdoor weather-resistant enclosure
- High-efficiency directional radiation pattern
- Dual-band, dual-polarity optimized for 802.11ac
- Ball joint 3-axis mount for precise aiming
- Wall and pole mount included
UniFi AC Mesh Dual-Band Antenna (UMA-D) Specifications
| Mechanical | |
|---|---|
| Dimensions | 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3") |
| Weight | Without mount: 400 g (0.9 lb) With mount: 480 g (1.1 lb) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Hardware | |
| Supported Frequency Range | 2.4–2.5 GHz 5.1–5.9 GHz |

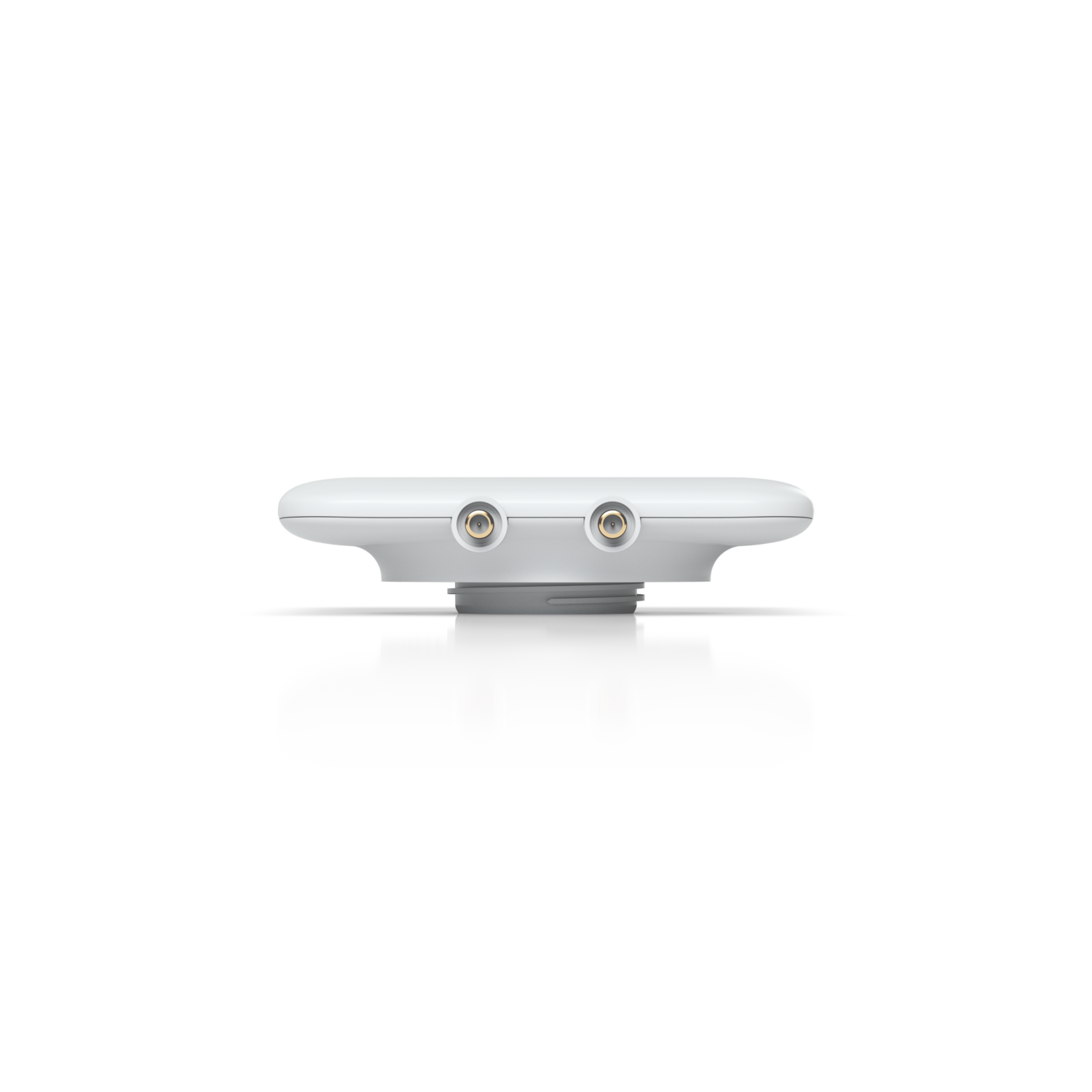

| RF Connections | (2) RP-SMA |
| 5 GHz | 15 dBi |
| 2.4 GHz | 10 dBi |
| 5 GHz | 45° |
| 2.4 GHz | 90° |
| 5 GHz | 45° |
| 2.4 GHz | 90° |
| 5 GHz | 45° |
| 2.4 GHz | 90° |
| Max VSWR | 2:1 |
| Polarization | Dual-linear |
| 5 GHz | 30 dB |
| 2.4 GHz | 25 dB |
| Certifications | Anatel: 06187-19-08356 |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Corpus Christi, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi AC Mesh Dual-Band Antenna at my business in Fort Worth?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UMA-D covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Access Point Mounts & Accessories.
Additional information
| Weight | 1.80 lbs |
|---|
