$528.99
Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.
- Model: UAP-AC-M-5
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

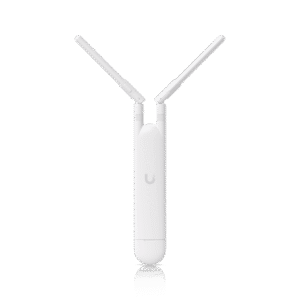

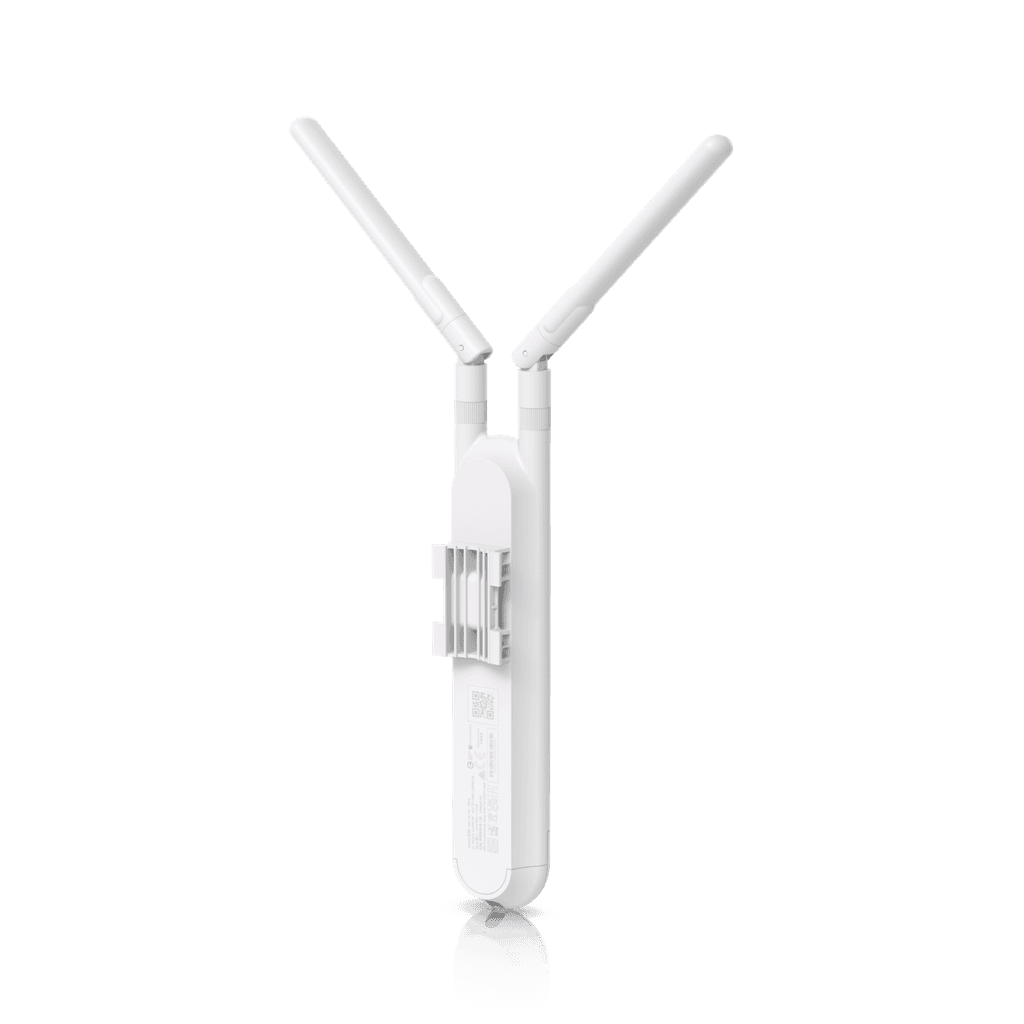

Ubiquiti UniFi Access Point AC Mesh (UAP-AC-M-5) — Authorized Ubiquiti Dealer in Texas
Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.
Texas Technology Group has supported businesses in Pearland and across Texas since 2002. We recommend the UniFi Access Point AC Mesh for seamless roaming between rooms and floors, and for high-density spaces like waiting rooms, classrooms and event venues. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- WiFi 5
- 4 spatial streams
- 140 m² (1,500 ft²) coverage
- 200+ connected devices
- Powered using PoE*
- GbE uplink
- Versatile wall and pole mounting
- (2) RP-SMA connectors for optional external antennas**
- Weatherproof (outdoor exposed)
- *PoE power adapter included with single unit purchase.**UMA-D external antenna accessory offers directional coverage.
UniFi Access Point AC Mesh (UAP-AC-M-5) Specifications
| Max. Client Count | 200 |
|---|---|
| WiFi5 | WiFi 5 |
| Radio/Antenna | Omnidirectional |
| Uplink | GbE |
| Overview | |
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE (Supports passive 24V (Pairs 4, 5+; 7, 8 return)) |
| Performance | |
| 5 GHz | 2 x 2 (DL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| 5 GHz | 867 Mbps (BW80) |
| 2.4 GHz | 300 Mbps (BW40) |
| 5 GHz | 4 dBi |
| 2.4 GHz | 3 dBi |
| 5 GHz | 20 dBm |
| 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 22–26V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
| Management | Ethernet Bluetooth |
| Enclosure Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Operating Frequency | US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UKCA, Anatel: 01769-18-08356 |
| Software | |
| UniFi Network | Version 6.0.45 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Pearland, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Access Point AC Mesh at my business in Pearland?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UAP-AC-M-5 covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Outdoor WiFi.
Additional information
| Weight | 3.55 lbs |
|---|
