$2,753.99
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
- Model: USW-PRO-XG-AGGREGATION
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

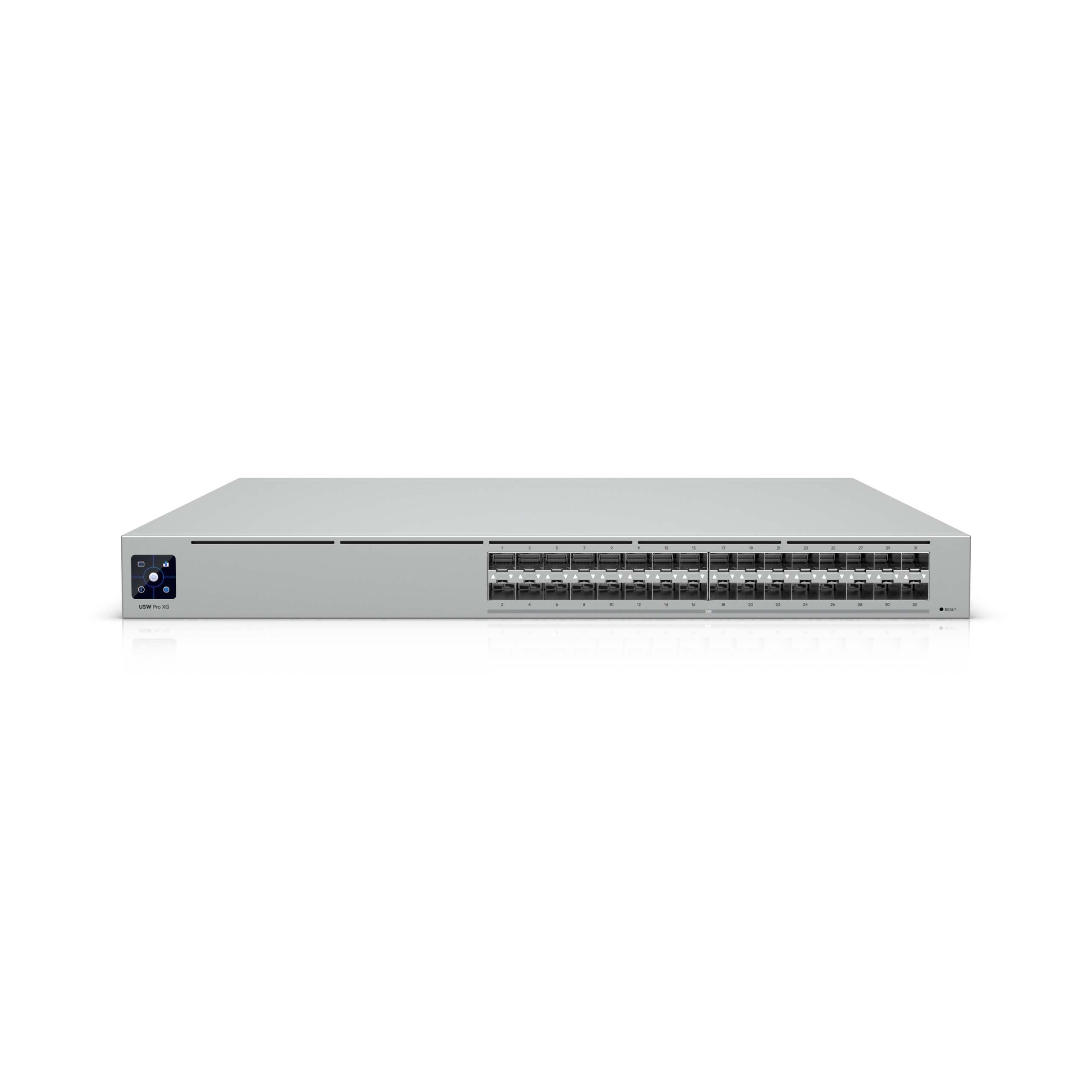

Ubiquiti UniFi Switch Pro XG Aggregation (USW-PRO-XG-AGGREGATION) — Authorized Ubiquiti Dealer in Texas
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
Texas Technology Group has supported businesses in Katy and across Texas since 2002. We recommend the UniFi Switch Pro XG Aggregation for segmenting guest, staff and device traffic with VLANs, and for scaling from a small office to a multi-floor building. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Manageable
- Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
- 1000Base-X, 10GBase-X, 25GBase-X
- 3 Layer Supported
- 200 W Power Consumption
- Optical Fiber
- 1U
UniFi Switch Pro XG Aggregation (USW-PRO-XG-AGGREGATION) Specifications
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9") |
| 25G SFP28 | 32 (25G/10G/1G) |
| Redundancy | DC Power Backup (With UniFi RPS) |
| Form Factor | Rack Mount (1U) |
| Performance | |
| Switching Capacity | 1.6 Tbps |
| Total Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
| Hardware | |
| Max. Power Consumption | 200W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 682 BTU/hr |
| Weight | Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05977-25-08356 |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Sugar Land, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Switch Pro XG Aggregation at my business in Katy?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the USW-PRO-XG-AGGREGATION covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Aggregation Switches.
Additional information
| Weight | 28.50 lbs |
|---|
