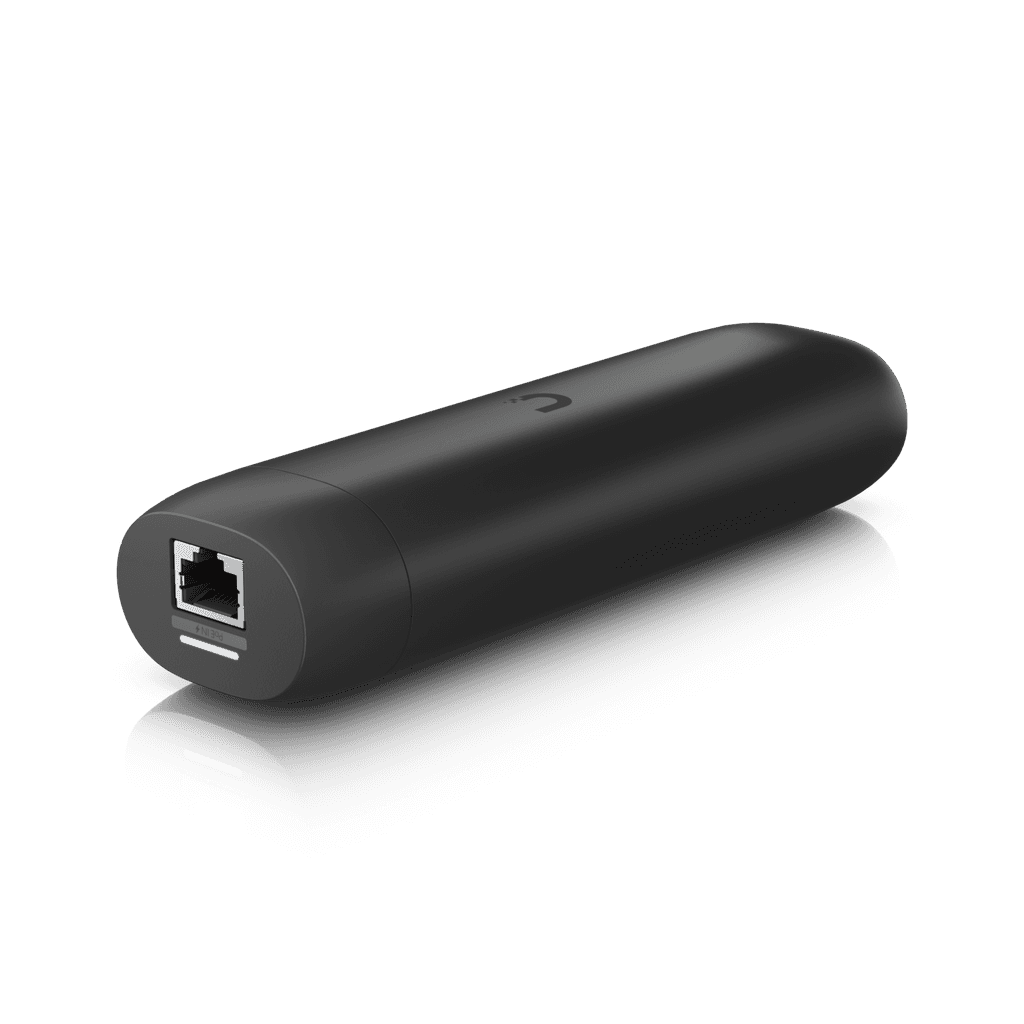

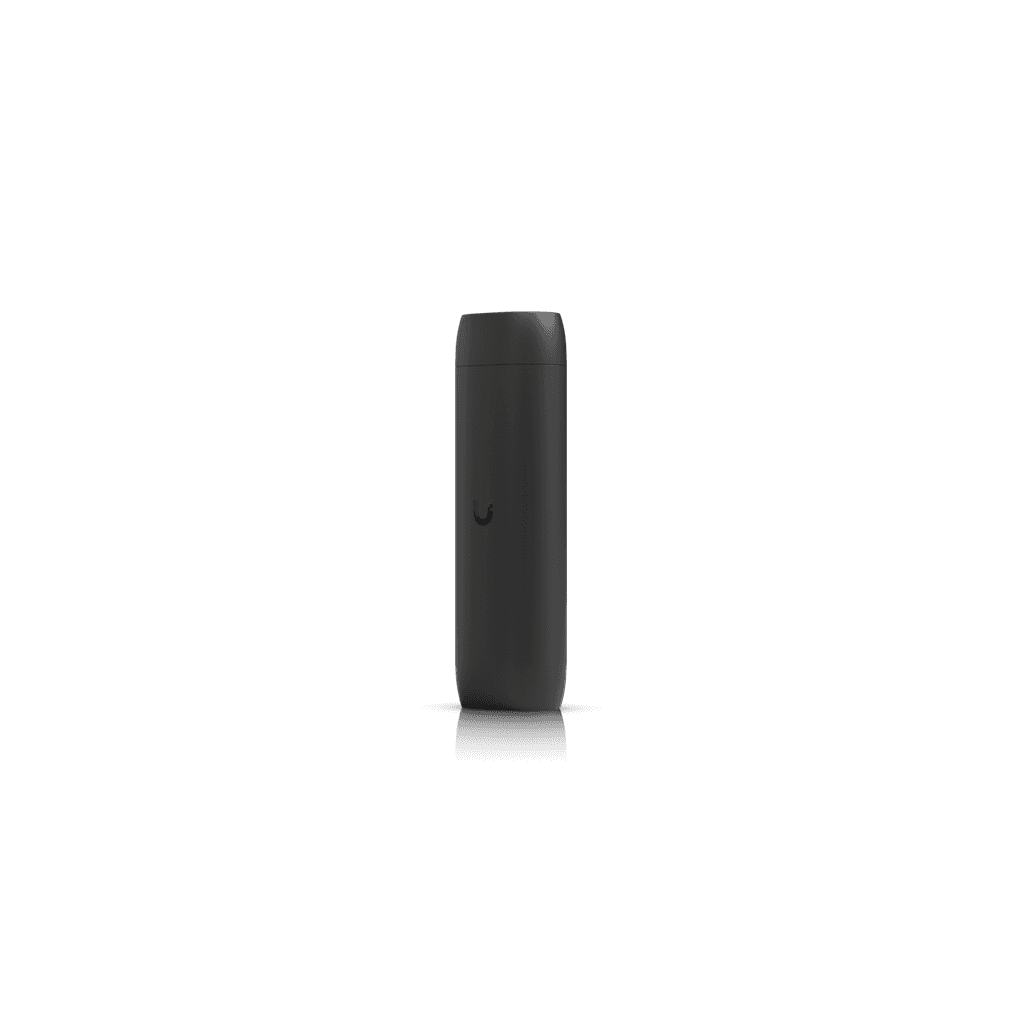

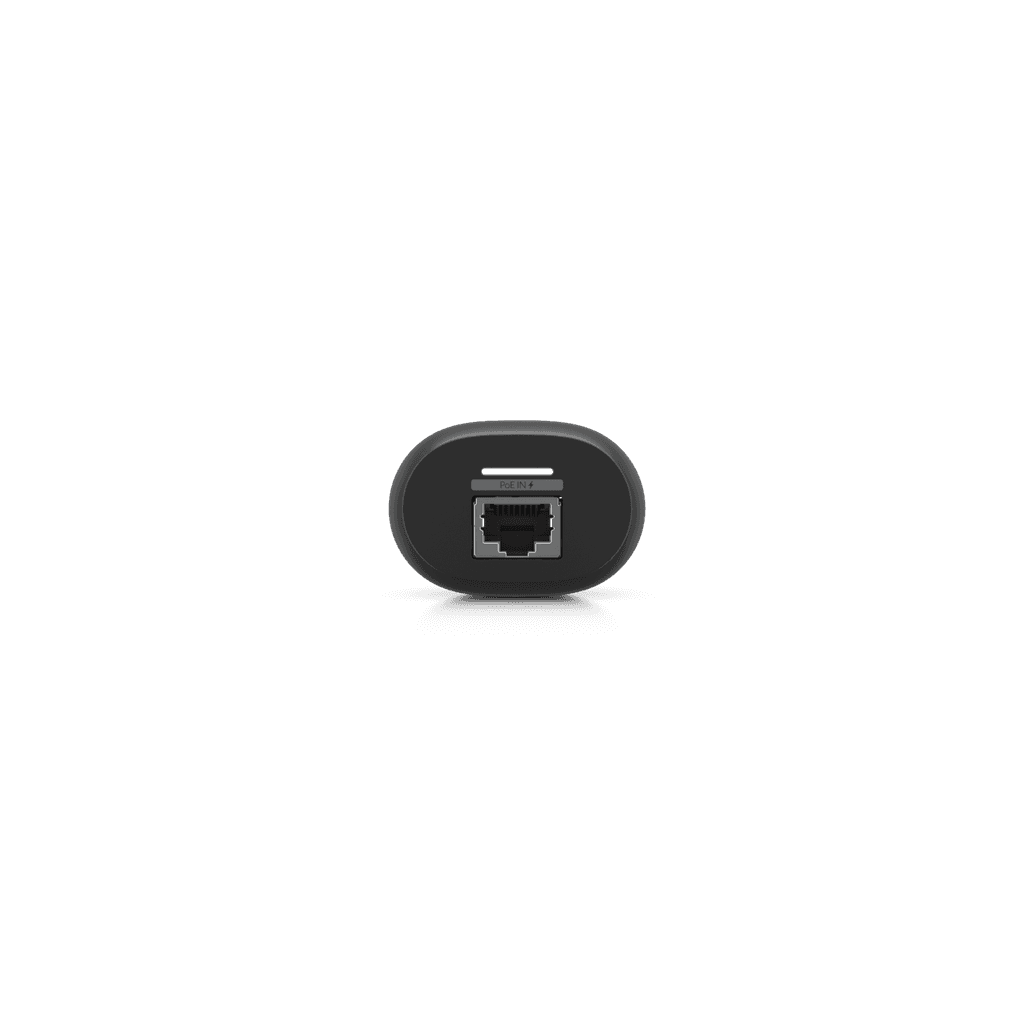

Ubiquiti UniFi Protect Protect Viewport (UP-VIEWPORT) — Authorized Ubiquiti Dealer in Texas
Easy-to-use hub for viewing Protect camera feeds on an HDMI display.
Texas Technology Group has supported businesses in El Paso and across Texas since 2002. We recommend the UniFi Protect Protect Viewport for remote viewing from the UniFi Protect app anywhere, and for 24/7 video surveillance with no monthly subscription fees. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Flexible mounting
- 16-stream matrix view support
- Connect and power using PoE
- HDMI video output up to 4K @ 30 FPS
UniFi Protect Protect Viewport (UP-VIEWPORT) Specifications
| Mechanical | |
|---|---|
| Dimensions | 157 x 52 x 37 mm (6.2 x 2.1 x 1.5") |
| Weight | Without mount: 230 g (8.1 oz) With TV mount: 252 g (8.9 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE |
| Max. Power Consumption | 9.5W |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 20 to 80% noncondensing |
| Certifications | FCC, IC, CE, Anatel: 06681-25-08356 |
| Software | |
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Katy, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Protect Protect Viewport at my business in El Paso?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UP-VIEWPORT covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
