$214.99
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
- Model: UXG-MAX
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

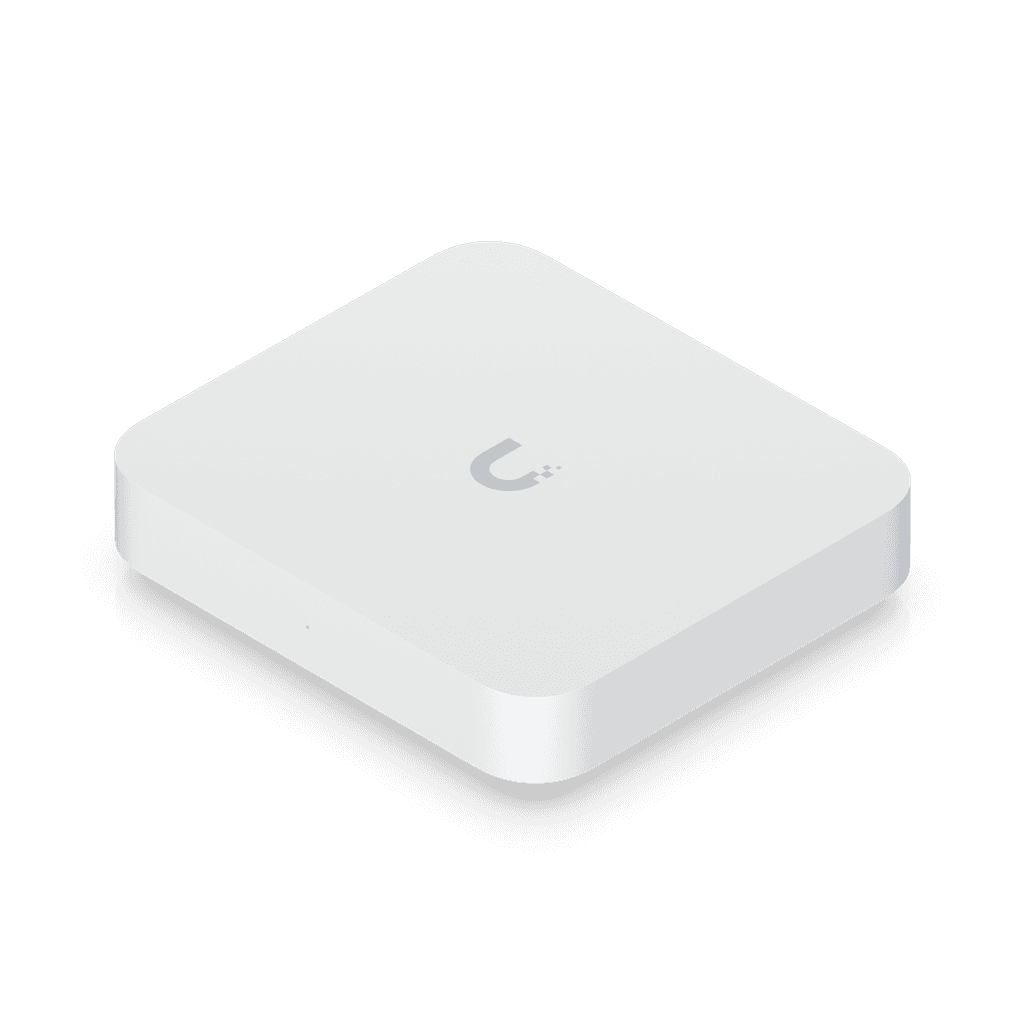

Ubiquiti UniFi Gateway Max (UXG-MAX) — Authorized Ubiquiti Dealer in Texas
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
Texas Technology Group has supported businesses in Plano and across Texas since 2002. We recommend the UniFi Gateway Max for completing a clean, professional UniFi installation, and for connecting switches, gateways and servers at full speed. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Managed with a CloudKey, Official UniFi Hosting, or UniFi OS Server with UniFi Network 8.1.113 and later
- Up to 2.3 Gbps routing with IDS/IPS
- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN
- USB-C powered (adapter included)
UniFi Gateway Max (UXG-MAX) Specifications
| IDS/IPS | 2.3 Gbps |
|---|---|
| IDS/IPS Throughput | 2.3 Gbps |
| Overview | |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps (With UniFi Gateway firmware 4.1 or later.) |
| Form Factor | Compact desktop |
| Security | |
| IDS/IPS Signatures | 55,000+ With CyberSecure |
| Networking | |
| MAC Address Table Size | 2,000 |
| Hardware | |
| Max. Power Consumption | 9.6W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 33 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04873-25-08356 |
| Software | |
| UniFi Network | Version 8.1.113 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Conroe, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Gateway Max at my business in Plano?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UXG-MAX covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Advanced Hosting.
Additional information
| Weight | 1.80 lbs |
|---|
