$1,650.99
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
- Model: UDM-BEAST
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

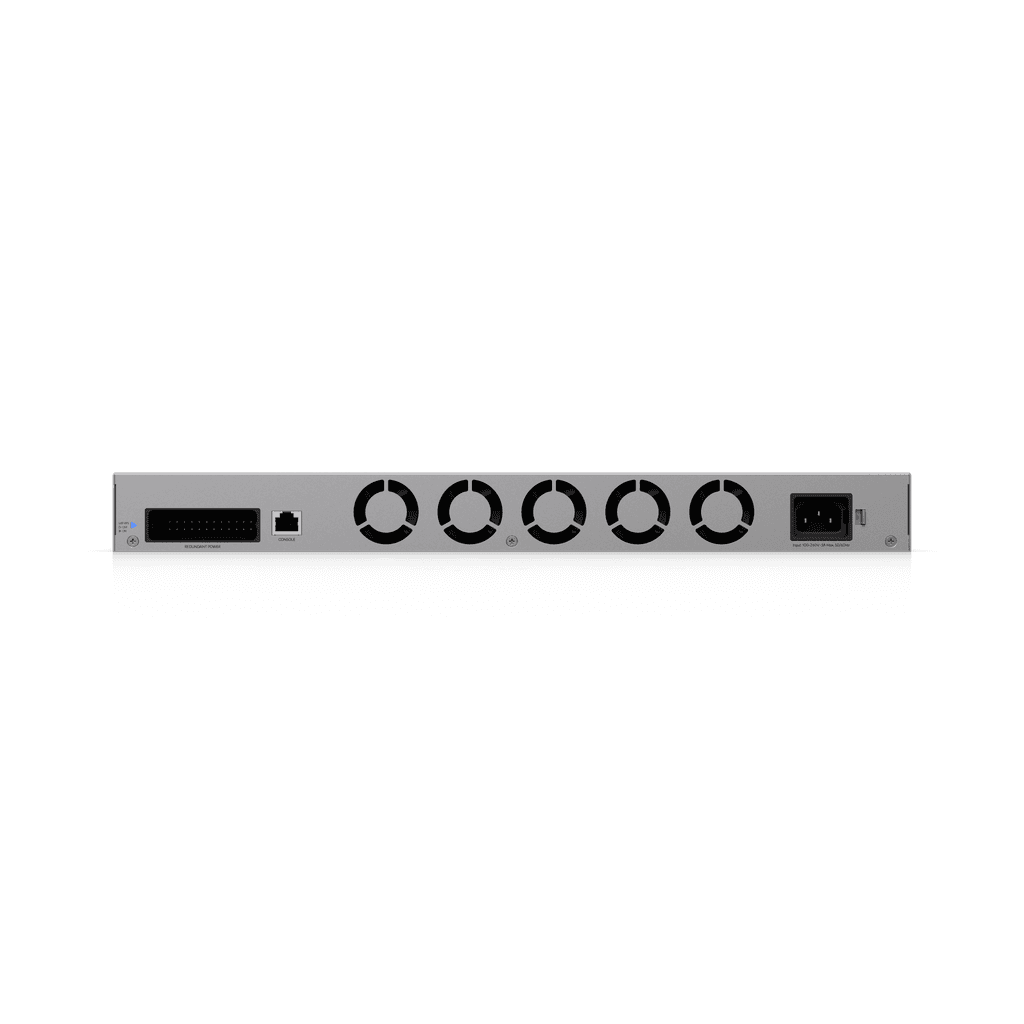

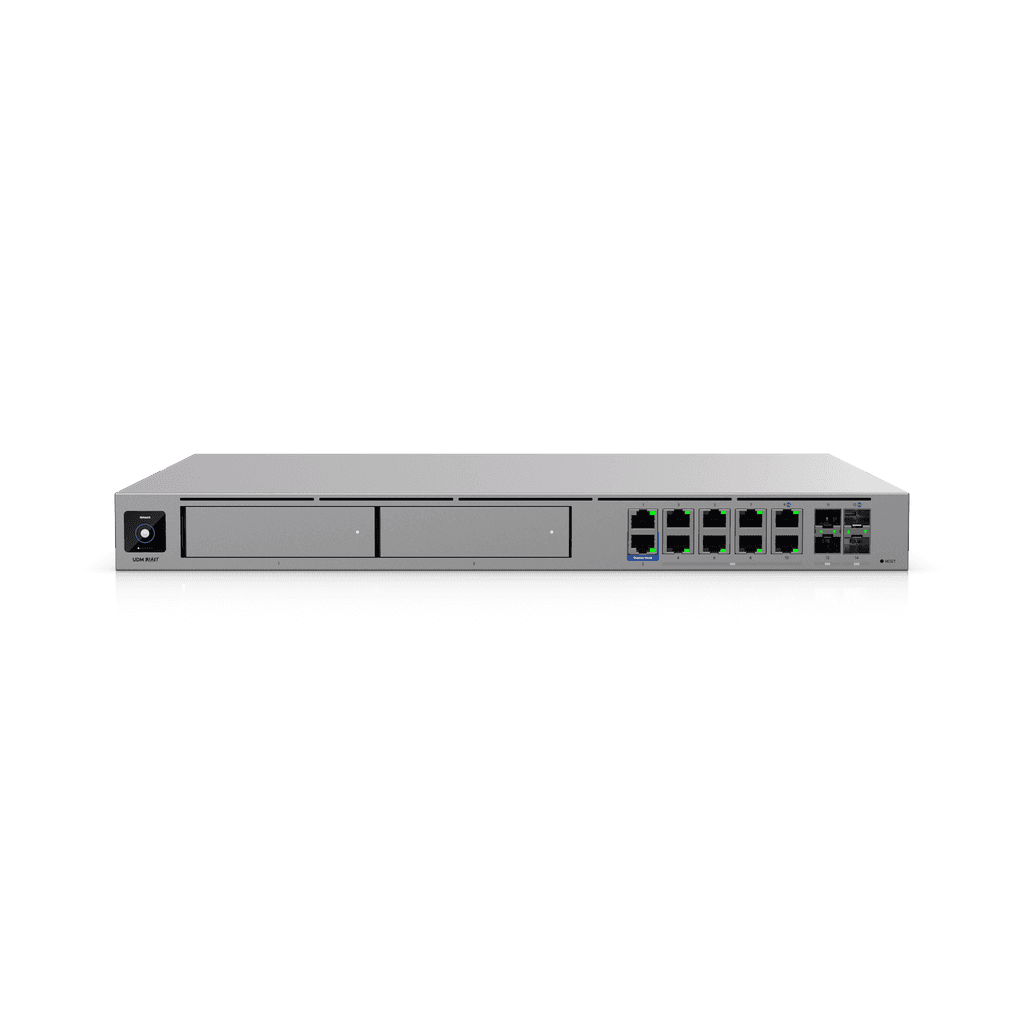

Ubiquiti UniFi Dream Machine Beast (UDM-BEAST) — Authorized Ubiquiti Dealer in Texas
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
Texas Technology Group has supported businesses in Katy and across Texas since 2002. We recommend the UniFi Dream Machine Beast for replacing aging consumer routers with a business-grade gateway, and for secure routing, firewall and VPN for a growing office. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 10 Ports
- 9 RJ-45 Port(s)
- 1 WAN Port(s)
- Management Port
- 4 SFP+ Slots, SFP28 Slots
- 16 GB
- 25 Gigabit Ethernet
UniFi Dream Machine Beast (UDM-BEAST) Specifications
| IDS/IPS | 25 Gbps |
|---|---|
| Overview | |
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Managed UniFi Devices | 750+ |
| Managed Cameras | (100) HD (60) 2K (40) 4K |
| Managed Access Hubs | 200 |
| Simultaneous Users Connected | 7,500+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 25G SFP28 (1) 10 GbE RJ45 |
| 1 GbE RJ45 | 2 (1G/100M/10M) |
| 10 GbE RJ45 | 8 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| 25G SFP28 | 2 (25G/10G/1G) |
| Console | 1 |
| IDS/IPS Throughput | 25 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover DC Power Backup (Enable DC power backup using UniFi RPS) |
| Security | |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| Networking | |
| MAC Address Table Size | 32,000 |
| Hardware | |
| NVR Storage | (2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.05A |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 342 BTU/hr |
| Processor | Octa-core ARM® v9 at 2.1 GHz |
| System Memory | 16 GB |
| On-board Storage | Integrated 128 GB SSD |
| Weight | 5.5 kg (12.13 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Mobile App | UniFi iOS™: Version 10.34.0 and later UniFi Android™: Version 10.37.1 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving El Paso, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Dream Machine Beast at my business in Katy?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UDM-BEAST covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Large Scale Gateways.
