$218.99
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
- Model: UDB-PRO
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

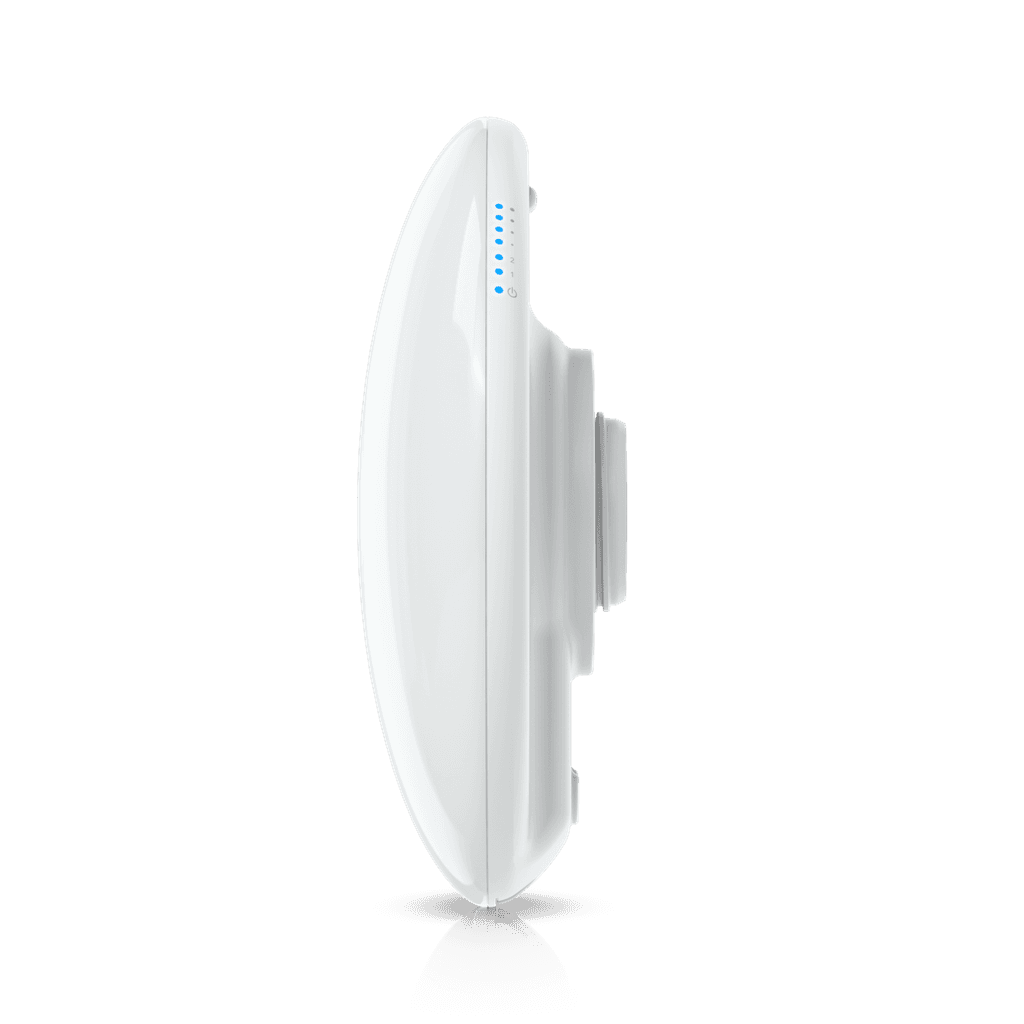

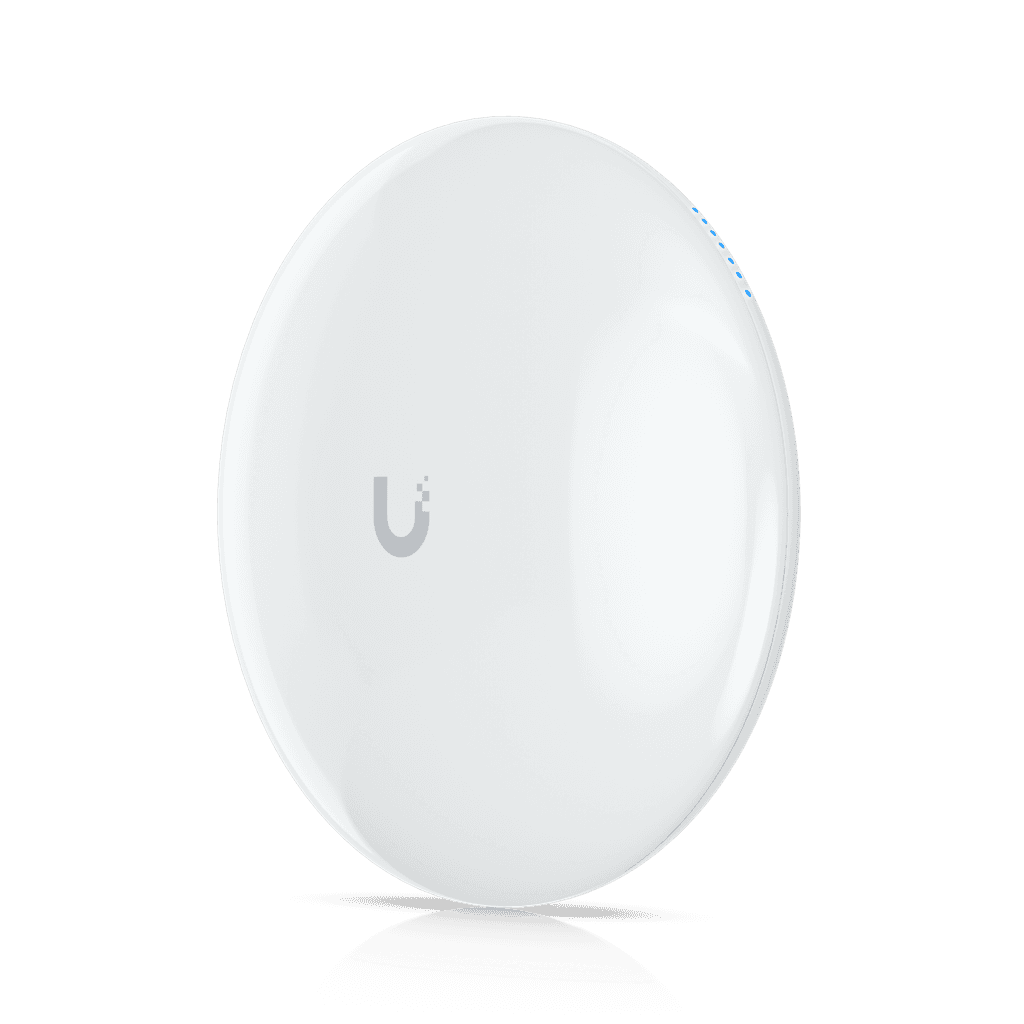

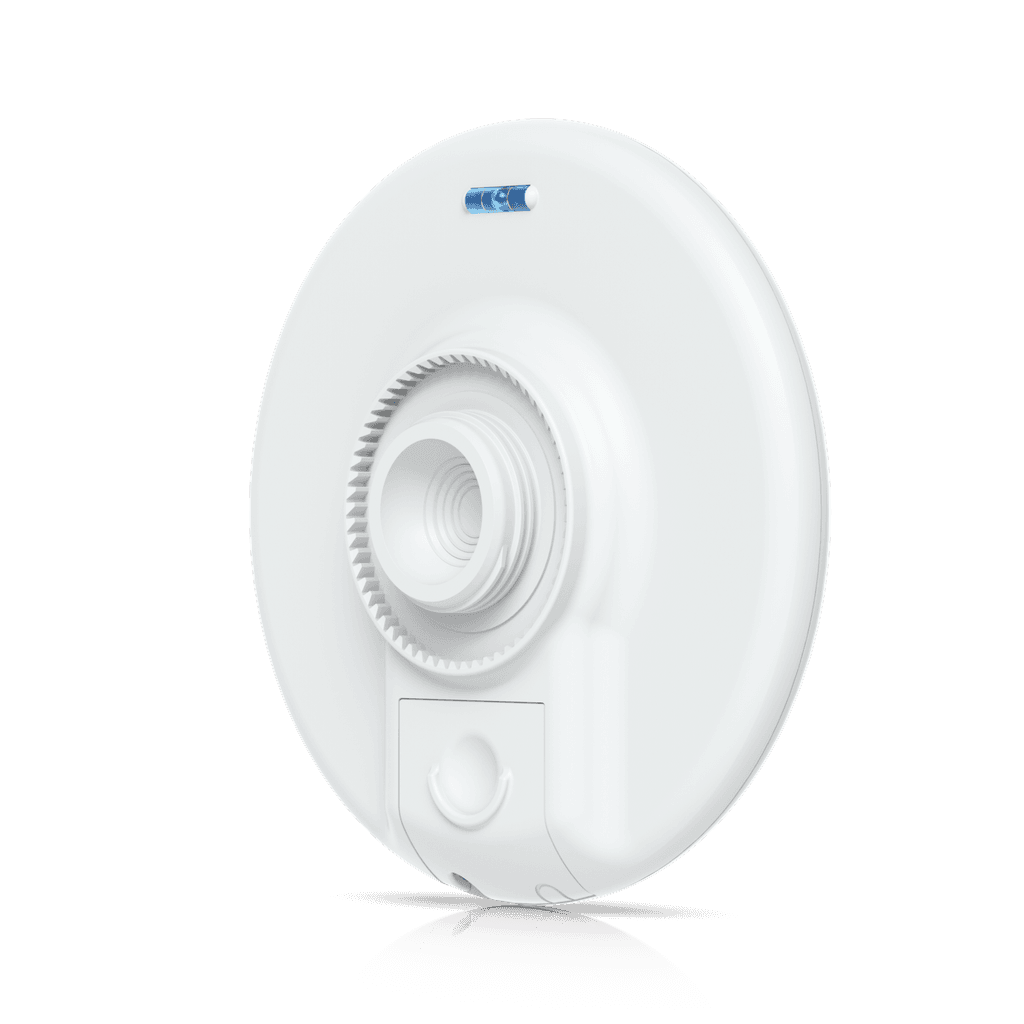

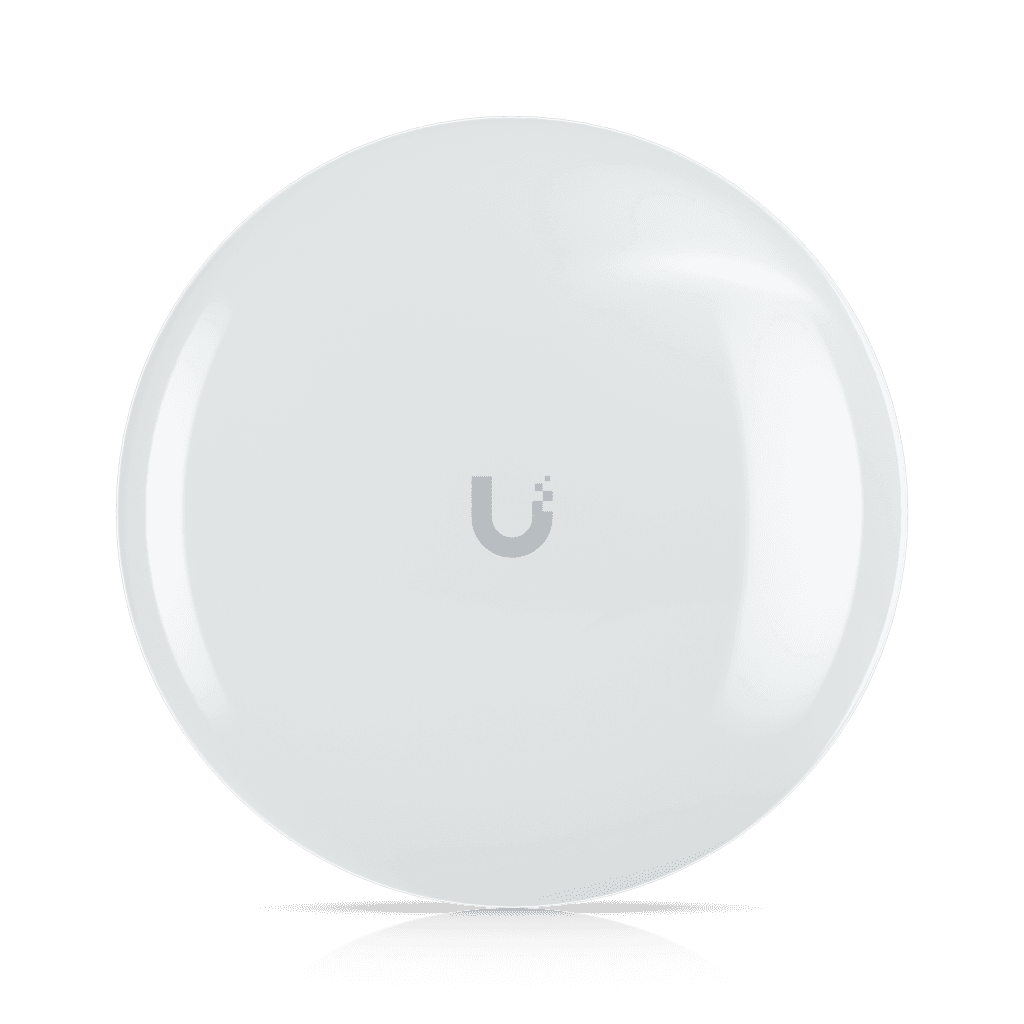

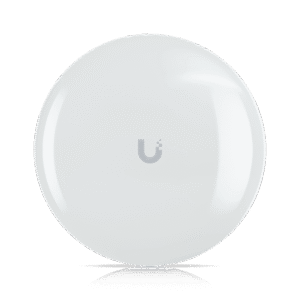

Ubiquiti UniFi Device Bridge Pro (UDB-PRO) — Authorized Ubiquiti Dealer in Texas
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Texas Technology Group has supported businesses in The Woodlands and across Texas since 2002. We recommend the UniFi Device Bridge Pro for guest WiFi isolated from your business network, and for fast, reliable WiFi across offices, clinics and conference rooms. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Outdoor
- 5 GHz
- Internal
- 3.1 Mile Maximum Outdoor Range
- MIMO Technology
- 2 x Network (RJ-45)
- Gigabit Ethernet
UniFi Device Bridge Pro (UDB-PRO) Specifications
| Overview | |
|---|---|
| Dimensions | ⌀189.5 x 64.3 mm (⌀7.4 x 2.5") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Wall, pole |
| Mounting | Pole (Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE PoE+ (Required for PoE output) |
| Power Supply | 48V, 0.32A PoE adapter (Included) |
| Performance | |
| 5 GHz | 2 x 2 |
| 5 GHz | 867 Mbps (BW80) |
| 5 GHz | 19 dBi |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5–57V DC |

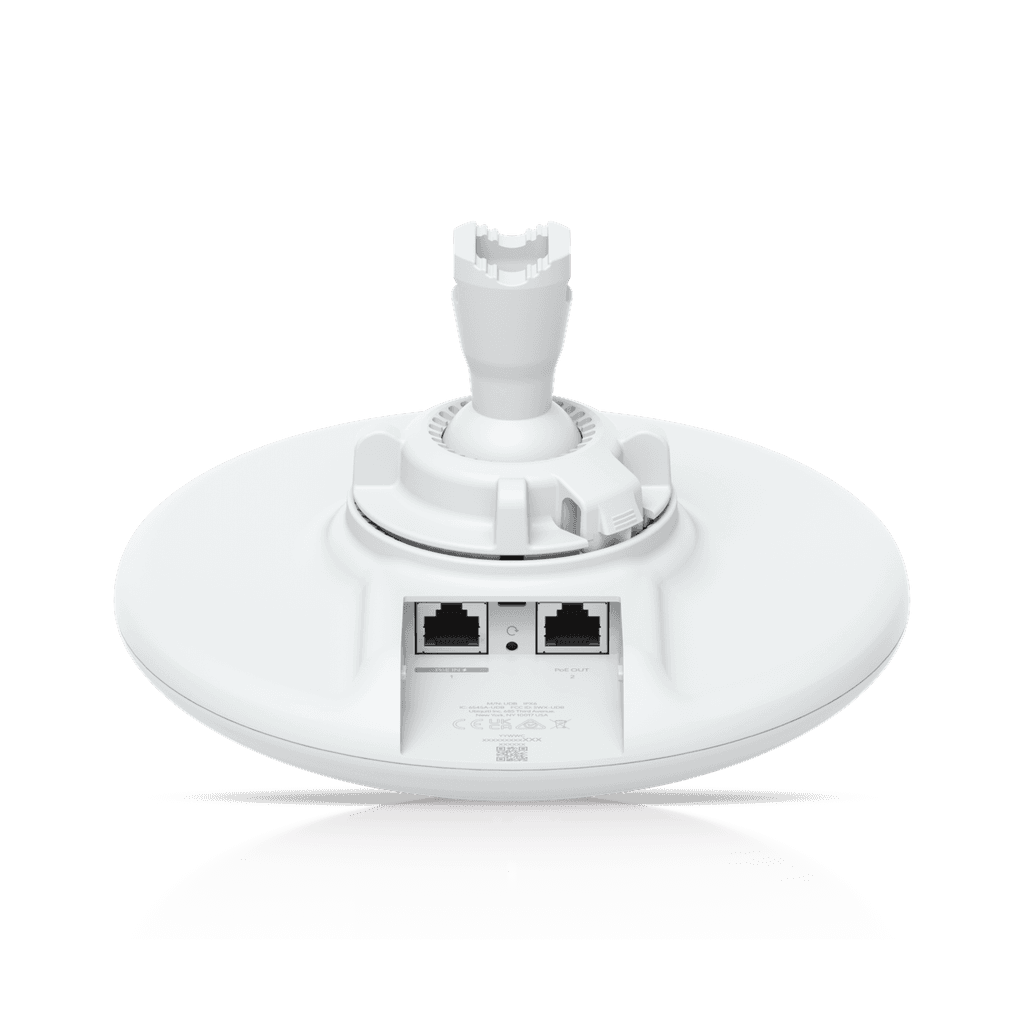

| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | (1) PoE in (PoE output not used) (1) Passive PoE output |
| Channel Bandwidth | 20/40/80 (MHz) |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb) |
| Enclosure Material | UV-resistant polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.8–2.1" (20–53.1 mm) |
| Button | (1) Factory reset |
| System | Power, (2) Ethernet status – main port/PoE out port, (4) signal strength |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz Worldwide: |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Corpus Christi, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Device Bridge Pro at my business in The Woodlands?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UDB-PRO covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: WiFi Bridging.
Additional information
| Weight | 2.30 lbs |
|---|
