Description

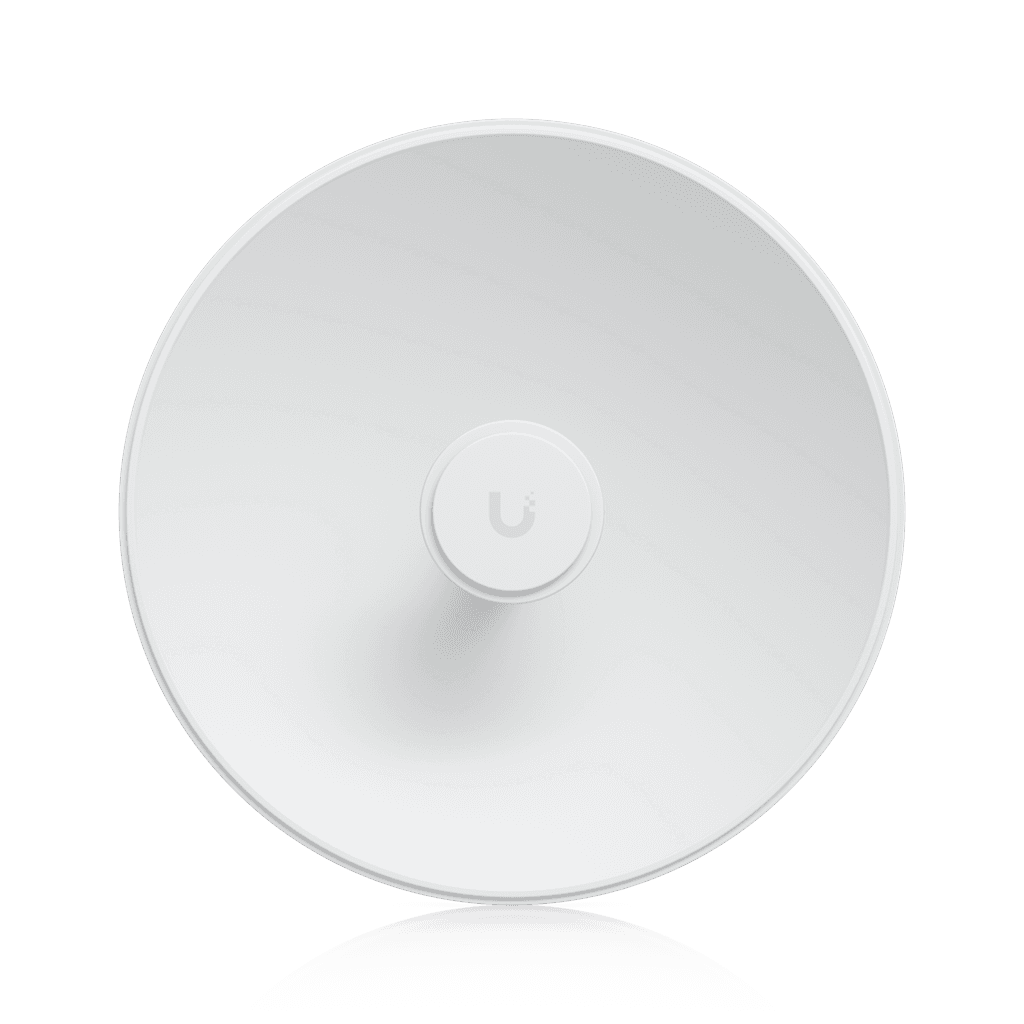

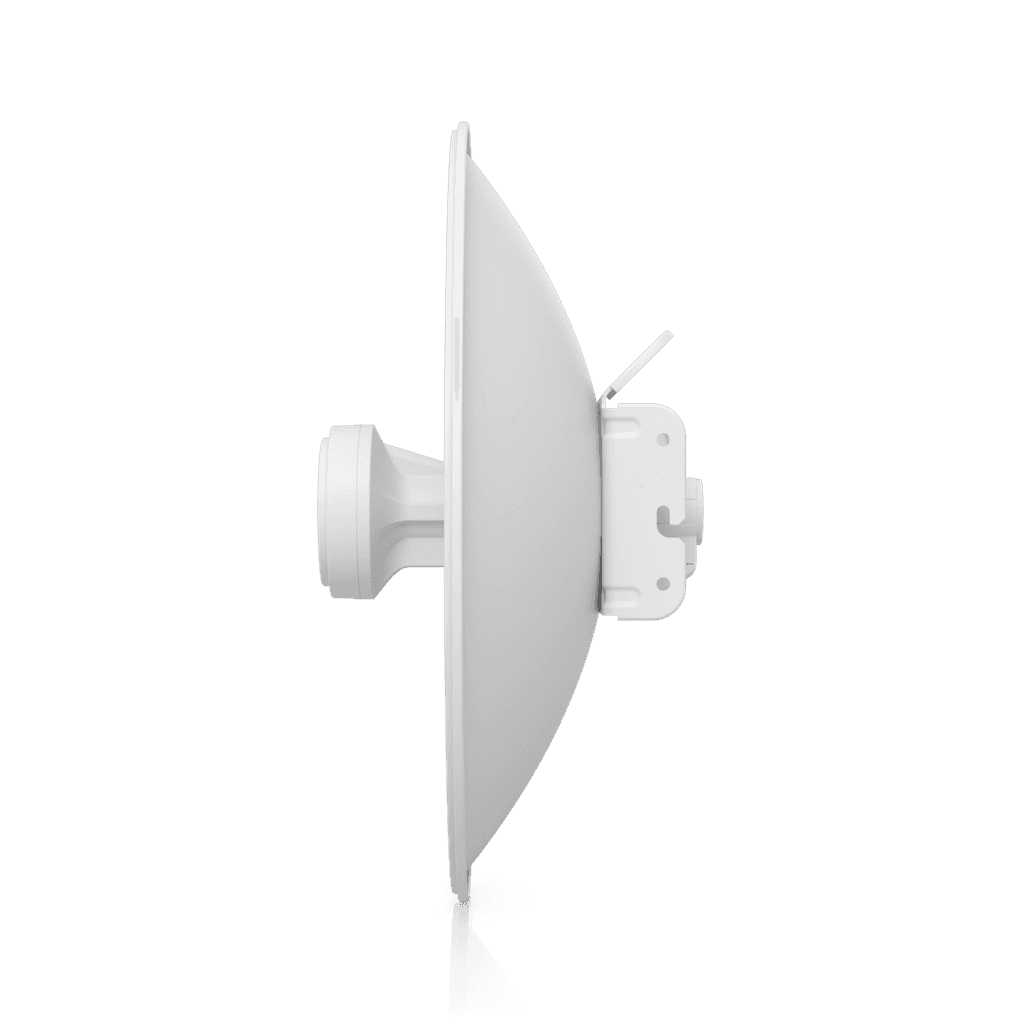

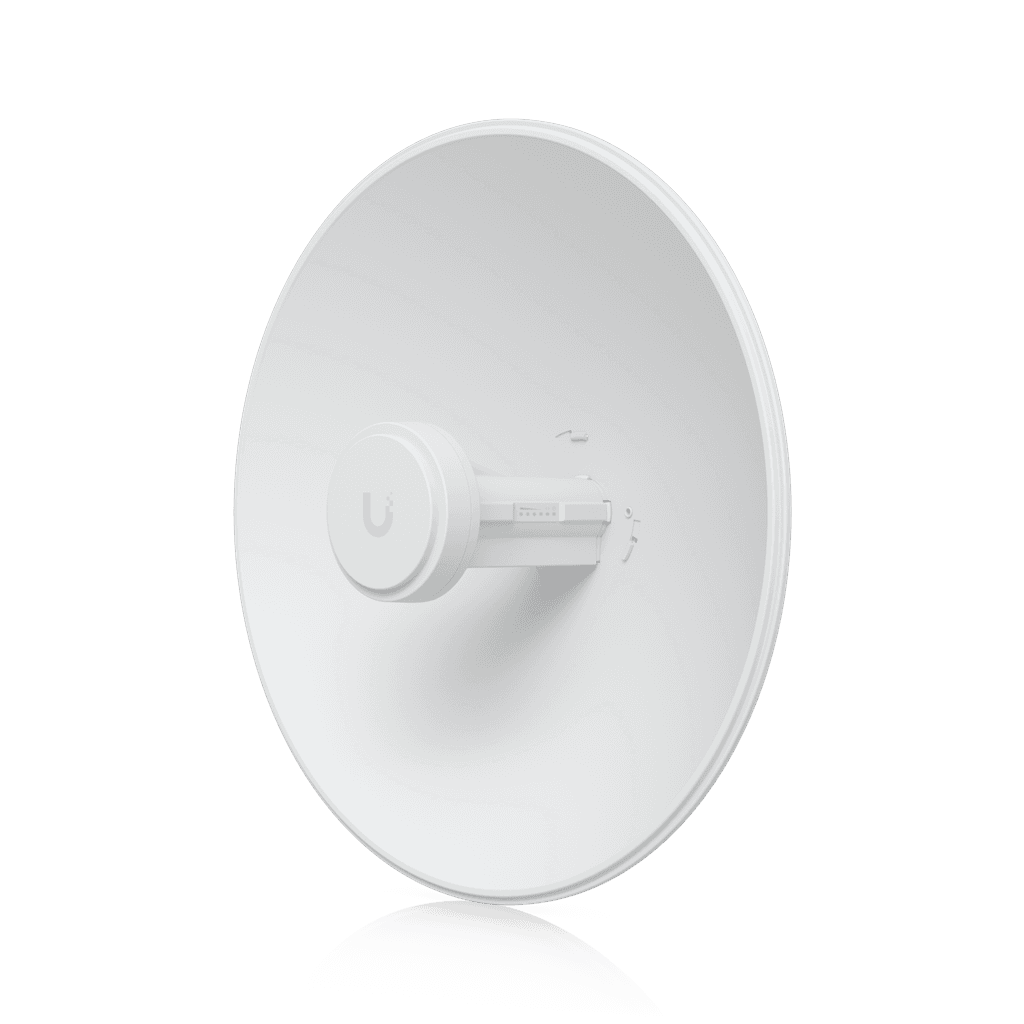

Ubiquiti airMAX PowerBeam 2AC 400 mm Bridge (PBE-2AC-400) — Authorized Ubiquiti Dealer in Texas
2.4 GHz WiFi antenna with a 450+ Mbps real TCP/IP throughput rate.
Texas Technology Group has supported businesses in Katy and across Texas since 2002. We recommend the airMAX PowerBeam 2AC 400 mm Bridge for rural internet distribution across Texas, and for wireless ISP (WISP) backhaul and customer links. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 2.4 GHz, 25+ km link range
- 450+ Mbps throughput
- Improved mounting
- Dedicated spectral analysis radio
airMAX PowerBeam 2AC 400 mm Bridge (PBE-2AC-400) Specifications
| Mechanical | |
|---|---|
| Dimensions | ⌀420 x 289 mm (⌀16.5 x 11.4") |
| Weight | 1.8 kg (4 lb) |
| Enclosure Materials | UV-stabilized plastic, powder-coated SPCC |
| Mounting | Pole mount kit (Included) |
| Wind Loading | 342.5 N at 200 km/h (77 lbf at125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 7.5W |
| ESD Protection | Air/contact: ± 24 kV |
| Buttons | (1) Factory reset |
| Certifications | CE, FCC, IC, RoHS |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| System | |
| Total Throughput | 450+ Mbps |
| Channel Bandwidth | 10/20/40 MHz |
| Antenna Gain | 18 dBi |
| Worldwide | 2412-2472 MHz |
| US/CA | 2412-2462 MHz |
| Management Radio (MHz) | |
| Worldwide | 5150-5250 MHz |
| US/CA | U-NII-3: 5725-5850 MHz |
