$129.99
Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
- Model: LBE-5AC-XR
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

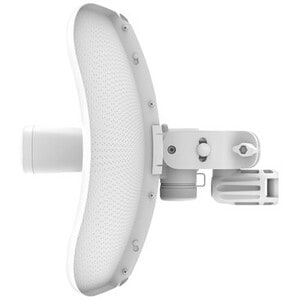

Ubiquiti airMAX LiteBeam 5AC XR (LBE-5AC-XR) — Authorized Ubiquiti Dealer in Texas
Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
Texas Technology Group has supported businesses in Austin and across Texas since 2002. We recommend the airMAX LiteBeam 5AC XR for connecting buildings, barns and gates across ranch and farm property, and for point-to-point links between campus buildings. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 5 GHz, 30+ km link range
- 450+ Mbps throughput
- Easy to assemble
airMAX LiteBeam 5AC XR (LBE-5AC-XR) Specifications
| Mechanical | |
|---|---|
| Dimensions | 747 x 525 x 347 mm (29.4 x 20.7 x 13.7") |
| Weight | 3.2 kg (7.1 lb) |
| Enclosure Materials | Aluminum alloy, UV stabilized polycarbonate |
| Mounting Material | UV stabilized polycarbonate |
| Mounting | Pole Mount (Integrated) |
| Pole Mount Diameter | ⌀35 to 60 mm (⌀1.38 to 2.36") |
| Wind Loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8- return) |
| Power Supply | 24V DC, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 22—27V DC |
| Max. Power Consumption | 7W |
| RF Connections | Internal |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtP PtMP |
| Management | Radio WEB UI (Quick device setup via the UISP™ Mobile app.) |
| System | |
| Total Throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Worldwide | 5.15 – 5.85 GHz (Depends on regulatory region.) |
| Max. Conducted TX Power | 25 dBm |
| Management Radio | 2400 – 2483.5 MHz |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Electrical Downtilt | 0° |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Sugar Land, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the airMAX LiteBeam 5AC XR at my business in Austin?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the LBE-5AC-XR covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: airMAX.
Additional information
| Weight | 12.35 lbs |
|---|
