$136.99
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.
- Model: IS-5AC
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

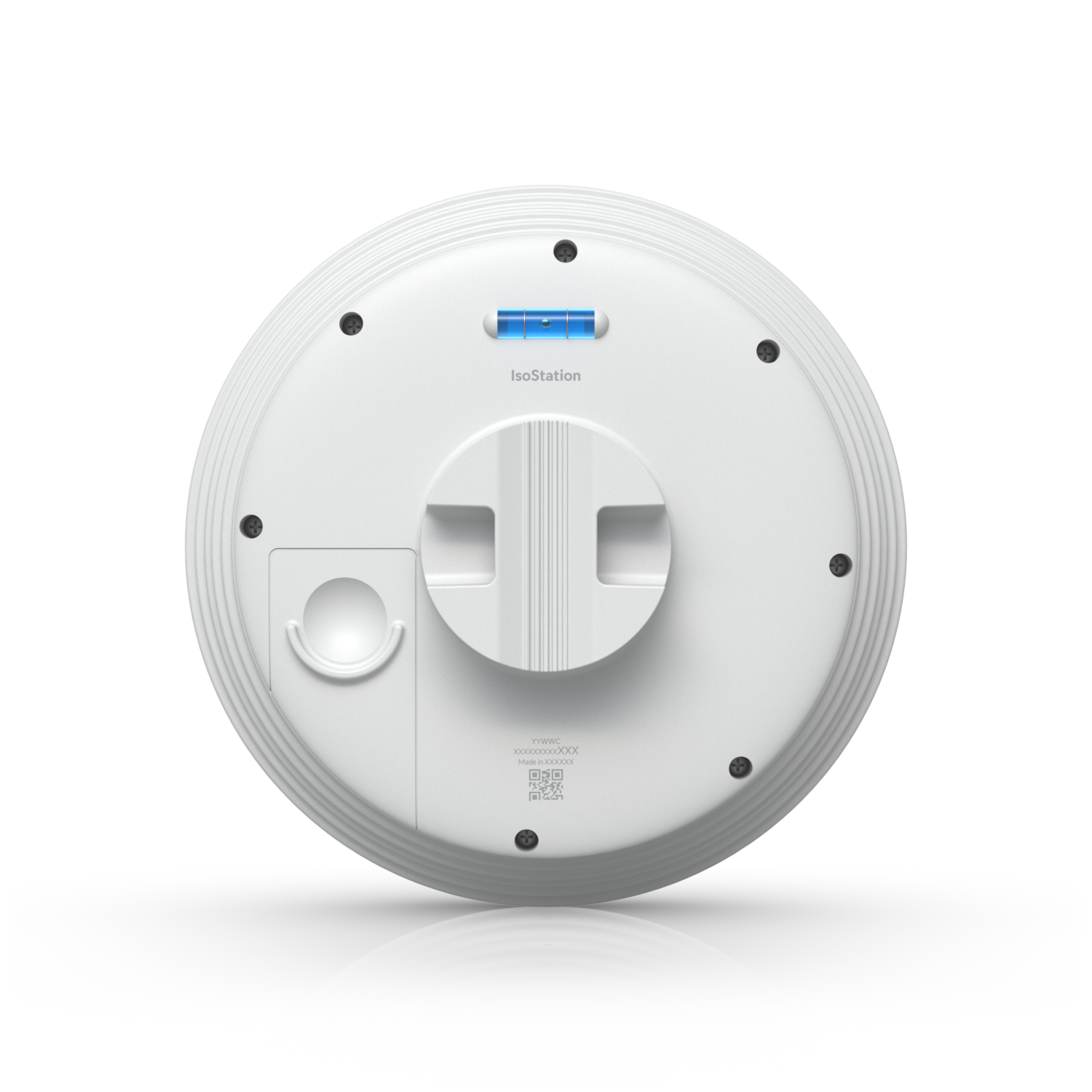

Ubiquiti airMAX IsoStation 5AC Bridge (IS-5AC) — Authorized Ubiquiti Dealer in Texas
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.
Texas Technology Group has supported businesses in Plano and across Texas since 2002. We recommend the airMAX IsoStation 5AC Bridge for point-to-point links between campus buildings, and for rural internet distribution across Texas. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 5 GHz, 10+ km link range
- 450+ Mbps throughput
- Isolation antenna design rejects RF noise
- Dedicated spectral analysis radio
airMAX IsoStation 5AC Bridge (IS-5AC) Specifications
| Mechanical | |
|---|---|
| Dimensions | Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6") With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9") |
| Weight | Without horn: 408.2 g (0.9 lb) With horn: 725.7 g (1.6 lb) |
| Mounting | Pole Mount (Included) |
| Wind Loading | 36N at 200 km/h (8.09 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 8.5W |
| Ambient Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Operating Modes | Access Point Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Antenna Gain | 14 dBi |
| Antenna beamwidth | 45° (Default Horn) |
| Radio Frequency | |
| Worldwide | 5150-5875 MHz |
| US/CA | U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 MHz |
| US/CA | 2412 – 2462 MHz |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Conroe, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the airMAX IsoStation 5AC Bridge at my business in Plano?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the IS-5AC covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: airMAX.
Additional information
| Weight | 3.15 lbs |
|---|
