$199.99
5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.
- Model: AM-5AC22-45
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

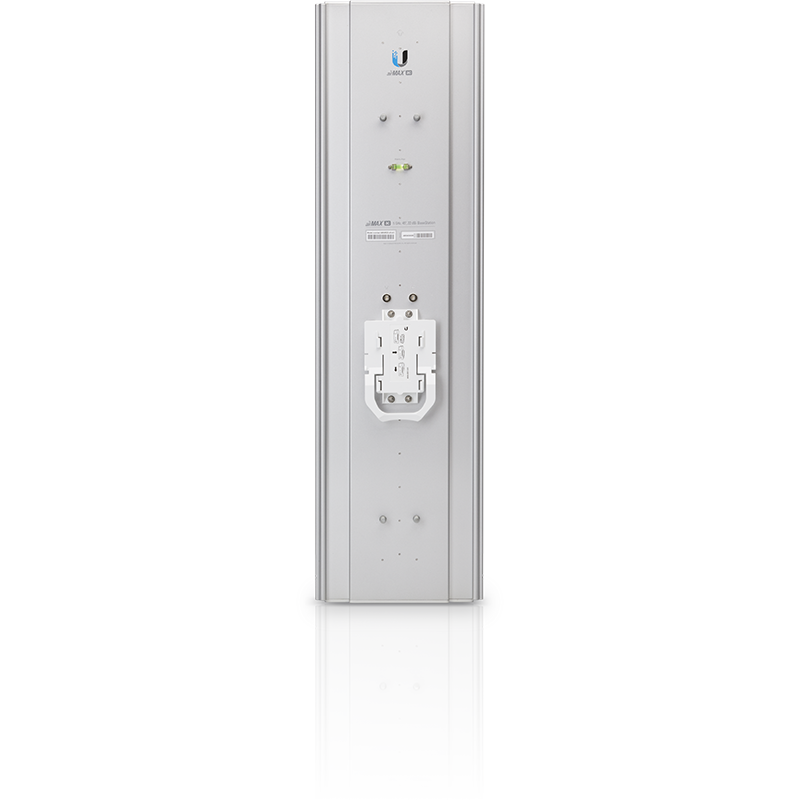

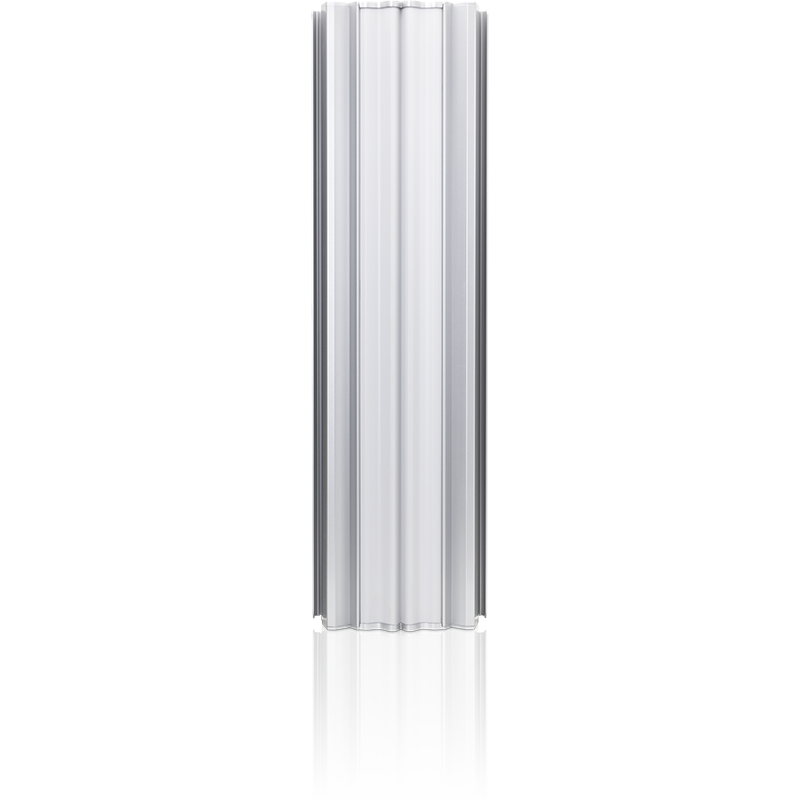

Ubiquiti airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna (AM-5AC22-45) — Authorized Ubiquiti Dealer in Texas
5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.
Texas Technology Group has supported businesses in El Paso and across Texas since 2002. We recommend the airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna for connecting buildings, barns and gates across ranch and farm property, and for point-to-point links between campus buildings. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 2×2 dual-polarity performance
- Robust mechanical design for outdoor application use
- Compatible with Rocket Prism 5AC
airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna (AM-5AC22-45) Specifications
| Mechanical | |
|---|---|
| Dimensions | 750 x 215 x 94 mm (29.5 x 8.5 x 3.7") |
| Weight | 6 kg (13.2 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N at 200 km/h (78 lbf at 125 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Hardware | |
| Frequency Range | 5.10—5.85 GHz |
| Antenna Gain | 22 dBi |
| Electrical Downtilt | 2° |
| Electrical Beamwidth | 4° |
| VPOL Beamwidth | 45° (6 dBi) |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 30 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Round Rock, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna at my business in El Paso?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the AM-5AC22-45 covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Antennas & Dishes.
Additional information
| Weight | 16.00 lbs |
|---|
