$125.99
5 GHz, 10 dBi carrier-class 2×2 dual-polarity MIMO omnidirectional antenna.
- Model: AMO-5G10
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

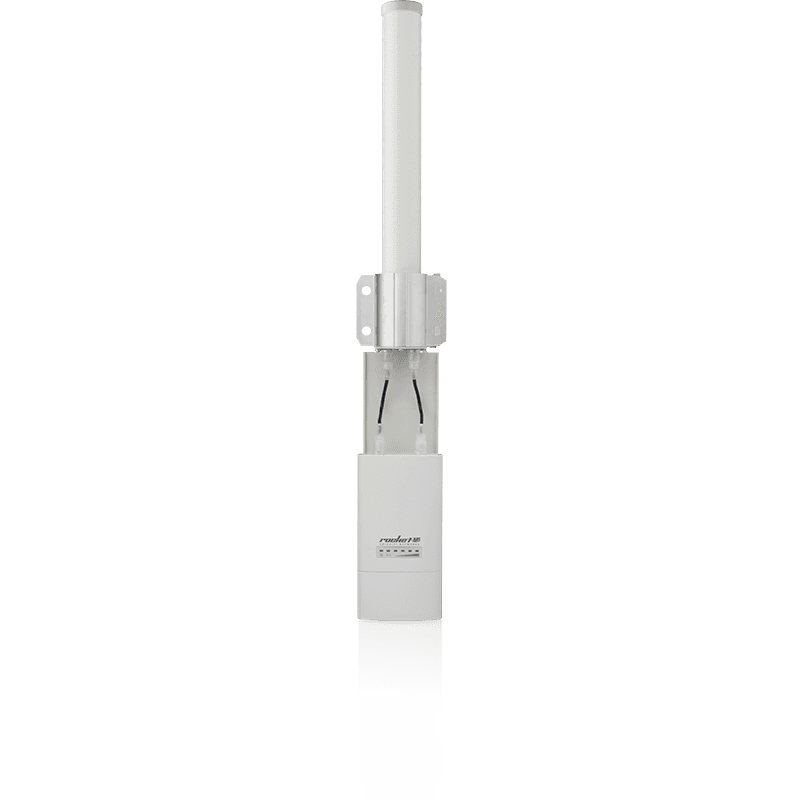

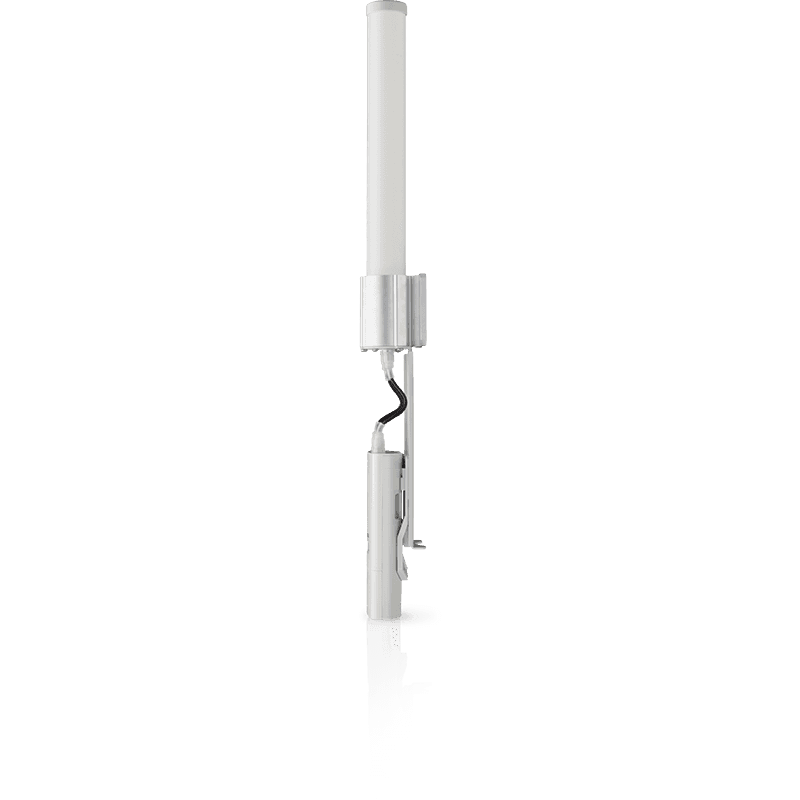

Ubiquiti airMAX 5 GHz, 10 dBi Omni Antenna (AMO-5G10) — Authorized Ubiquiti Dealer in Texas
5 GHz, 10 dBi carrier-class 2×2 dual-polarity MIMO omnidirectional antenna.
Texas Technology Group has supported businesses in Plano and across Texas since 2002. We recommend the airMAX 5 GHz, 10 dBi Omni Antenna for point-to-point links between campus buildings, and for rural internet distribution across Texas. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 2×2 dual-polarity MIMO
- 360° coverage
- Easy to assemble
- Compatible with RocketPrism
airMAX 5 GHz, 10 dBi Omni Antenna (AMO-5G10) Specifications
| Mechanical | |
|---|---|
| Dimensions | 582 x 90 x 65 mm (22.9 x 3.5 x 2.6") |
| Weight | 680 g (1.5 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 44.5 N at 160 km/h (10 lbf at 100 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Downtilt | 4° |
| Hardware | |
| Frequency Range | 5.45—5.85 GHz |
| Antenna Gain | 10 dBi |
| Elevation Beamwidth | 12° |
| Max. VSWR | 1.6:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Conroe, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the airMAX 5 GHz, 10 dBi Omni Antenna at my business in Plano?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the AMO-5G10 covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Antennas & Dishes.
Additional information
| Weight | 3.15 lbs |
|---|
