$29.99
Bidirectional protection for up to 10 GbE, PoE+++, and 20kA surge discharge for indoor installation.
- Model: UACC-ETH-SP-DIN
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

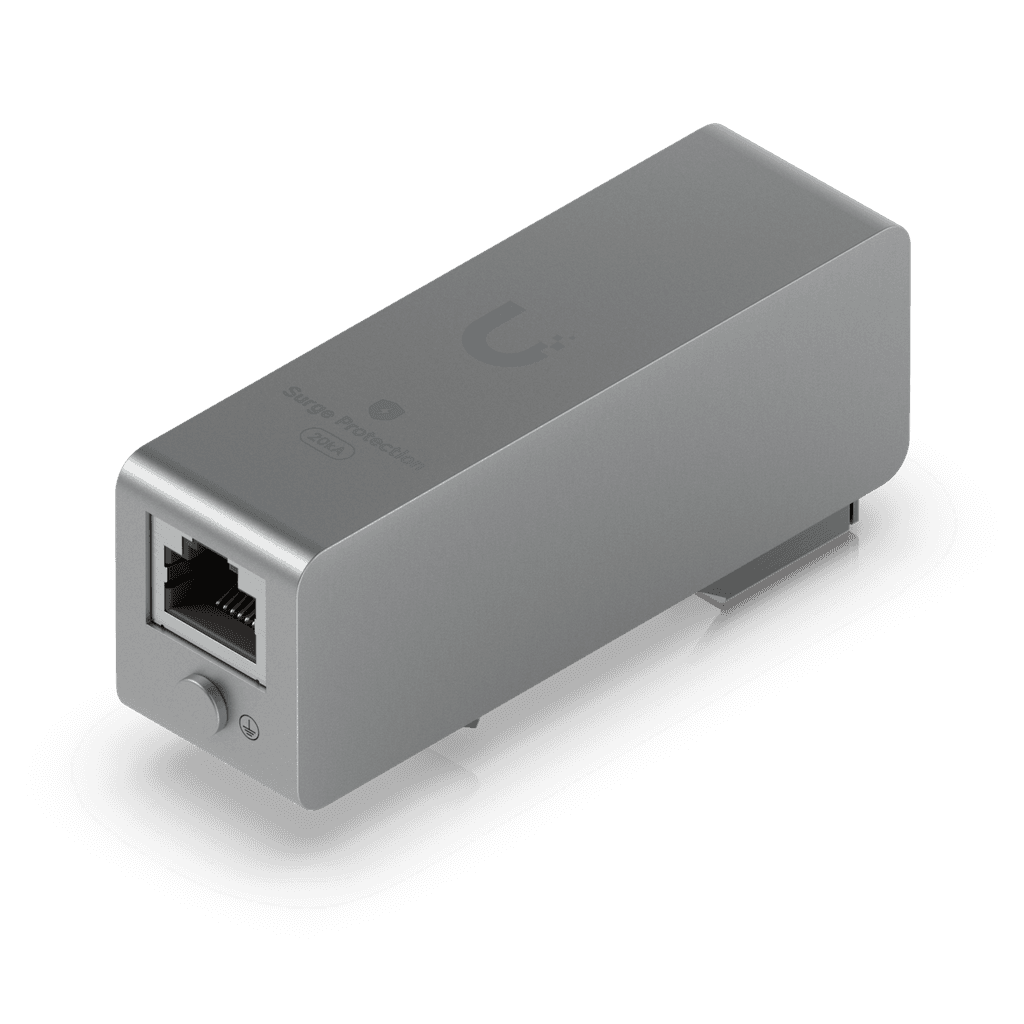

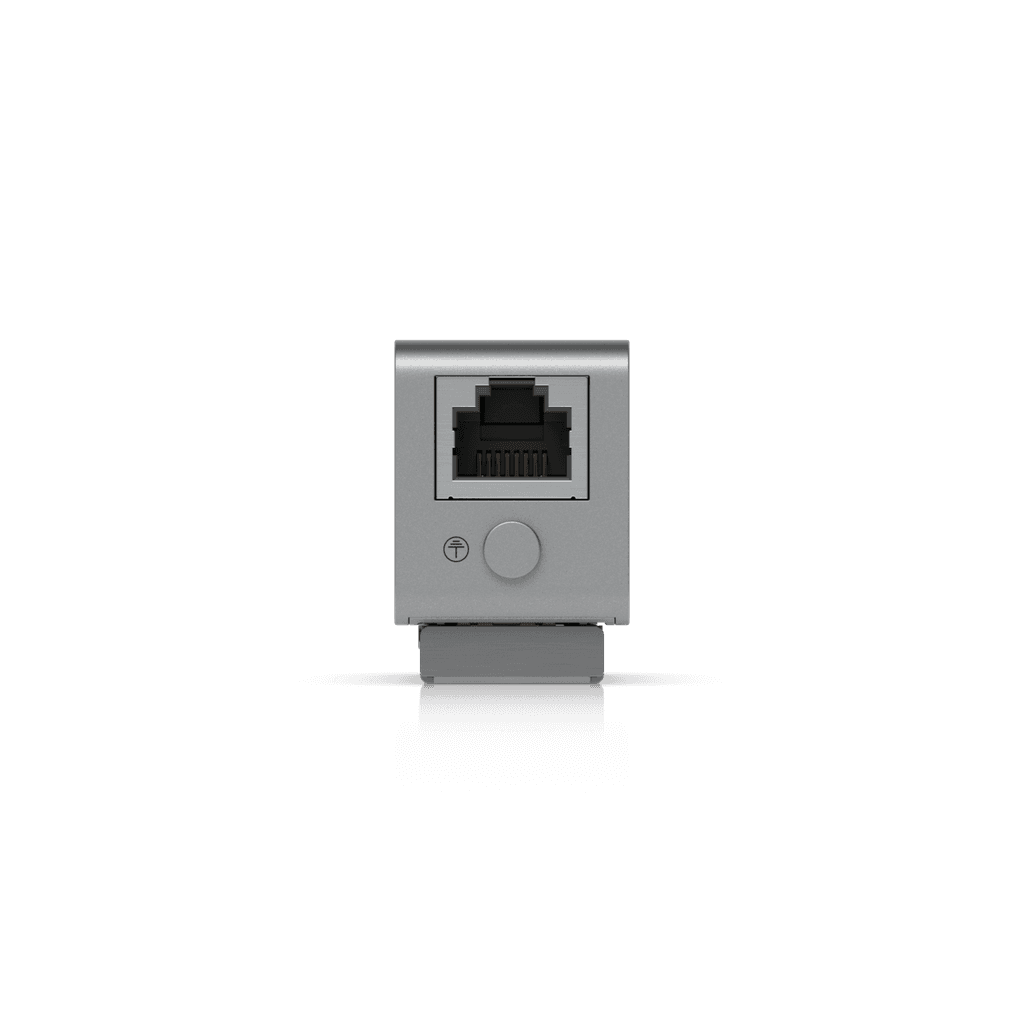

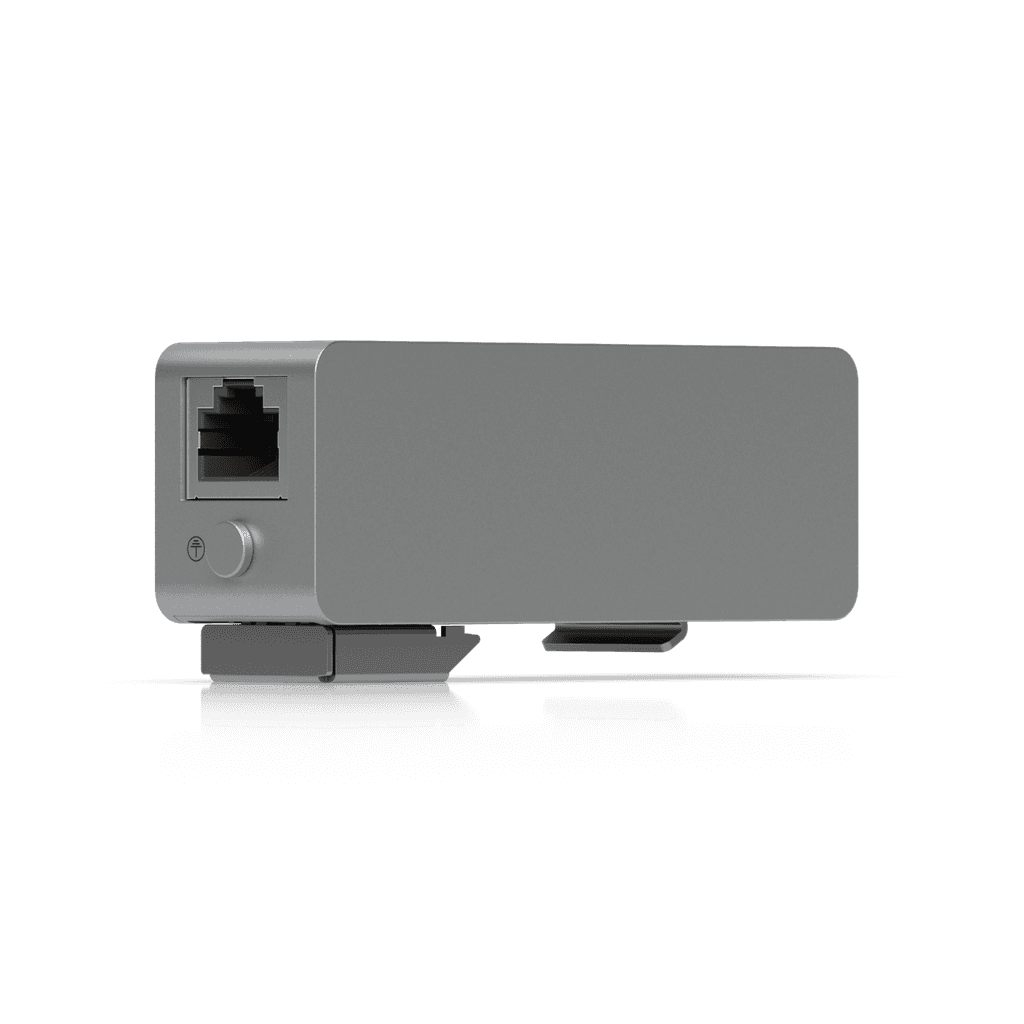

Ubiquiti UniFi Ethernet Surge Protection (Single-Port) (UACC-ETH-SP-DIN) — Authorized Ubiquiti Dealer in Texas
Bidirectional protection for up to 10 GbE, PoE+++, and 20kA surge discharge for indoor installation.
Texas Technology Group has supported businesses in San Antonio and across Texas since 2002. We recommend the UniFi Ethernet Surge Protection (Single-Port) for mounting and powering devices correctly the first time, and for keeping spare parts on hand for fast repairs. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Wall/DIN rail mount
- Multiple grounding points
UniFi Ethernet Surge Protection (Single-Port) (UACC-ETH-SP-DIN) Specifications
| Mechanical | |
|---|---|
| Dimensions | 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5") |
| Weight | 74 g (2.6 oz) |
| Enclosure Material | Polycarbonate, SGCC steel |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving The Woodlands, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Ethernet Surge Protection (Single-Port) at my business in San Antonio?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UACC-ETH-SP-DIN covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: PoE & Power.
Additional information
| Weight | 0.16 lbs |
|---|
