$175.99
Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.
- Model: UA-RETROFIT-READER-W
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

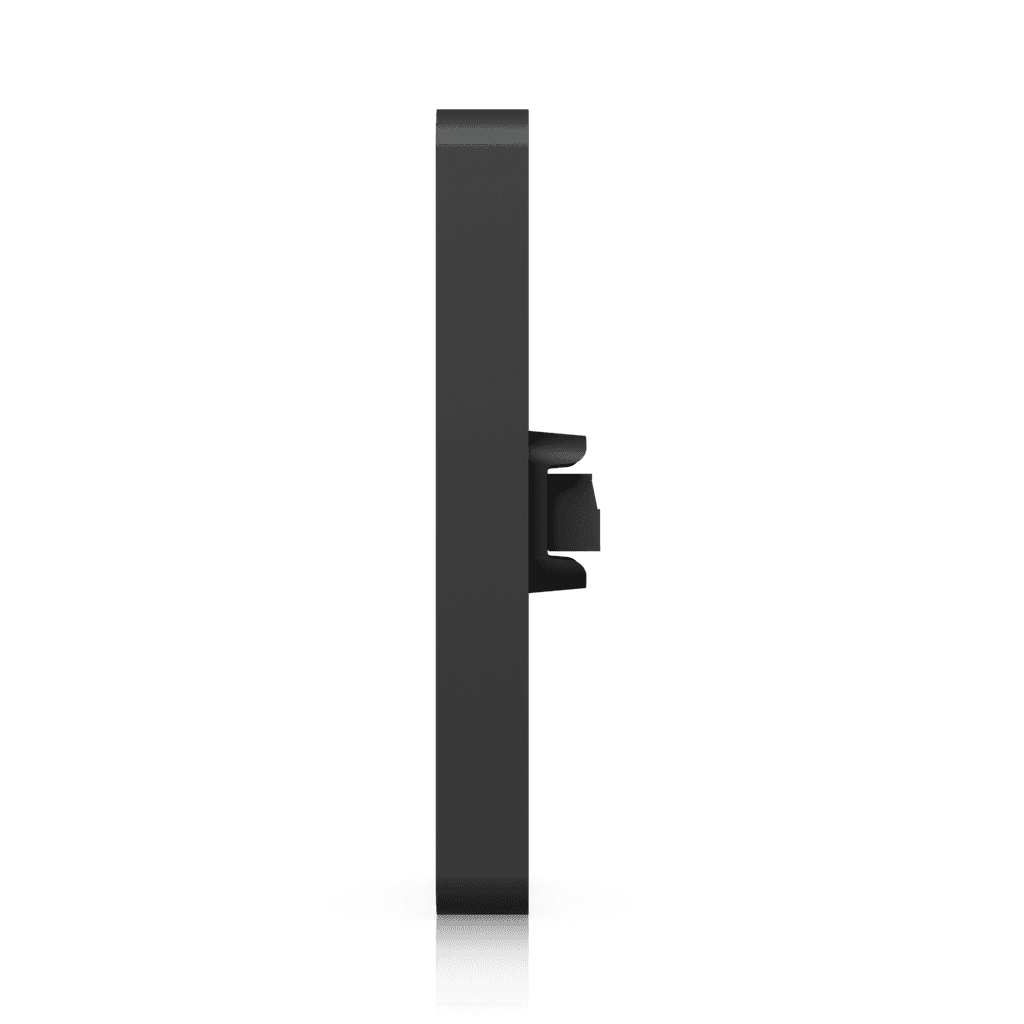

Ubiquiti UniFi Access Access Retrofit Reader (UA-RETROFIT-READER-W) — Authorized Ubiquiti Dealer in Texas
Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.
Texas Technology Group has supported businesses in Dallas and across Texas since 2002. We recommend the UniFi Access Access Retrofit Reader for audit trails of who opened which door and when, and for scheduling door unlocks for business hours. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- White Indoor, Outdoor
- Near-field communication (NFC), Key Fob, Mobile Key Application
- Bluetooth
- Serial
- 12 V DC
- Wall Mountable, Gangbox Mount
UniFi Access Access Retrofit Reader (UA-RETROFIT-READER-W) Specifications
| Apple | Touch Pass |
|---|---|
| NFC | NFC |
| Weatherproof | Outdoor Exposed |
| Overview | |
| Dimensions | 117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5") |
| UniFi Application Suite | Access |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |
| Mounting | Wall, gang-box mount (Included) Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Connectivity | RS-485 BLE 4.1 NFC |
| Security | OSDP v2 |
| Power Method | DC 12V |
| Max. Power Consumption | 2.5W |
| Supported Voltage Range | 12V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Corpus Christi, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Access Access Retrofit Reader at my business in Dallas?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UA-RETROFIT-READER-W covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Access Readers.
Additional information
| Weight | 0.18 lbs |
|---|
