$395.99
5 GHz, 22 dBi bridge with 100+ Mbps throughput.
- Model: PBE-M5-300
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

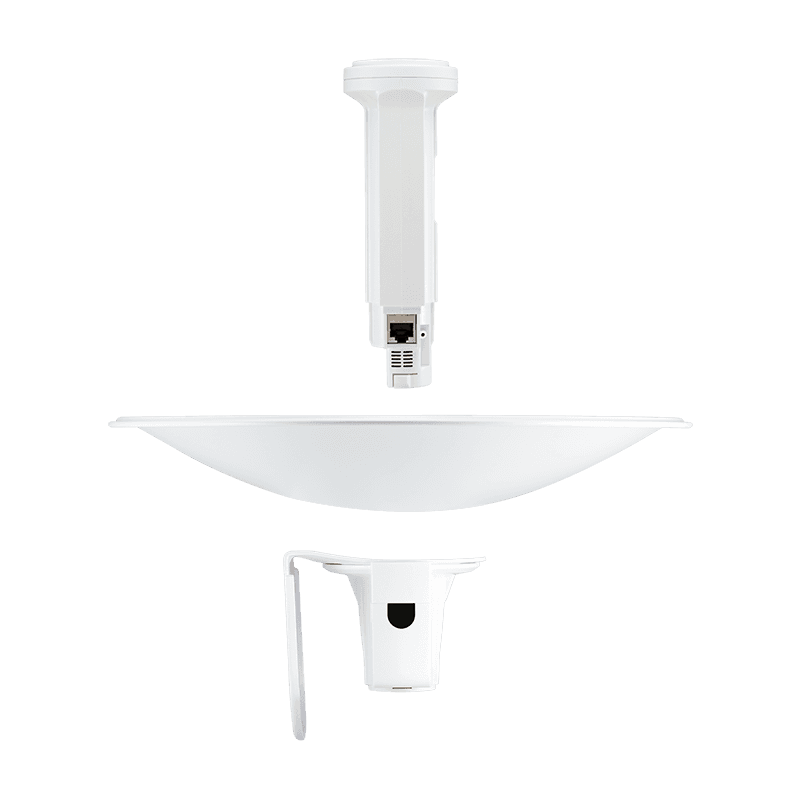

Ubiquiti airMAX PowerBeam M5 300 mm Bridge (PBE-M5-300) — Authorized Ubiquiti Dealer in Texas
5 GHz, 22 dBi bridge with 100+ Mbps throughput.
Texas Technology Group has supported businesses in Corpus Christi and across Texas since 2002. We recommend the airMAX PowerBeam M5 300 mm Bridge for point-to-point links between campus buildings, and for rural internet distribution across Texas. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 5 GHz, 3+ km link range
- 100+ Mbps throughput
- Improved mounting
airMAX PowerBeam M5 300 mm Bridge (PBE-M5-300) Specifications
| Mechanical | |
|---|---|
| Dimensions | 325 x 325 x 256 mm (12.8 x 12.8 x 10.1") |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) |
| Wind Loading | 200.2 N @ 200 km/h (45 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) 10/100 MbE port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 6W |
| Ambient Operating Temperature | -40 to 70° C(-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC,RoHS, Anatel: 01107-15-08356 |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| System | |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-linear |
| Radio Frequency | |
| Worldwide | 5150 – 5875 MHz |
| US/CA | U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5470-5725 MHz U-NII-3: 5725-5850 MHz |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Corpus Christi, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the airMAX PowerBeam M5 300 mm Bridge at my business in Corpus Christi?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the PBE-M5-300 covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: airMAX.
Additional information
| Weight | 19.30 lbs |
|---|
