Description

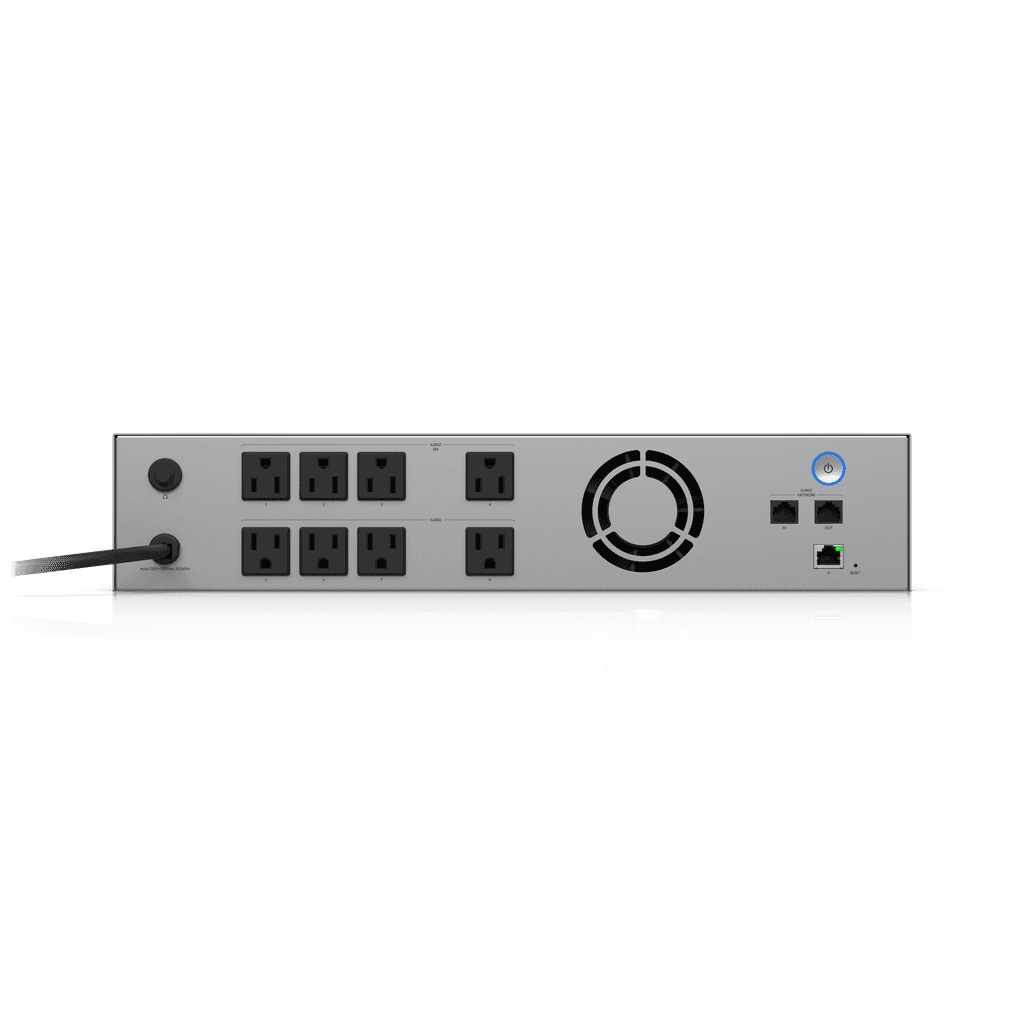

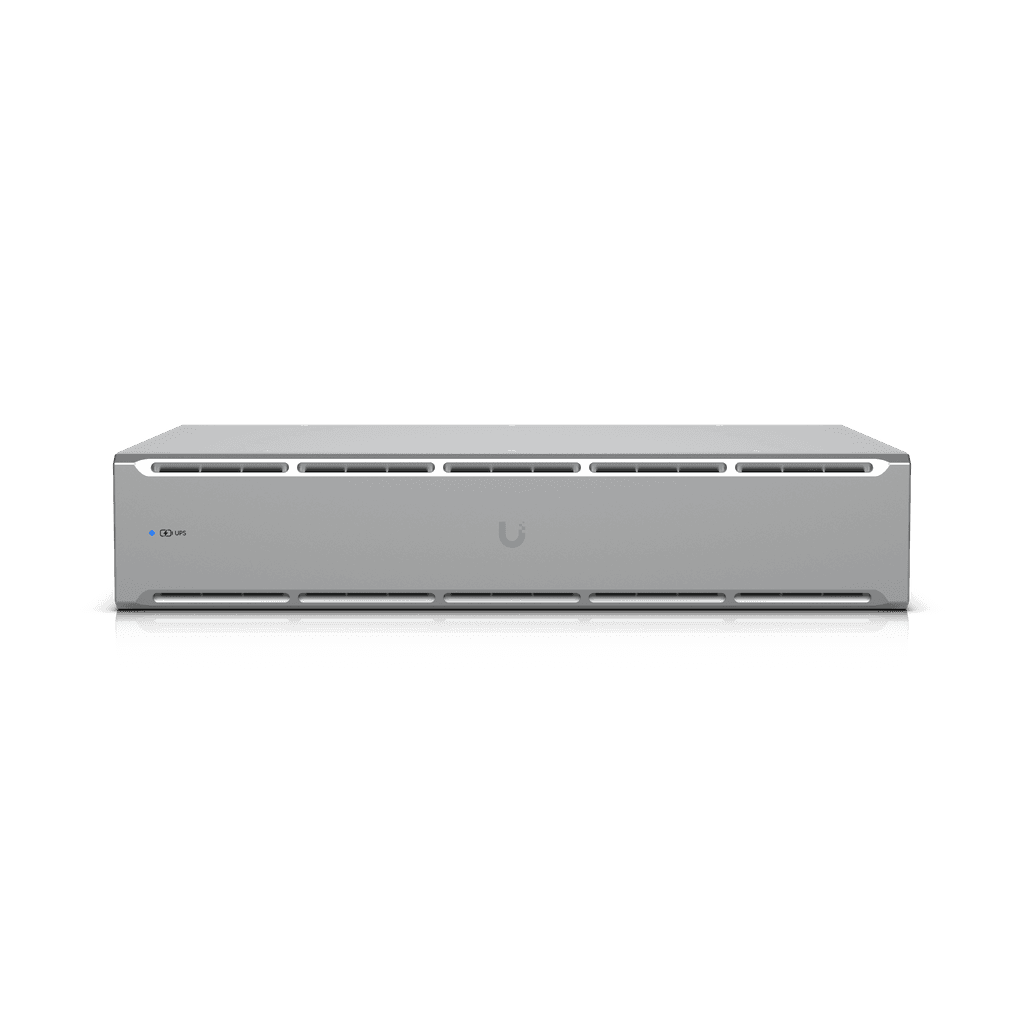

Ubiquiti UniFi UPS 2U — Authorized Ubiquiti Dealer in Texas
UniFi managed 1.44kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
Texas Technology Group has supported businesses in Sugar Land and across Texas since 2002. We recommend the UniFi UPS 2U for keeping spare parts on hand for fast repairs, and for completing a clean, professional UniFi installation. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 2U Rack-mountable
- 8 Hour Recharge
- 2.30 Minute Stand-by
- 120 V AC Input
- 120 V AC Output
- Simulated Sine Wave
- 8 x NEMA 5-15R Receptacle(s)
UniFi UPS 2U (UPS-2U) Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4") |
| Weight | 14 kg (30.9 lb) |
| Enclosure Material | Galvanized steel |
| Form Factor | Rack mount (2U) |
| Weatherproofing | IP20 |
| Hardware | |
| Management | Ethernet |
| Networking Interface | (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out |
| Power | (1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord (4) Battery backup/surge protection: NEMA 5‑15R (4) Surge protection: NEMA 5‑15R (Outlets are not individually resettable) |
| Capacity | 1,440VA/1,000W |
| Type | Line interactive |
| Input Voltage Range | 89–145V AC |
| Power Method | (1) TN system, 120V AC, 12A Max., 50/60 Hz |
| Nominal Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 60 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (2) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2.3 min Half load: 8 min |
| Battery Charging Time | 6-8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault 120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec 120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 15A |
| Output Short-Circuit Current | Ipeak 348.0A Irms 115.1A |
| Buttons | (1) Power (1) Factory reset |
| Status | Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | FCC, IC, UL 1778, CSA C22.2 No. 107.3 |
