$754.99
A 24-port, Layer 3 switch capable of high-power PoE++ output.
- Model: USW-PRO-24-POE
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

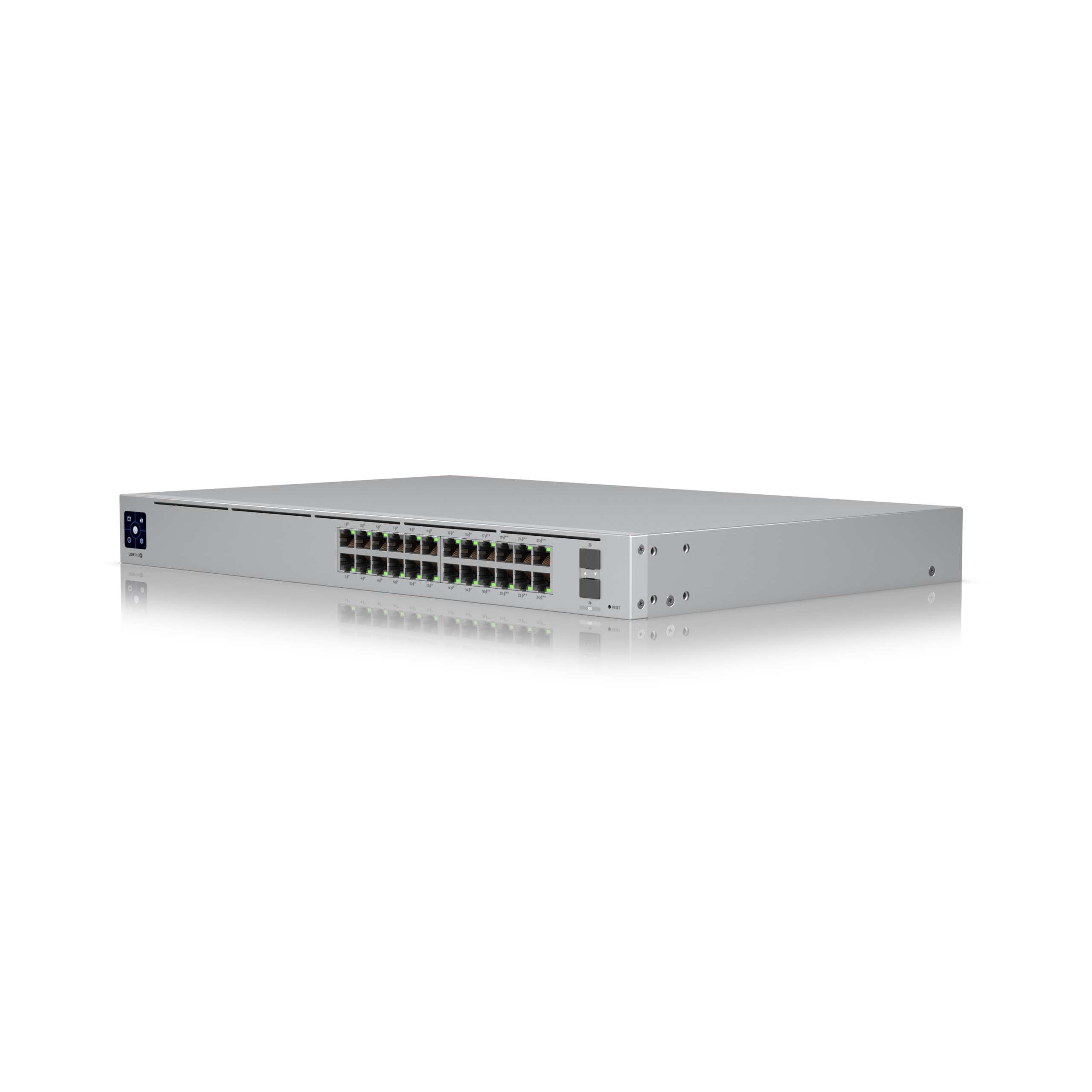

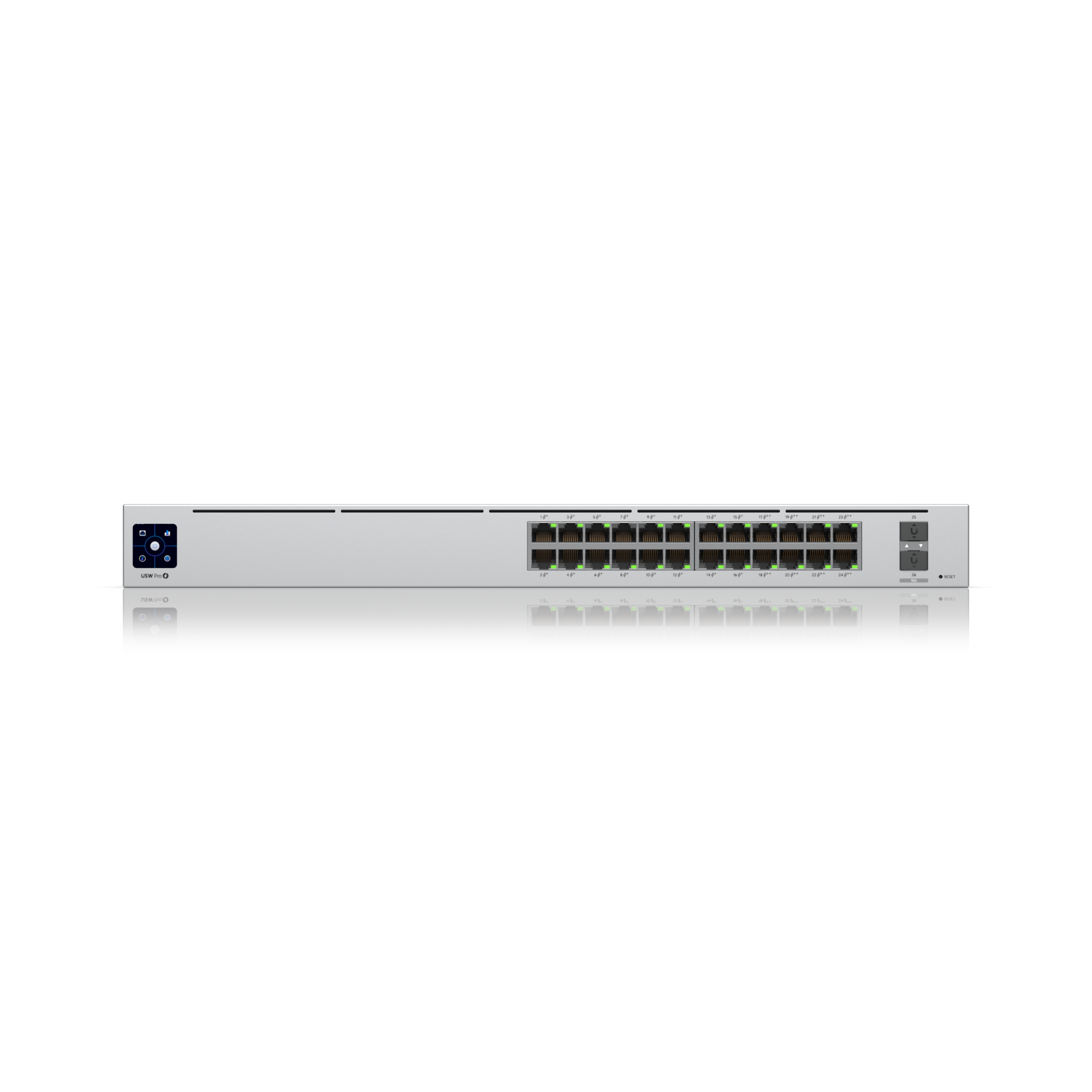

Ubiquiti UniFi Switch Pro 24 PoE (USW-PRO-24-POE) — Authorized Ubiquiti Dealer in Texas
A 24-port, Layer 3 switch capable of high-power PoE++ output.
Texas Technology Group has supported businesses in Katy and across Texas since 2002. We recommend the UniFi Switch Pro 24 PoE for a clean, centrally managed office network closet, and for segmenting guest, staff and device traffic with VLANs. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- (16) GbE PoE+, (8) GbE PoE++ ports
- (2) 10G SFP+ ports
- 400W total PoE availability
- DC power backup-ready
- Layer 3 switching
- Near-silent cooling
UniFi Switch Pro 24 PoE (USW-PRO-24-POE) Specifications
| Overview | |
|---|---|
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| 1 GbE RJ45 | 24 (16 PoE+; 8 PoE++) (1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup (With UniFi RPS) |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 88 Gbps |
| Total Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 2 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
| Hardware | |
| PoE+ | 16 |
| PoE++ | 8 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| Max. Power Consumption | 50W (Excluding PoE Output) 450W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 450W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 170.6 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb) |
| Enclosure Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 13790-20-08356 |
| Software | |
| UniFi Network | Version 5.10.5 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Conroe, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Switch Pro 24 PoE at my business in Katy?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the USW-PRO-24-POE covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Professional Switches.
Additional information
| Weight | 12.50 lbs |
|---|
