$970.99
A 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
- Model: USW-PRO-AGGREGATION
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

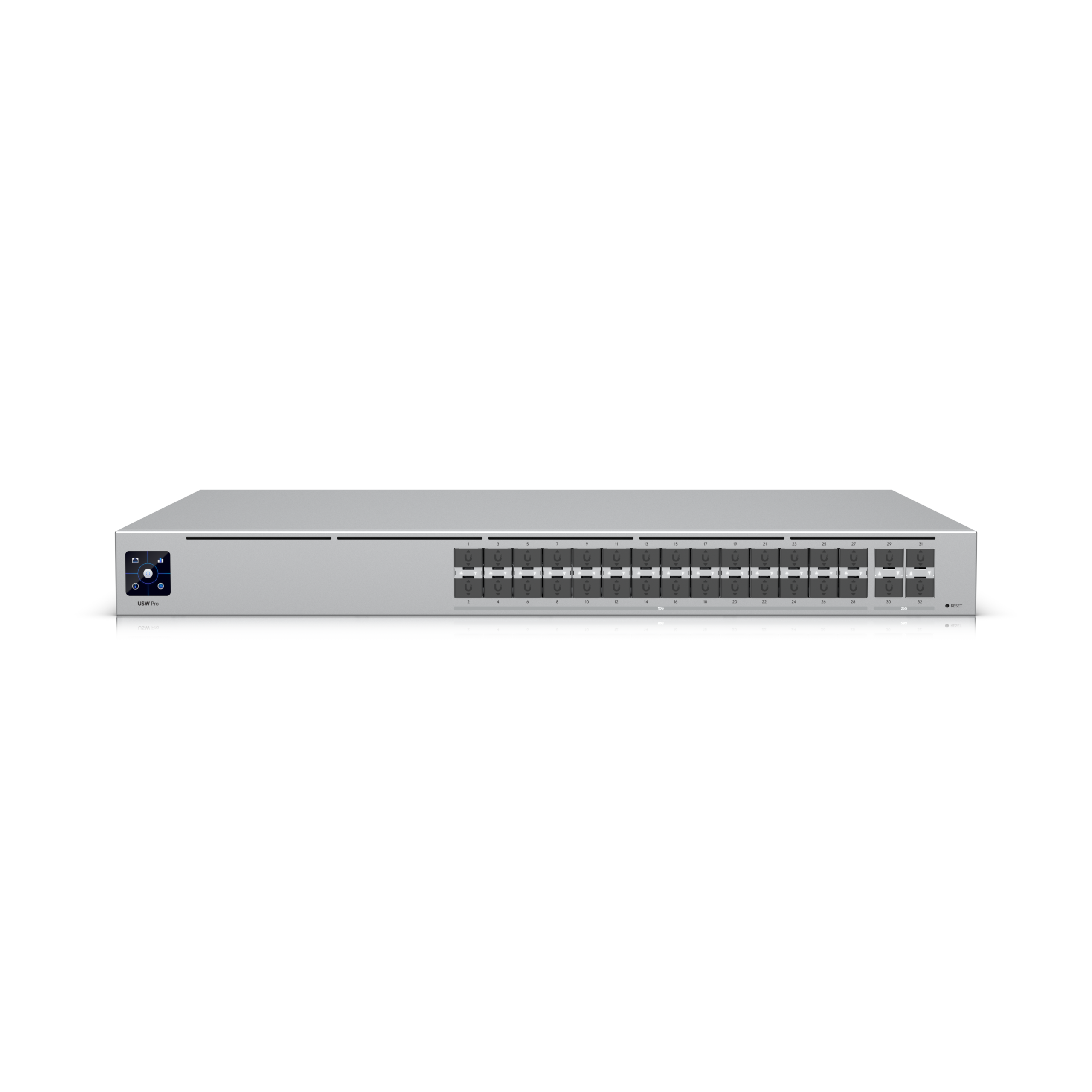

Ubiquiti UniFi Switch Hi-Capacity Aggregation (USW-PRO-AGGREGATION) — Authorized Ubiquiti Dealer in Texas
A 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
Texas Technology Group has supported businesses in El Paso and across Texas since 2002. We recommend the UniFi Switch Hi-Capacity Aggregation for scaling from a small office to a multi-floor building, and for powering access points, cameras and VoIP phones over PoE. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- (28) 10G SFP+ ports
- (4) 25G SFP28 ports
- DC power backup-ready
- Layer 3 switching
UniFi Switch Hi-Capacity Aggregation (USW-PRO-AGGREGATION) Specifications
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| 10G SFP+ | 28 (10G/1G) |
| 25G SFP28 | 4 (25G/10G/1G) |
| Redundancy | DC Power Backup (With UniFi RPS) |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 760 Gbps |
| Total Non-Blocking Throughput | 380 Gbps |
| Forwarding Rate | 565 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 4 MB |
| IPv4 | 128 |
| MAC | 128 |
| Hardware | |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 341 BTU/hr |
| Weight | Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 20756-22-08356 |
| Software | |
| UniFi Network | Version 6.1.25 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Pearland, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Switch Hi-Capacity Aggregation at my business in El Paso?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the USW-PRO-AGGREGATION covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Aggregation Switches.
Additional information
| Weight | 13.00 lbs |
|---|
