$430.99
32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.
- Model: UP-ALARMHUB-KIT
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

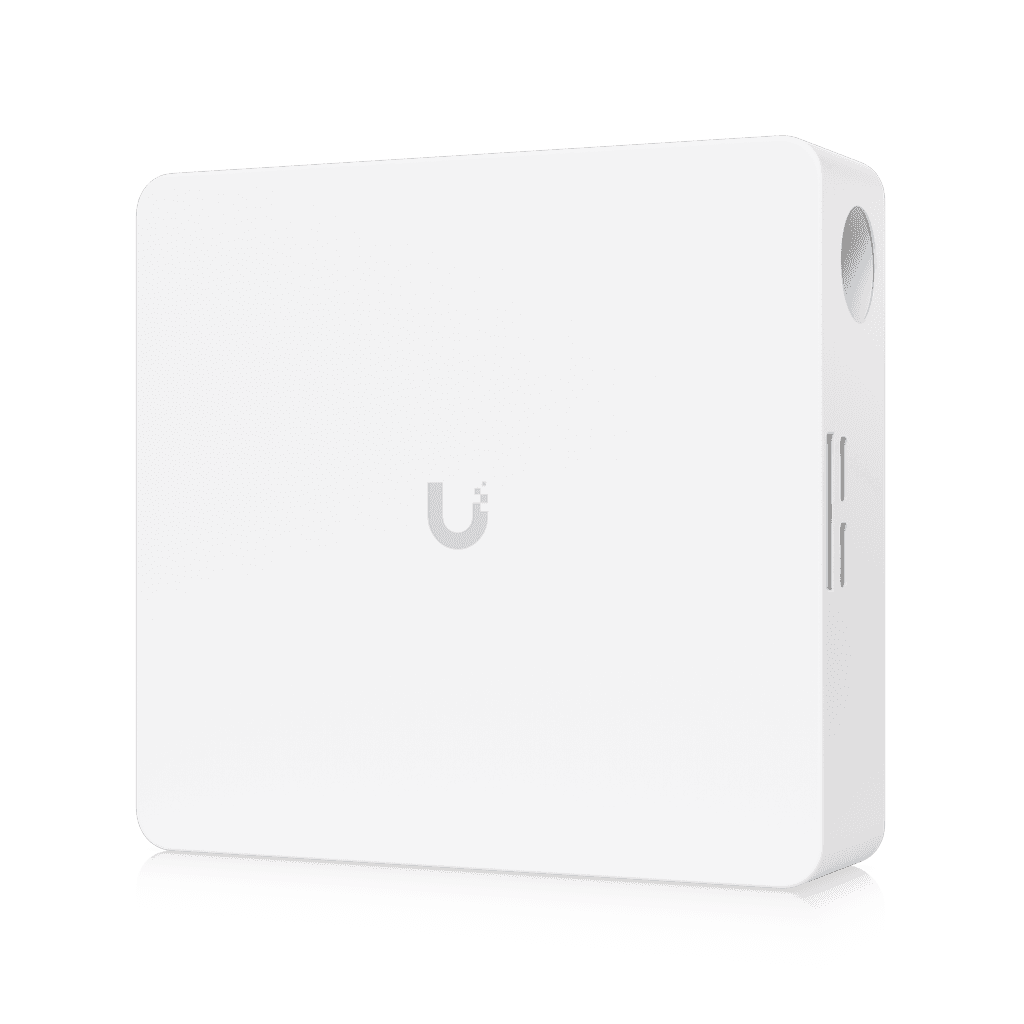

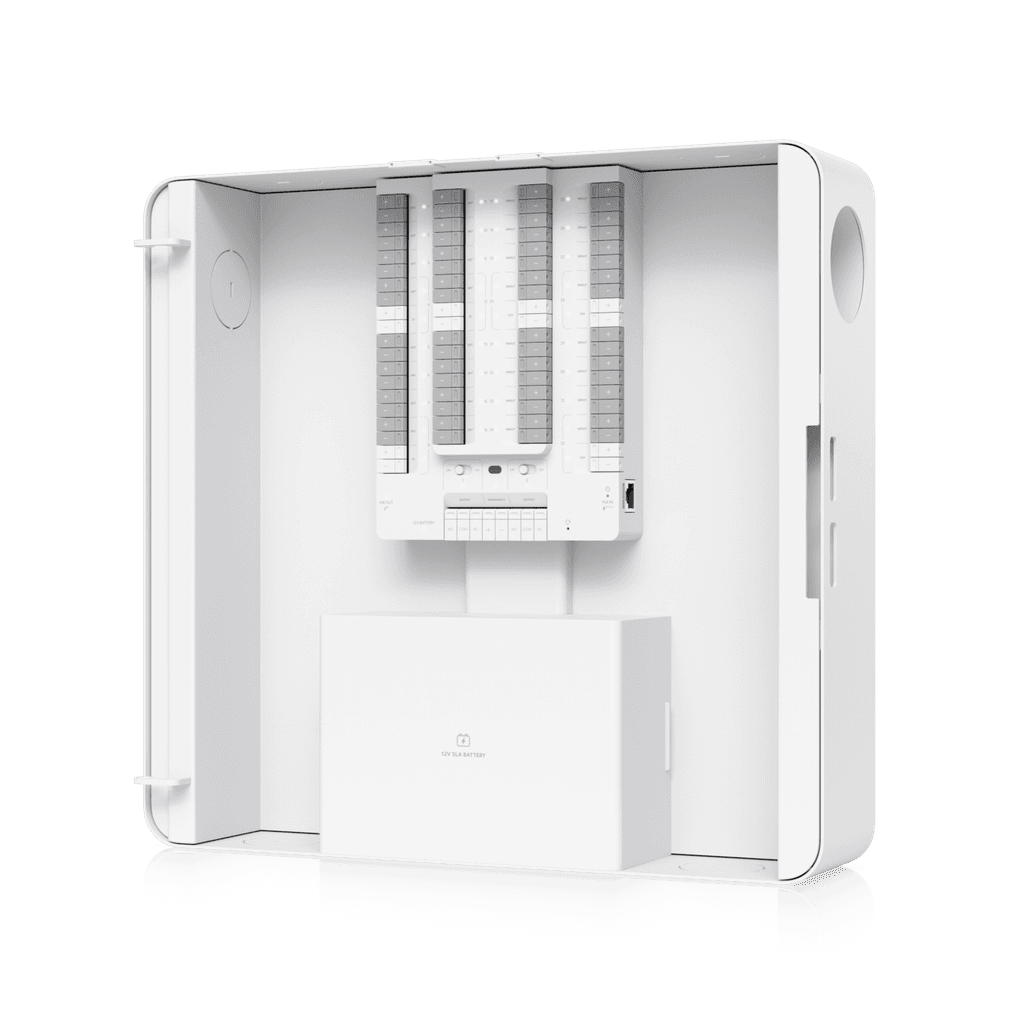

Ubiquiti UniFi Protect Protect Alarm Hub Kit (UP-ALARMHUB-KIT) — Authorized Ubiquiti Dealer in Texas
32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.
Texas Technology Group has supported businesses in Houston and across Texas since 2002. We recommend the UniFi Protect Protect Alarm Hub Kit for remote viewing from the UniFi Protect app anywhere, and for 24/7 video surveillance with no monthly subscription fees. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
UniFi Protect Protect Alarm Hub Kit (UP-ALARMHUB-KIT) Specifications
| AUX Terminals | 2 AUX Terminals |
|---|---|
| PoE | 1 PoE Port |
| Overview | |
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| Input Terminals | (32) Alarm sensor (1) Emergency |
| Power Method | PoE++/PoE+++ 12V SLA battery |
| Power Output Availability | PoE+++ input: 68W PoE++ input: 42W (Max. combined power from PoE+ output, 12V aux power outputs, and 12V relay outputs) |
| Mechanical | |
| Weight | Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb) |
| Enclosure Material | SGCC steel housing with polycarbonate cover |
| Mount Material | SGCC steel |
| Mounting | Wall |
| Hardware | |
| Digital Input | (32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency (End-of-line (EOL) resistors enable the detection of wiring faults between the Alarm Hub and the sensor) |
| Output Relay | (2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A |
| Aux Power Output | For sensor: (3) 12V DC, 1A right side total, (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| PoE Interface | (1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption | 90W |
| Battery Charge | SLA backup battery, 12V, 0.3A |
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset (2) Dry/Wet switch |
| Certifications | CE, FCC, IC |
| Software | |
| UniFi Protect | Version 7.0.88 and later |
| Mobile App | UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Corpus Christi, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Protect Protect Alarm Hub Kit at my business in Houston?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UP-ALARMHUB-KIT covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Sensors & Alarms.
Additional information
| Weight | 18.3 lbs |
|---|
