$549.99
Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.
- Model: UC-EV-STATION-LITE
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

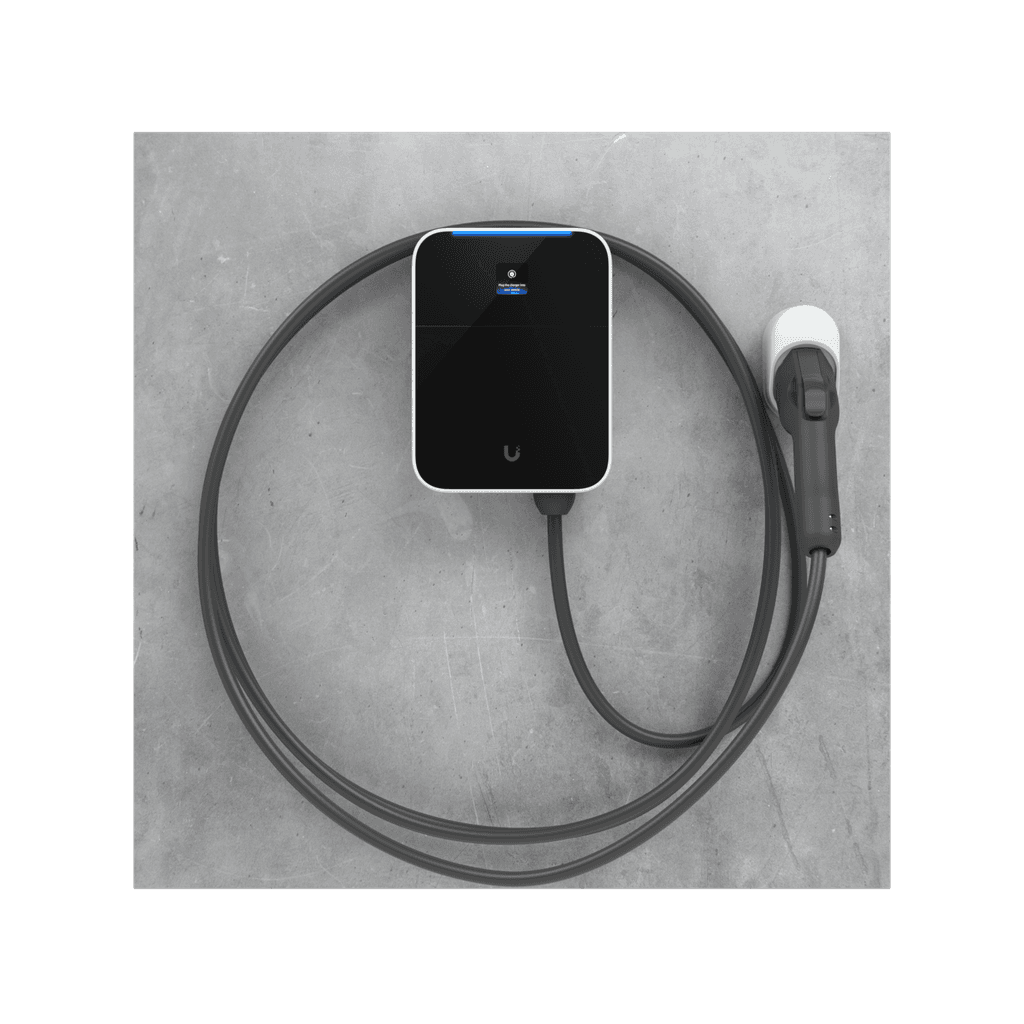

Ubiquiti UniFi EV Station Lite (UC-EV-STATION-LITE) — Authorized Ubiquiti Dealer in Texas
Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.
Texas Technology Group has supported businesses in Dallas and across Texas since 2002. We recommend the UniFi EV Station Lite for business continuity with automatic failover, and for simplifying vendor management with one platform. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 11 kW max charging output with SAE J1772 charging plug
- 1.7" LCM display
- Access control with UniFi Identity mobile app and NFC card*
- Connected with UniFi WiFi Auto-Link or Ethernet
- UL certified
- Hardwire installation
- Wallmount kit included
- *UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration. Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.
UniFi EV Station Lite (UC-EV-STATION-LITE) Specifications
| Overview | |
|---|---|
| Dimensions | 254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”) |
| Mounting | Wall Mount or Stand |
| Power Input | 200–240V ~ 50A, 50/60Hz, 1φ |
| Power Output | 200–240V ~ 50A, 50/60Hz, 1φ |
| Weatherproofing | Type 3R |
| Mechanical | |
| Weight | 5.9 kg (13 lb) |
| Enclosure Material | Polycarbonate |
| Charging Cable Length | 7 m (23 ft) |
| Hardware | |
| Size | 1.7" status display |
| Processor | Dual-core Arm® Cortex®-A53, 1 GHz |
| Connectivity | (1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi |
| Max. load | 70A: 50A 60A: 48A 50A: 40A 40A: 32A 30A: 24A 20A: 16A (The circuit must be rated for 125% of the maximum load. EV Station Lite can be wired to support higher amperages. Please consult your electrical code for breaker and wire sizing requirements. The field-wiring terminal is rated up to 105° C and is compatible with wiring up to 16 mm² (6 AWG).) |
| Plug-in | 70A: No 60A: No 50A: Yes 40A: Yes 30A: Yes 20A: Yes |
| Hardwired | 70A: Yes 60A: Yes 50A: Yes 40A: Yes 30A: Yes 20A: Yes |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Ambient Operating Temperature | -40 to 50° C (-40 to 122° F) |
| Certifications | FCC, IC, UL |
| Software | |
| Management Application | UniFi Connect: Version 3.14.4 and later. UniFi Connect iOS™ and Android™: Version 2.18 and later. |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Plano, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi EV Station Lite at my business in Dallas?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UC-EV-STATION-LITE covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Smart Building & IoT.
Additional information
| Weight | 19.20 lbs |
|---|
