$556.99
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
- Model: UDR-5G-MAX
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

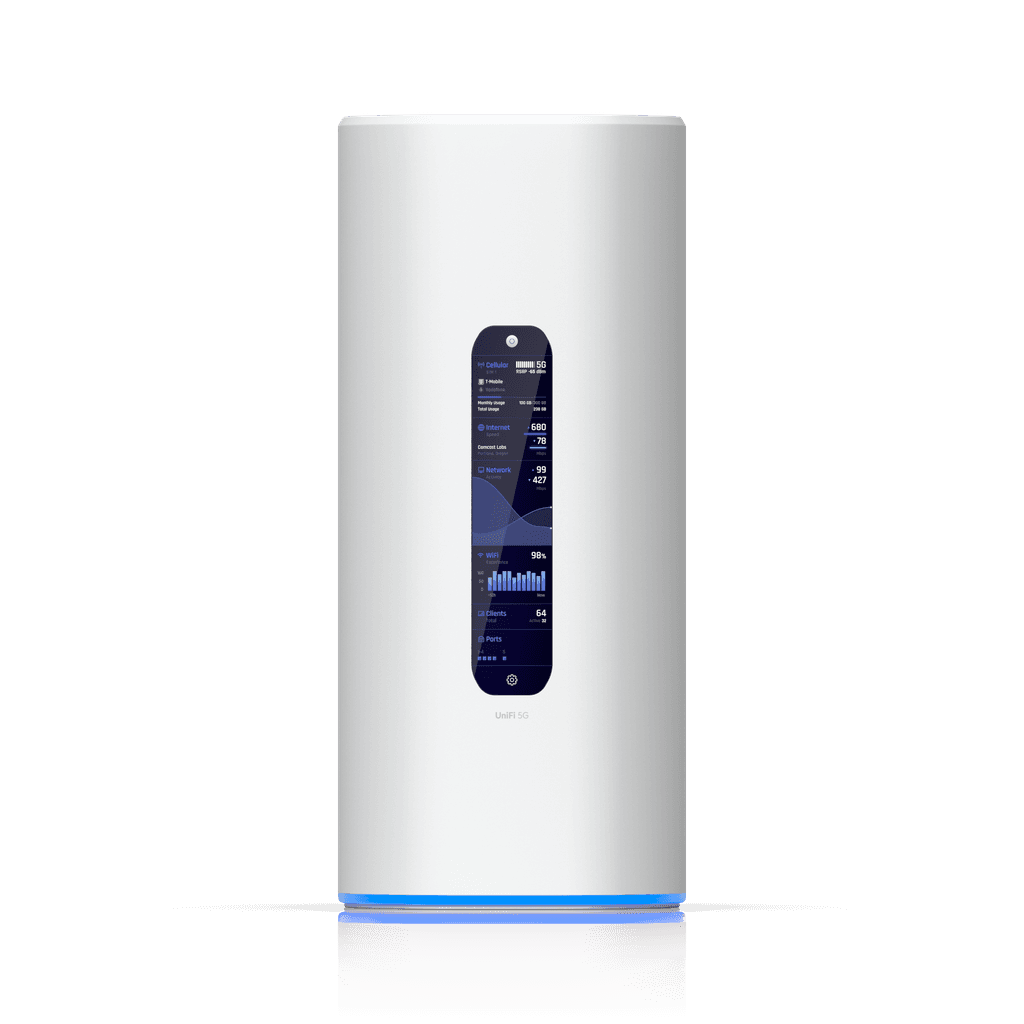

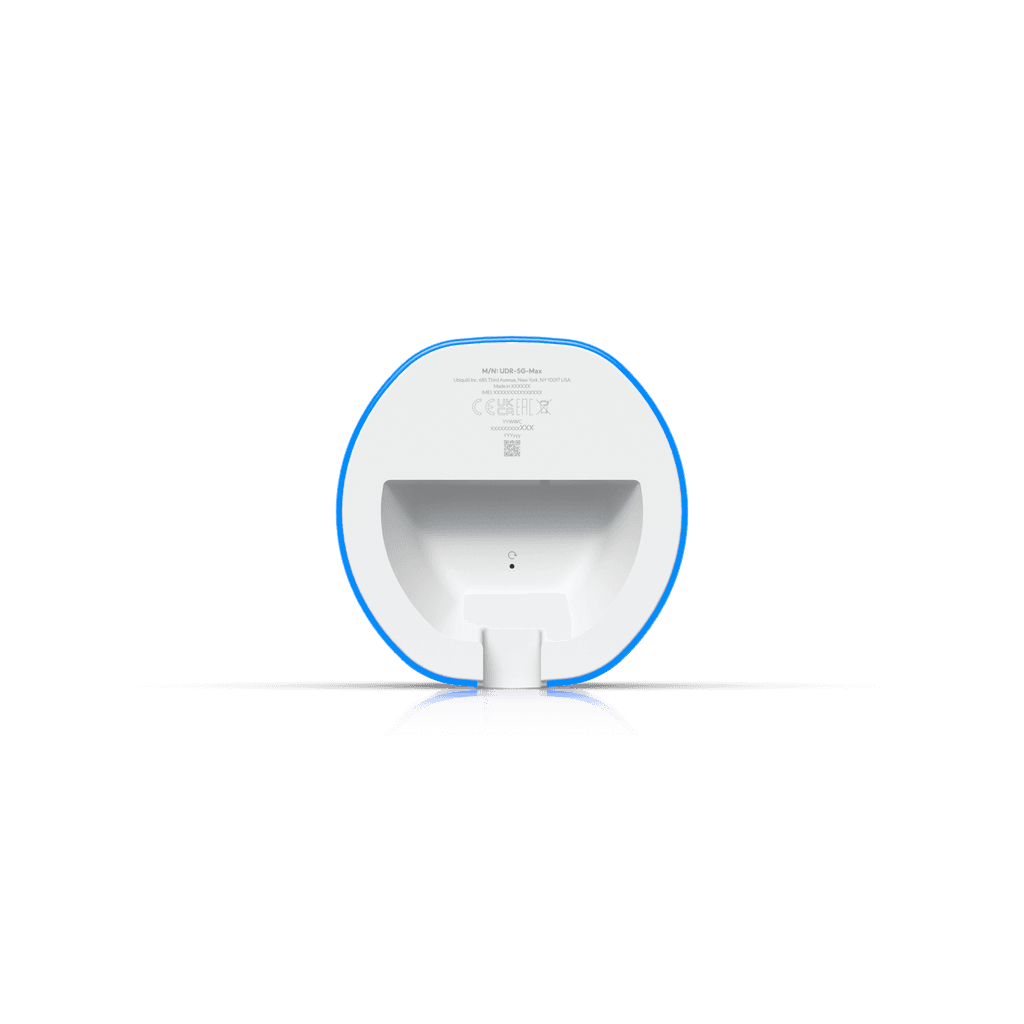

Ubiquiti UniFi Dream Router 5G Max (UDR-5G-MAX) — Authorized Ubiquiti Dealer in Texas
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Certified with AT&T and T-Mobile* (Verizon** coming soon).
*T-Mobile Home Internet SIMs aren’t supported. Data-only plan required.
**Verizon is not supported at this time. Direct SIM/eSIM activation is expected in a future update.
Texas Technology Group has supported businesses in Conroe and across Texas since 2002. We recommend the UniFi Dream Router 5G Max for secure routing, firewall and VPN for a growing office, and for multi-site networks that need centralized management. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 5G
- LTE, UMTS, 5G NR
- Tri Band
- 2.40 GHz ISM Band
- 6 GHz UNII Band
- 729.60 MB/s Wireless Speed
- 3 x Network Port
UniFi Dream Router 5G Max (UDR-5G-MAX) Specifications
| IDS/IPS | 2.3 Gbps |
|---|---|
| Max. Client Count | 300 |
| Overview | |
| Dimensions | 110 x 110 x 250 mm (4.3 x 4.3 x 9.8") |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD (2) 2K (1) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 4 (1 PoE) (2.5G/1G/100M) |
| 10G SFP+ | 1 (10G/1G) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| Security | |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VPN & SD-WAN | |
| Site Magic | 20 |
| WireGuard | 8 |
| OpenVPN | 8 |
| Networking | |
| MAC Address Table Size | 2,000 |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| 6 GHz | 5.7 Gbps |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 8 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 22 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15 , HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Cellular | |
| Category | 5G NR Sub-6 |
| Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| Max. TX Power | HPUE power class 2: 26 dBm |
| Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| Frequency Bands | B1, B2, B4, B5, B8, B19 |
| 5G NSA | Downlink 3.4 Gbps Uplink 560 Mbps (Speed depends on network coverage and performance at the device location) |
| 5G SA | Downlink 1.8 Gbps Uplink 650 Mbps |
| 4G LTE | Downlink 1.6 Gbps Uplink 210 Mbps |
| Antenna Gain | 617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi |
| SIM | (2) Nano SIM (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active) |
| Hardware | |
| NVR Storage | Pre-installed 64 GB microSD for NVR |
| Expansion Slot | MicroSD Card (64 GB pre-installed microSD) |
| PoE Budget | 15.4W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Max. Power Consumption | 34.5W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 115 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.4 kg (3.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 4.7" touchscreen |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance® |
| Software | |
| Mobile App | UniFi iOS™: Version 10.33.0 and later UniFi Android™: Version 10.36.1 and later |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Plano, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Dream Router 5G Max at my business in Conroe?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UDR-5G-MAX covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: WiFi Integrated Gateways.
Additional information
| Weight | 3.1 lbs |
|---|
