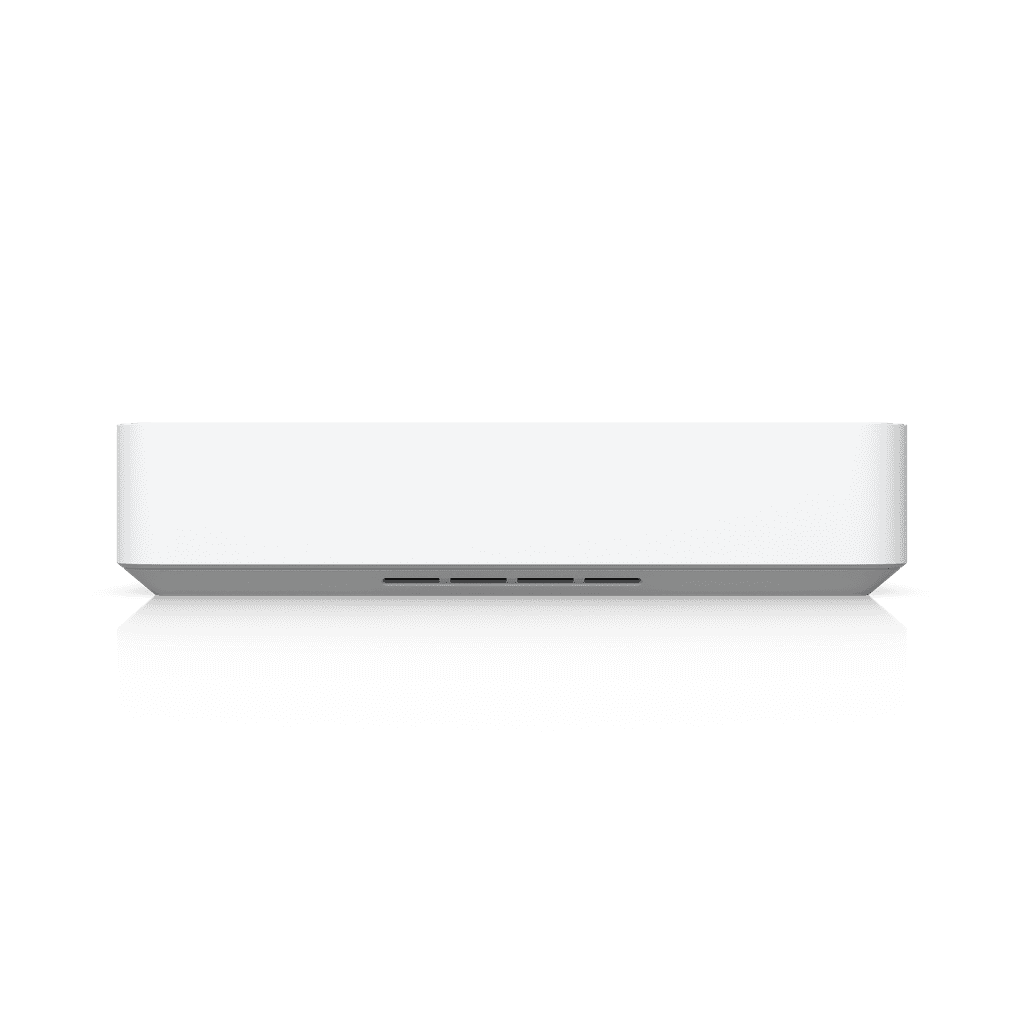

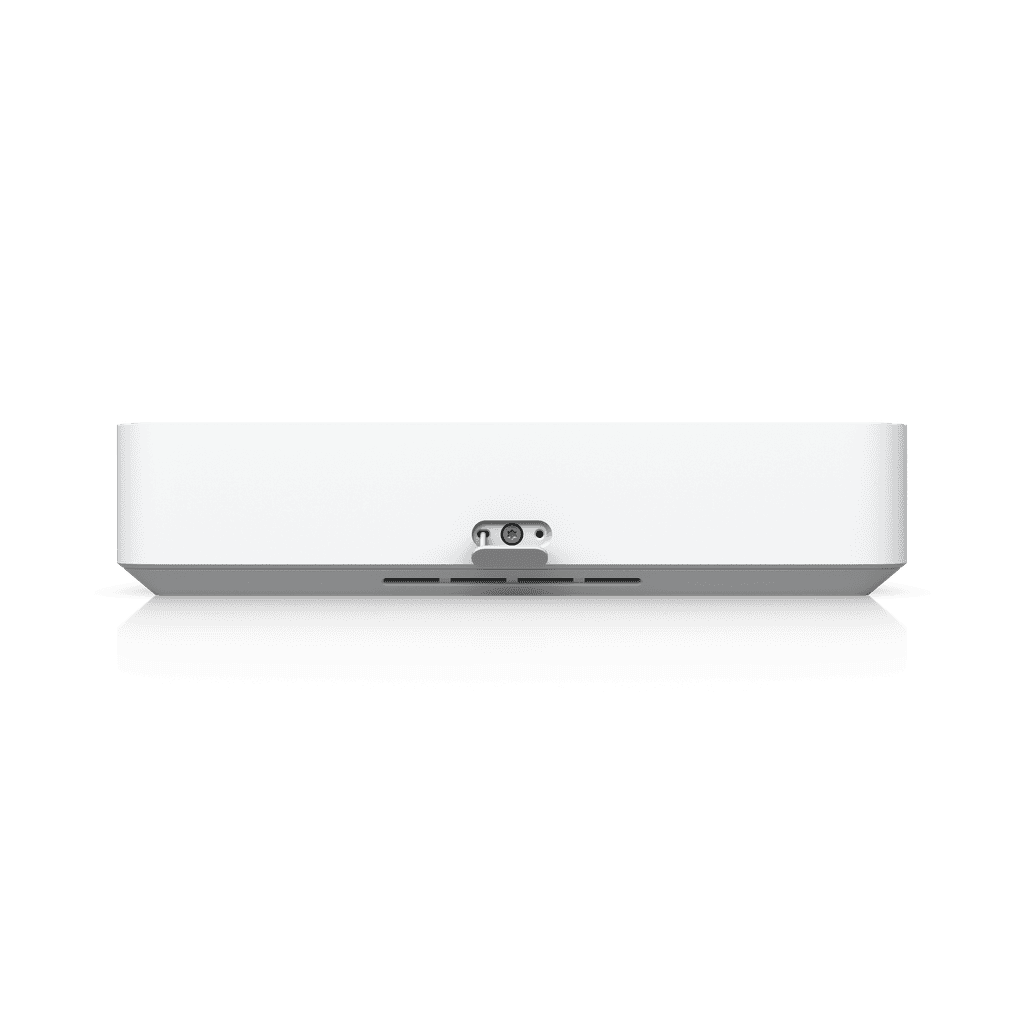

Ubiquiti UniFi Access Network Video Recorder Instant (UNVR-INSTANT) — Authorized Ubiquiti Dealer in Texas
Compact UniFi Protect NVR with 3.5″ HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Texas Technology Group has supported businesses in Round Rock and across Texas since 2002. We recommend the UniFi Access Network Video Recorder Instant for audit trails of who opened which door and when, and for scheduling door unlocks for business hours. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Network Video Recorder
- HDMI
- 4K Recording
- 1.1" Screen
UniFi Access Network Video Recorder Instant (UNVR-INSTANT) Specifications
| Managed Cameras (grid) | 15 HD or 6 4K |
|---|---|
| Ports | 7 GbE + 1 HDMI |
| Storage | 1 3.5" HDD |
| Overview | |
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Max. Simultaneous Viewport Streams | 6 4K cameras |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |
| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hardware | |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W (Excluding PoE output & HDD power consumption) |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356 |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Conroe, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Access Network Video Recorder Instant at my business in Round Rock?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UNVR-INSTANT covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
