$638.99
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
- Model: UA-INTERCOM-VIEWER-3
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

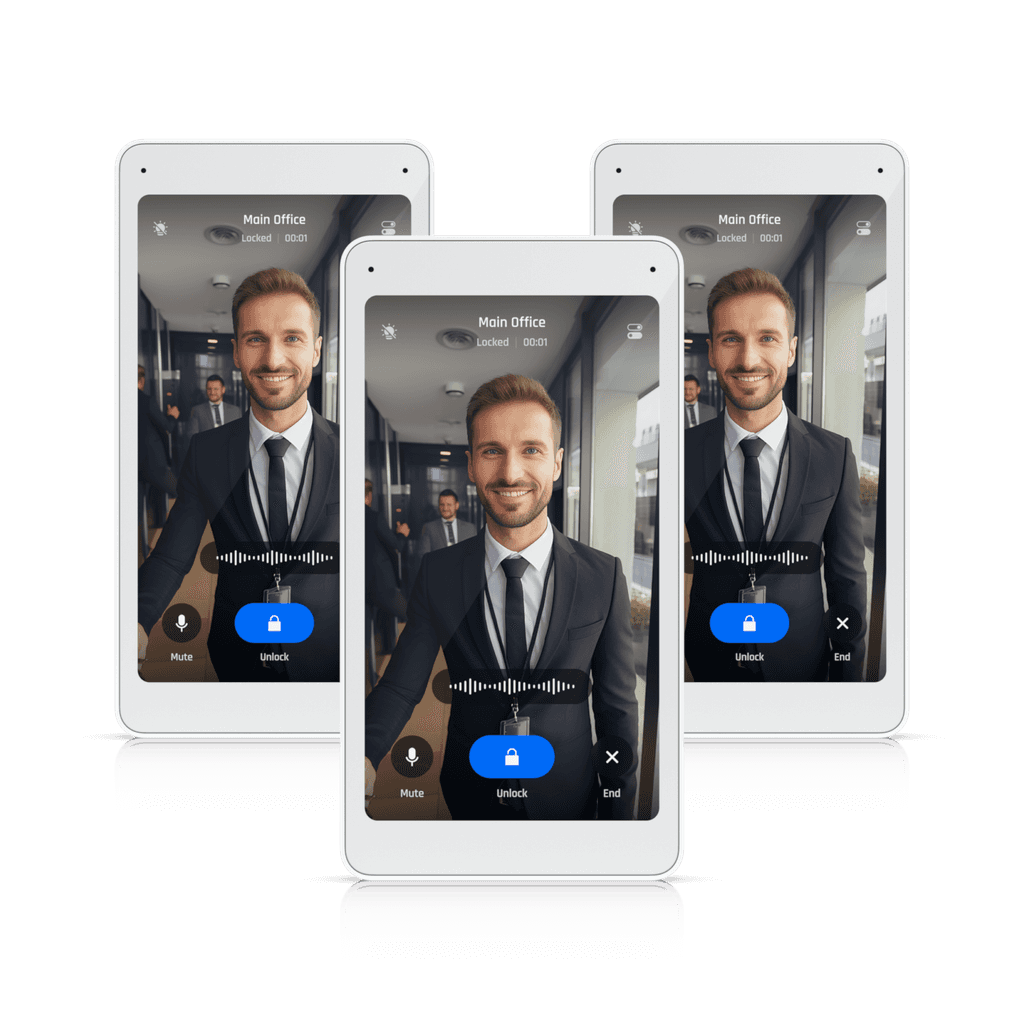

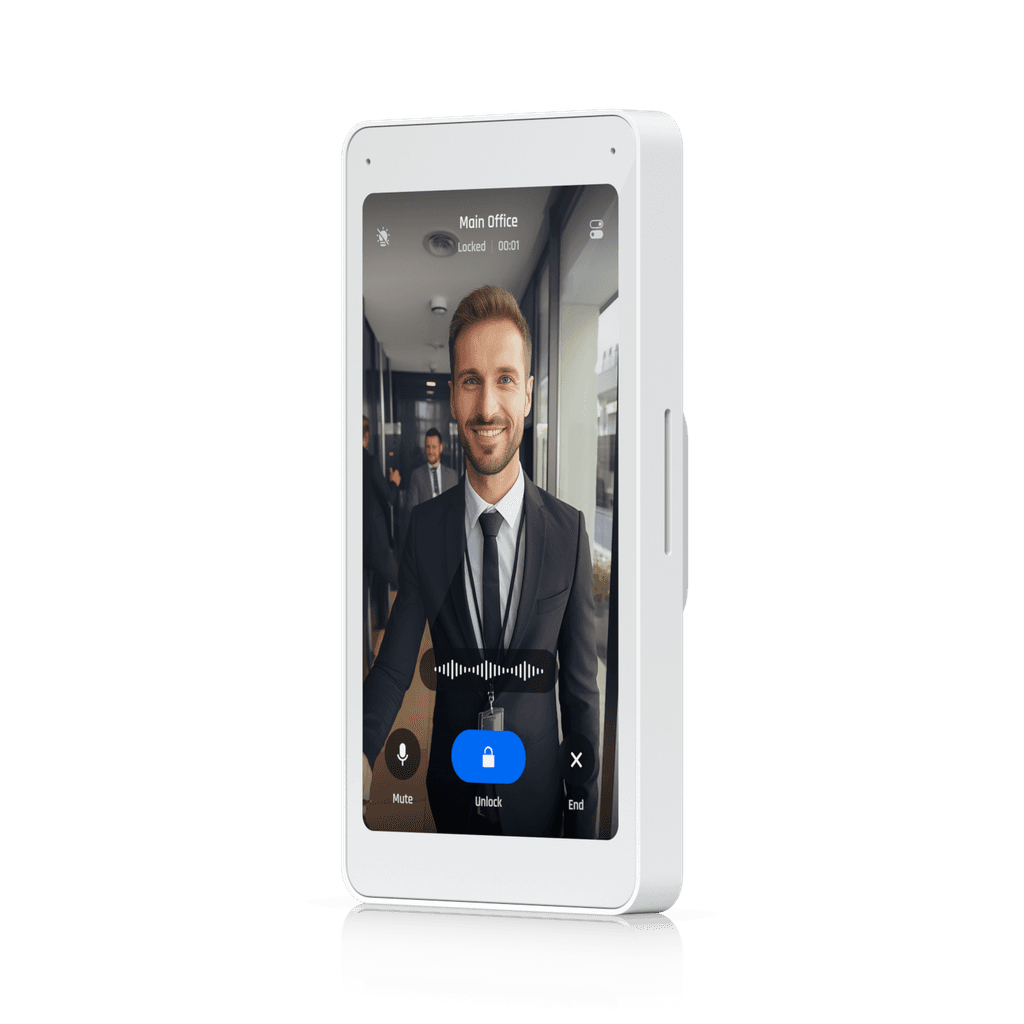

Ubiquiti UniFi Access Access Intercom Viewer (UA-INTERCOM-VIEWER-3) — Authorized Ubiquiti Dealer in Texas
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
Texas Technology Group has supported businesses in San Antonio and across Texas since 2002. We recommend the UniFi Access Access Intercom Viewer for keyless entry for staff with NFC cards and mobile credentials, and for audit trails of who opened which door and when. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- Receives doorbell calls from one or more locations
- Two-way audio
- Instant live view
- 5" touch display
- Connect and power using a PoE switch
UniFi Access Access Intercom Viewer (UA-INTERCOM-VIEWER-3) Specifications
| Display | Touch display |
|---|---|
| Livestream | Live View |
| Sound | Two-Way Audio |
| Overview | |
| Dimensions | 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3") |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Mechanical | |
| Weight | 168 g (5.9 oz) |
| Enclosure Material | Glass, polycarbonate |
| Mount Material | Aluminum alloy |
| Mounting | Wall (Included) Gang box mount (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Indoor only |
| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Connectivity | Ethernet |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| Size | 127 mm (5") diagonal |
| Luminance | 300 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1280 x 720 px |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Intercom-Viewer, V01 |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving El Paso, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi Access Access Intercom Viewer at my business in San Antonio?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the UA-INTERCOM-VIEWER-3 covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Intercoms.
Additional information
| Weight | 1.80 lbs |
|---|
