$440.99
A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM, and dual SIM for seamless failover.
- Model: U5G-MAX-OUTDOOR
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

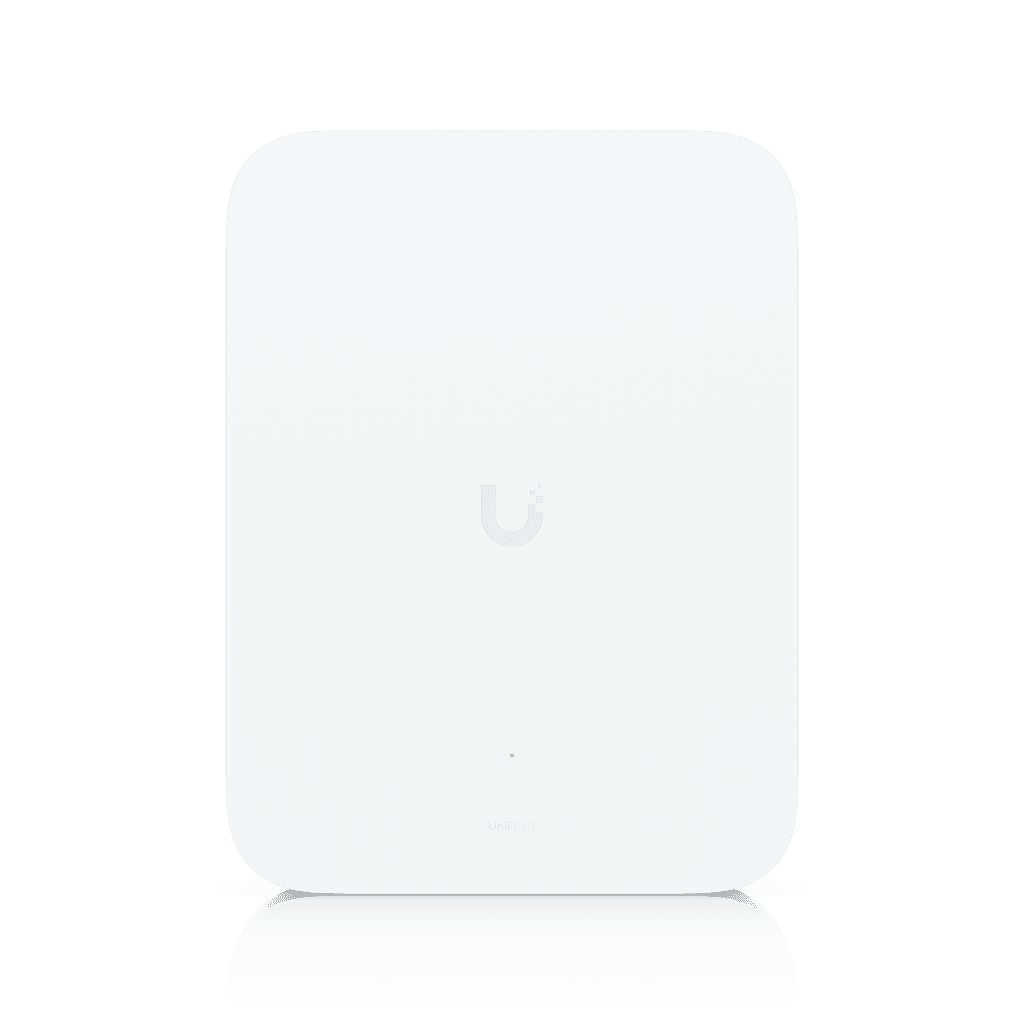

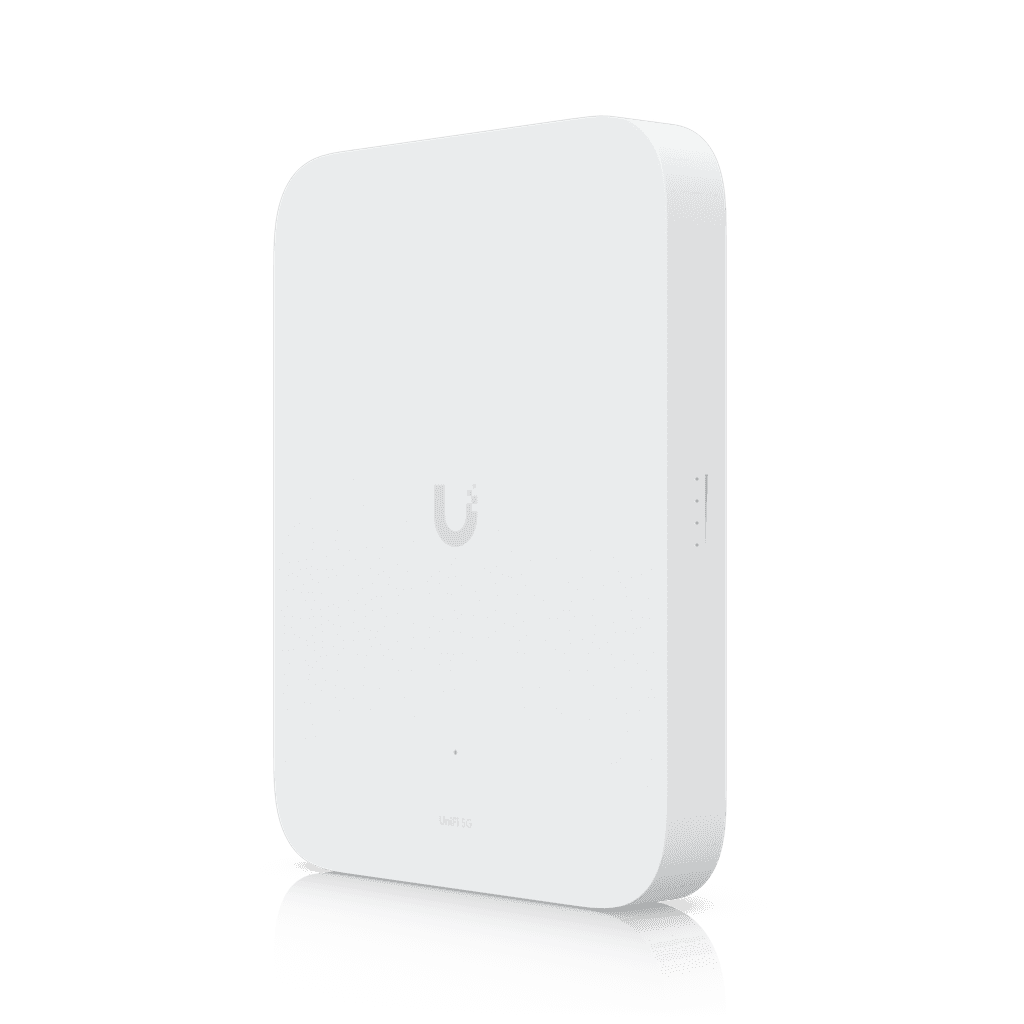

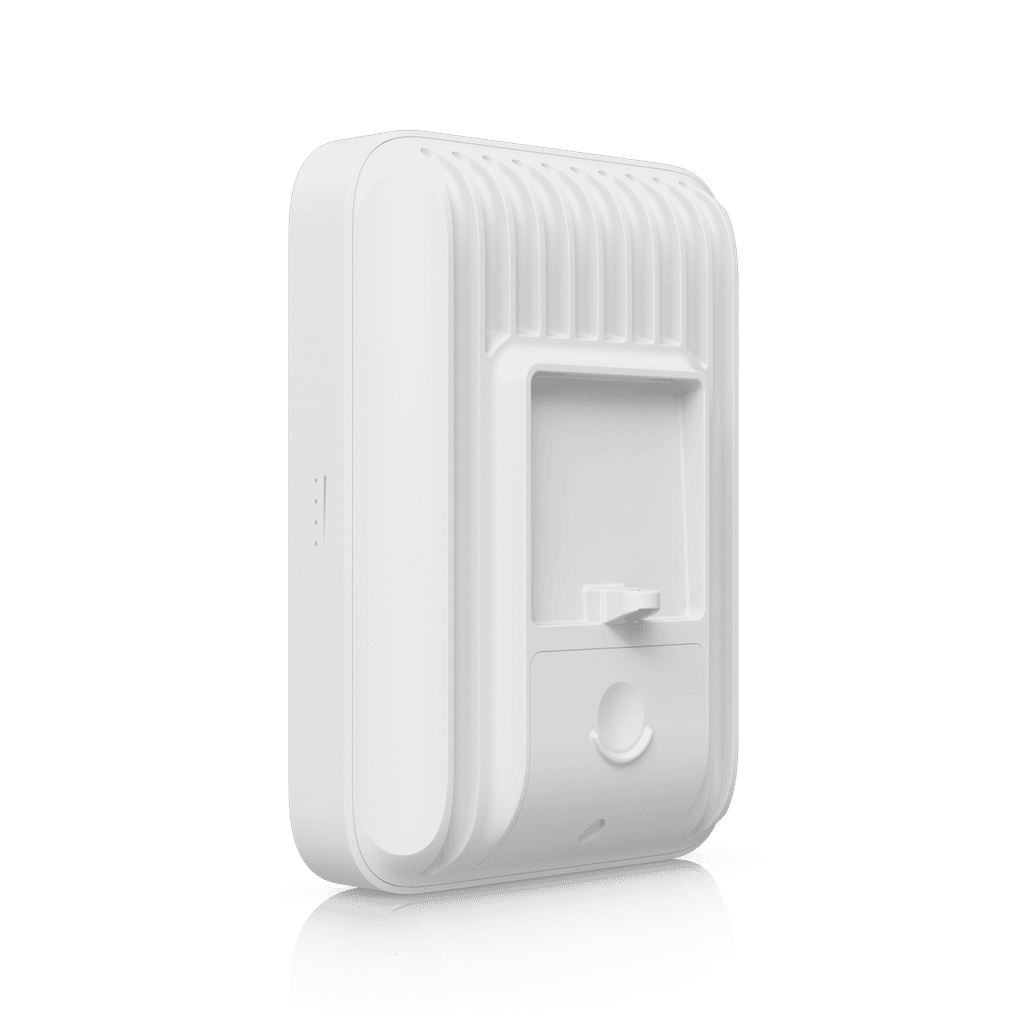

Ubiquiti UniFi 5G Max Outdoor (U5G-MAX-OUTDOOR) — Authorized Ubiquiti Dealer in Texas
A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM*, and dual SIM for seamless failover. Certified with AT&T and T-Mobile** (Verizon*** coming soon).
*Remote SIM coming in a future update.
**T-Mobile Home Internet SIMs aren’t supported. Data-only plan required.
***Certified for Verizon Business fixed 5G / gateway data plans.
Texas Technology Group has supported businesses in Katy and across Texas since 2002. We recommend the UniFi 5G Max Outdoor for centralizing building systems in one UniFi console, and for business continuity with automatic failover. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
UniFi 5G Max Outdoor (U5G-MAX-OUTDOOR) Specifications
| Overview | |
|---|---|
| Dimensions | Device: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6") With mount: 220 x 165 x 122 mm (8.7 x 6.5 x 4.8") |
| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |
| SIM | (1) Nano SIM (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active.) |
| PoE Interface | (1) PoE input |
| Mounting | Pole mount, wall mount (Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Mechanical | |
| Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (4.6 oz) |
| Enclosure Material | Aluminum-alloy, UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) on pipe outer diameter |
| Wind Loading | 91N at 200 km/h (20.45 lbf at 125 mph) |
| Hardware | |
| Management | Ethernet |
| Category | 5G NR |
| Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
| Max. TX Power | HPUE power class 2: 26 dBm |
| Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| Frequency Bands | B1, B2, B4, B5, B8, B19 |
| 5G NSA | Downlink 3.4 Gbps Uplink 560 Mbps (Speed depends on network coverage and performance at the device location.) |
| 5G SA | Downlink 1.8 Gbps Uplink 650 Mbps |
| 4G LTE | Downlink 1.6 Gbps Uplink 210 Mbps |
| Type | (6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85° |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Sugar Land, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the UniFi 5G Max Outdoor at my business in Katy?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the U5G-MAX-OUTDOOR covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: Internet & LTE Backup.
Additional information
| Weight | 4.40 lbs |
|---|
