$520.99
5 GHz, 25 dBi bridge with 150+ Mbps throughput.
- Model: PBE-M5-400
- Authorized Ubiquiti dealer — full US warranty
- Professional installation available across Texas
- Questions? Call or text (713) 824-1035
Available on backorder
Description

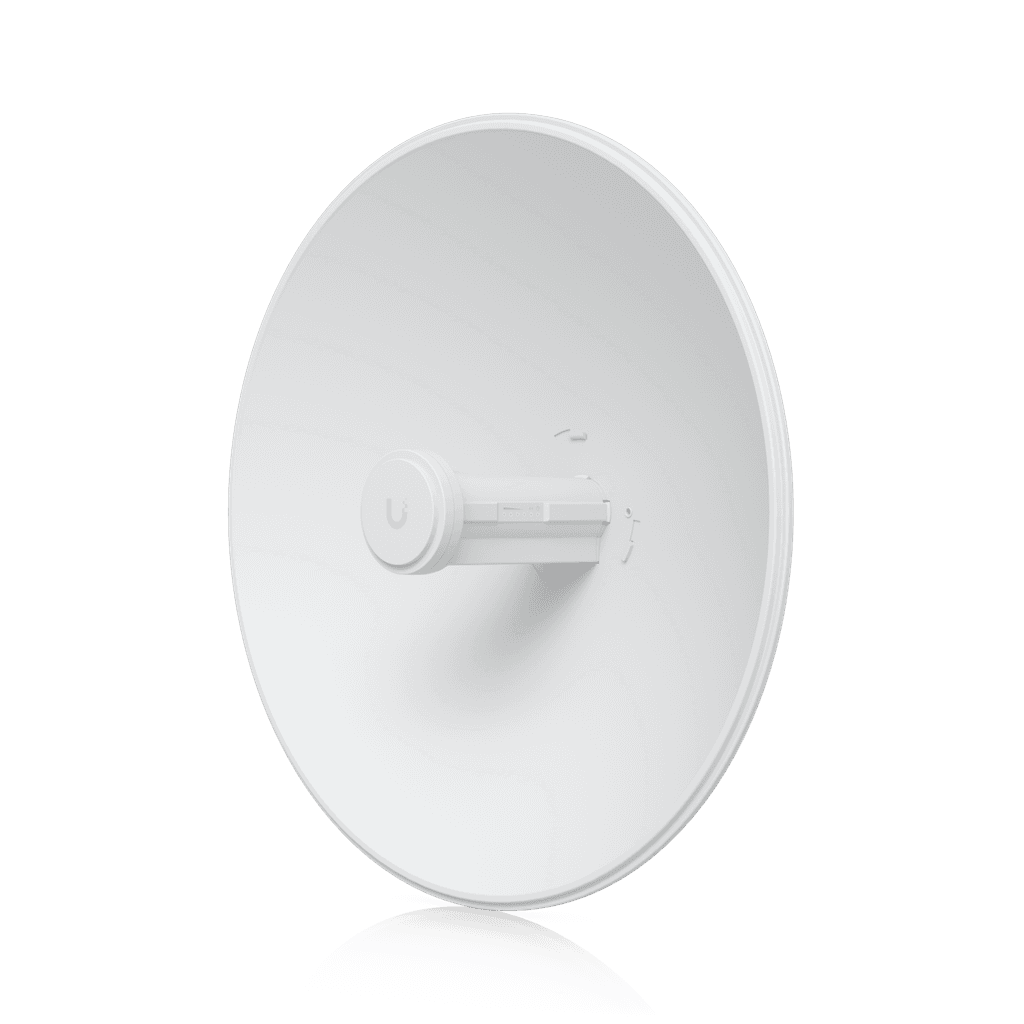

Ubiquiti airMAX PowerBeam M5 400 mm Bridge (PBE-M5-400) — Authorized Ubiquiti Dealer in Texas
5 GHz, 25 dBi bridge with 150+ Mbps throughput.
Texas Technology Group has supported businesses in Pearland and across Texas since 2002. We recommend the airMAX PowerBeam M5 400 mm Bridge for point-to-point links between campus buildings, and for rural internet distribution across Texas. Buy it on its own, or let our team handle design, installation, configuration and ongoing management as part of a TTG managed network.
Key Features
- 5 GHz, 25+ km link range
- 150+ Mbps throughput
- Improved mounting
airMAX PowerBeam M5 400 mm Bridge (PBE-M5-400) Specifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 275 mm (16.5 x 16.5 x 10.8") |
| Weight | 1.8 kg (4 lb) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) |
| Wind Loading | 342.5 N @ 200 km/h (77 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (Pairs 4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 8W |
| Max. TX Power | 26 dBm |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS, Anatel: 01692-15-08356 |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| System | |
| Antenna Gain | 25 dBi |
| Radio Frequency | |
| Worldwide | 5170 – 5875 MHz |
| US/CA | 5725 – 5850 MHz |
Why Buy Ubiquiti from Texas Technology Group?
- Authorized Ubiquiti reseller — genuine products with full US manufacturer warranty.
- Texas-based experts — Houston headquarters serving Sugar Land, Dallas–Fort Worth, Austin, San Antonio and statewide.
- Design, install & manage — site surveys, cabling, configuration and ongoing managed IT support.
- Business & volume pricing — quotes for multi-site and project deployments.
Frequently Asked Questions
Can TTG install the airMAX PowerBeam M5 400 mm Bridge at my business in Pearland?
Yes. Our technicians install and configure Ubiquiti equipment throughout Texas. Call or text (713) 824-1035 to schedule.
Is the PBE-M5-400 covered by warranty?
Yes. Texas Technology Group is an authorized Ubiquiti dealer, so every product ships new with the standard Ubiquiti manufacturer warranty. UI Care extended coverage is available for many models.
Do you offer project or volume pricing?
Yes — contact us at (713) 824-1035 for multi-unit, multi-site or full-deployment quotes.
Browse more: airMAX.
Additional information
| Weight | 1.20 lbs |
|---|
